RS PRO Thermocouple Connector for Use with Type E Thermocouple, RoHS Compliant, ANSI Standard 769-1120

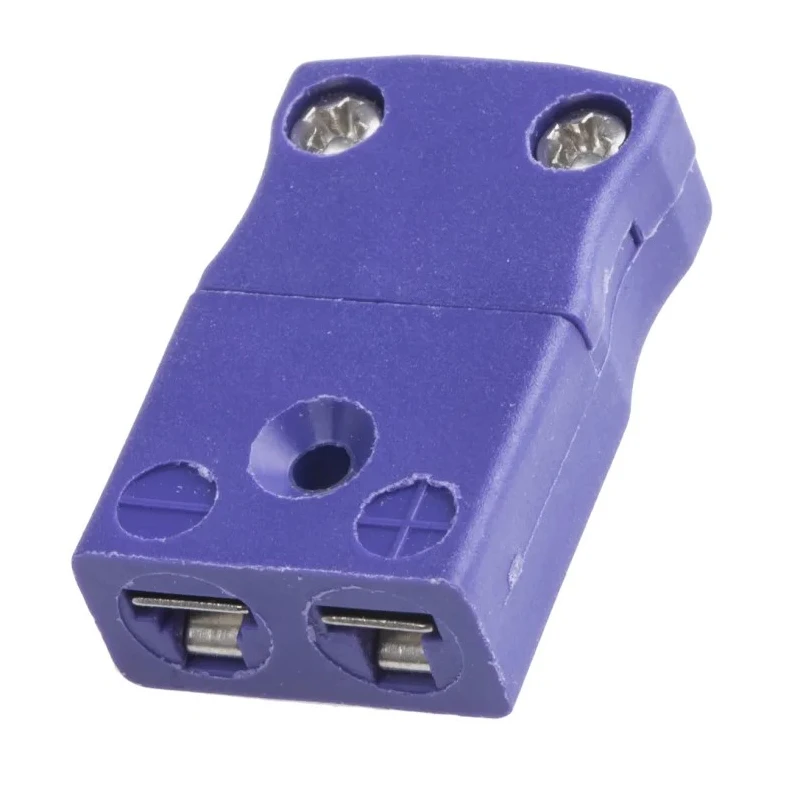

RS PRO 769-1120 Thermocouple Connector for Use with Type E Thermocouple is a miniature in-line socket connector designed in compliance with ANSI and RoHS standards. This connector provides a quick, safe, and reliable interface for connecting thermocouple probes to extension or compensating cables, ensuring material consistency for accurate temperature readings and minimal signal interference.

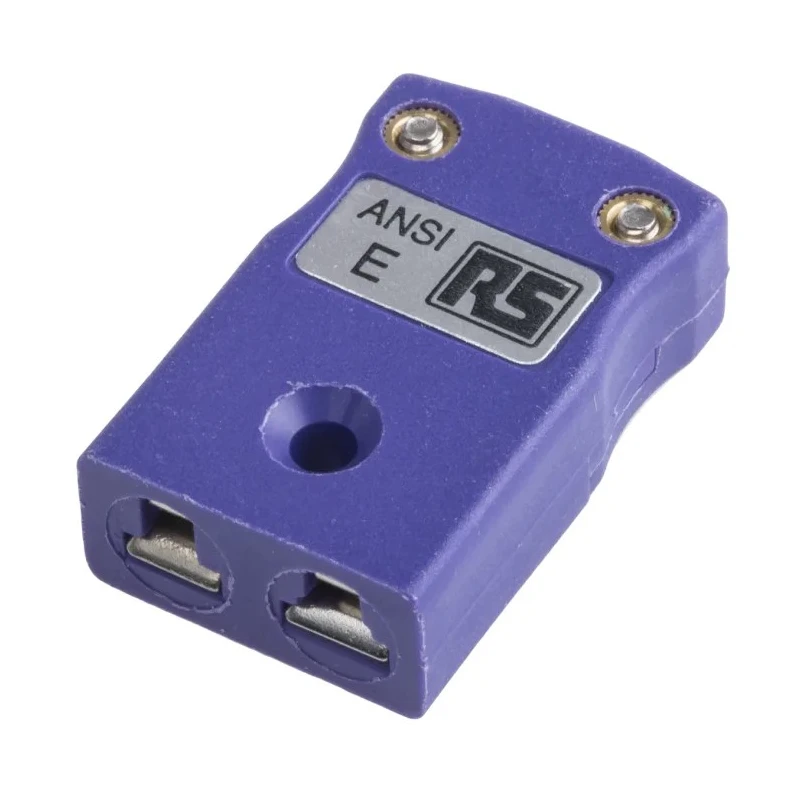

The housing is made from a rugged glass-filled thermoplastic material that is impact-resistant and can tolerate high operating temperatures up to 220°C. The female socket features polarised flat pin contacts made from true thermocouple alloys or compensating materials, guaranteeing precise signal transfer. The connector is colour-coded according to ANSI standards with the thermocouple type clearly printed on the front for easy identification.

Thermocouple wires, whether stranded or solid, up to 4mm in diameter, can be securely fastened using the captive screw clamps, enabling rapid assembly or replacement. This connector is particularly useful in industrial, laboratory, HVAC, manufacturing, and automation settings where accurate temperature measurement and robust connections are critical.

Applications for this miniature thermocouple socket include installation, extension, or replacement of Type E thermocouples. Its durable construction and reliable contact design make it suitable for demanding environments requiring precise temperature monitoring.

Contacts made from true thermocouple alloys or compensating materials for accurate signal transmission. ANSI colour coded housing for fast and error-free identification. Impact-resistant, rugged glass-filled thermoplastic housing capable of withstanding temperatures up to 220°C.

Accepts stranded or solid thermocouple wires up to 4mm diameter with captive screw clamp connection. Compatible with Type E thermocouples ensuring material consistency to prevent signal distortion. Polarised flat pin contacts ensure accurate and secure mating.

Ideal for extending or replacing thermocouple probes in industrial, automation, and temperature measurement applications. Explore EnvMart categories for more RS PRO sensor accessories and Thermocouple Connectors to meet your industrial instrumentation requirements.
