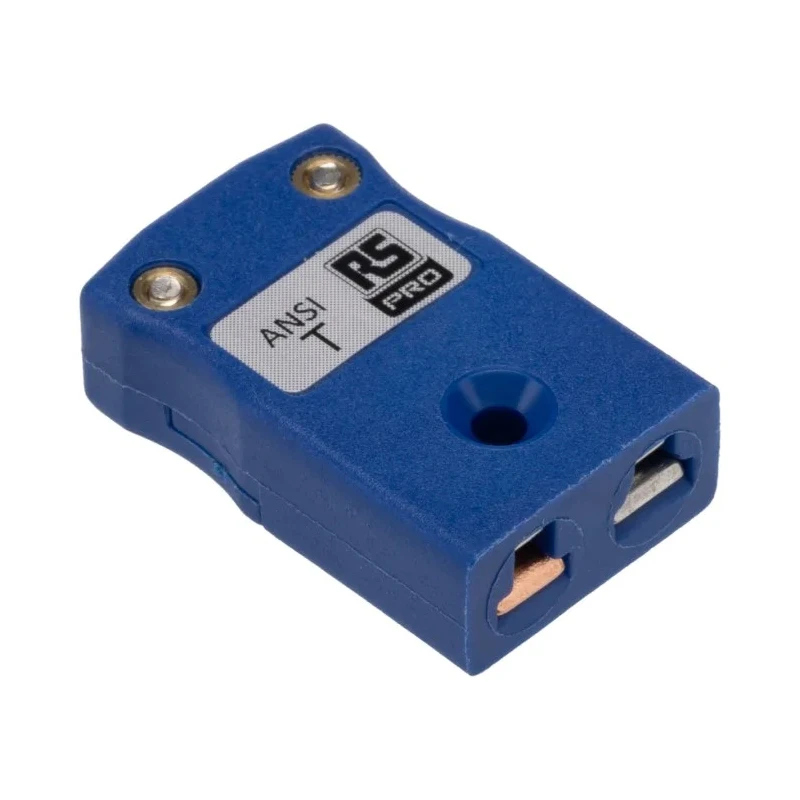

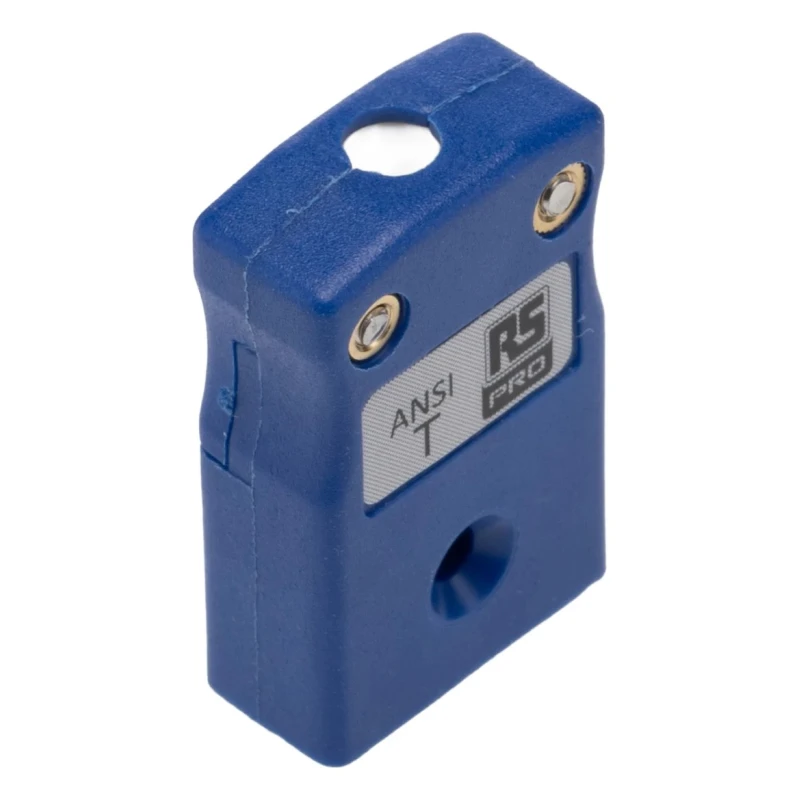

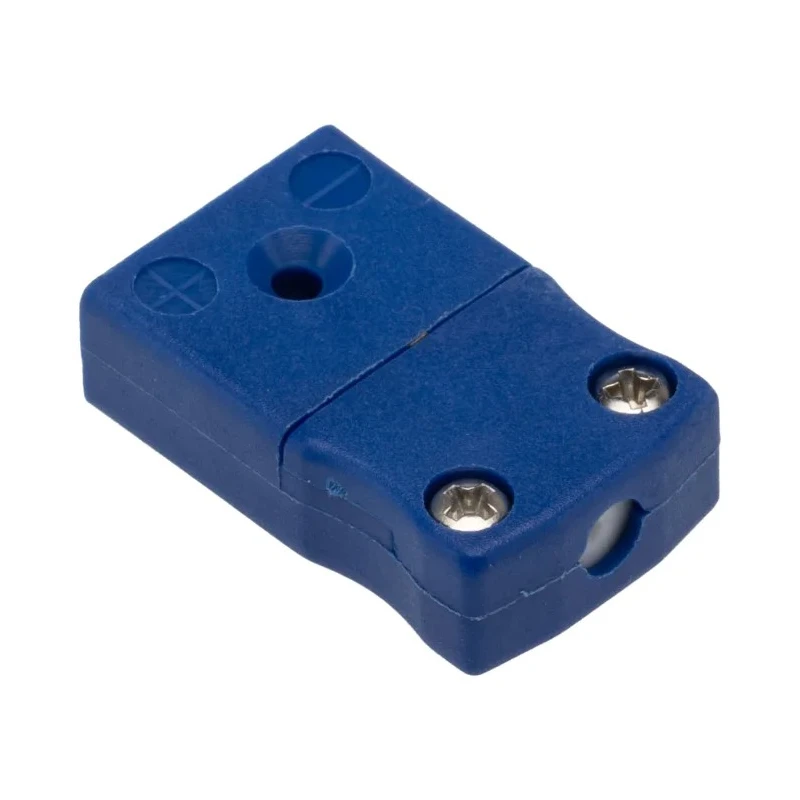

RS PRO Thermocouple Connector for Use with Type T Thermocouple, RoHS Compliant, ANSI Standard 769-1133

RS PRO 769-1133 thermocouple connector is a high-quality accessory designed to interface with Type T thermocouple sensors. Manufactured in compliance with RoHS standards and ANSI specifications, this connector provides a reliable and precise connection for temperature measurement systems operating in industrial, laboratory, HVAC, and manufacturing environments.

The connector features contacts made from true thermocouple alloys or compensating material to ensure the integrity of the temperature signal without distortion. The housing is constructed from a tough glass-filled thermoplastic material that offers excellent impact resistance and can withstand elevated temperatures up to 220°C, making it suitable for demanding application conditions.

The connector is colour coded in accordance with ANSI standards and clearly displays the thermocouple type on the front, facilitating easy identification. It accepts flat, polarized pin contacts to guarantee accurate and positive mating, and is compatible with thermocouple cable diameters up to 4mm, supporting both stranded and solid wires.

Assembly is made straightforward and error-free via captive screw clamps that secure the thermocouple wires firmly in place. The polarity and thermocouple type are clearly marked on the housing to prevent connection mistakes, enabling quick replacement or extension of existing thermocouple sensor lines.

Contacts made from true thermocouple alloys ensuring precise signal transmission. ANSI colour coding for quick and accurate thermocouple type identification. Durable glass-filled thermoplastic housing resistant to impact and high temperatures up to 220°C.

Polarized flat pin contacts for secure and accurate electrical connections. Compatible with stranded or solid thermocouple wires up to 4mm diameter. Captive screw clamps for simple and fast wire termination. Clearly marked polarity and thermocouple type to prevent wiring errors.

Ideal for use in industrial, laboratory, HVAC, and manufacturing temperature measurement applications.

This miniature Thermocouple Connector is essential for forming accurate and reliable connections between your temperature sensing probes and extension or compensating cables. Its robust construction and ANSI compliance make it suitable for replacing thermocouples in harsh environments, ensuring signal fidelity and operational reliability.
