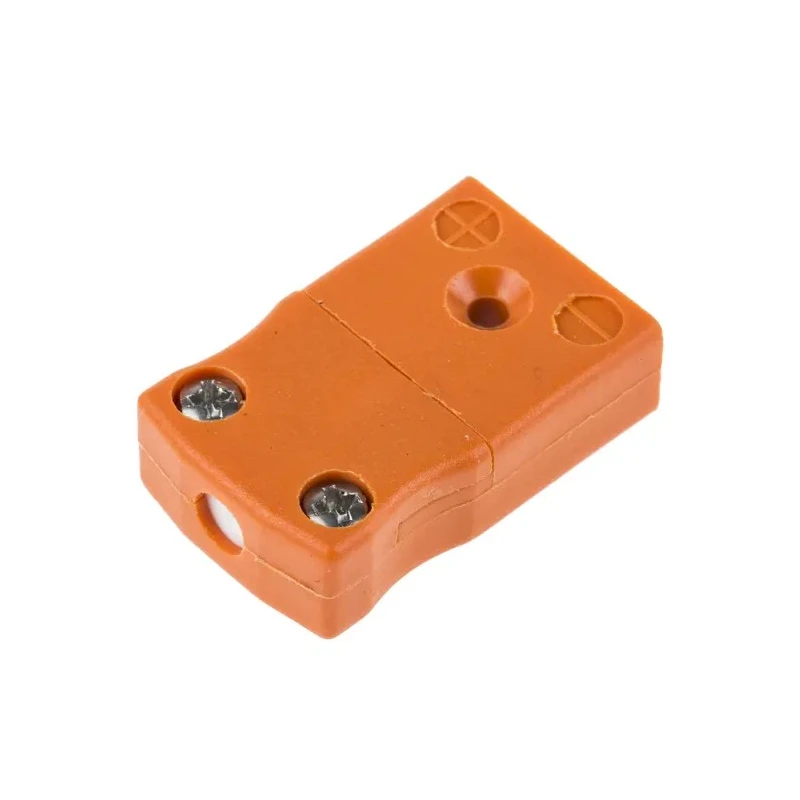

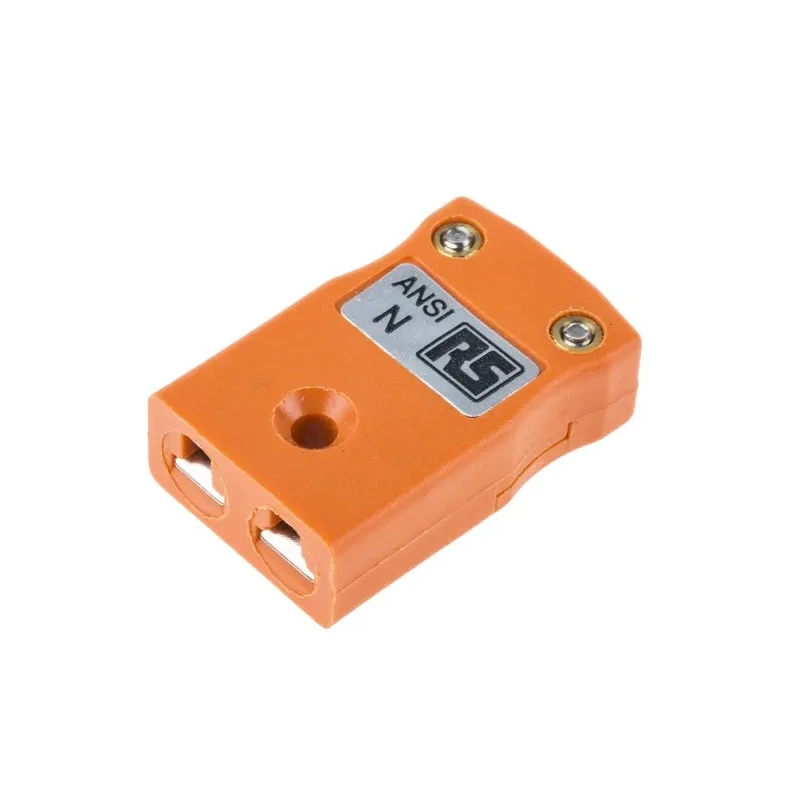

RS PRO Thermocouple Connector for Use with Type N Thermocouple RoHS Compliant ANSI Standard 769-1136

RS PRO 769-1136 is a high-quality thermocouple connector designed specifically for use with Type N thermocouples, ensuring accurate temperature measurement and signal integrity in industrial and laboratory applications. The connector is compliant with RoHS directives and ANSI standards for performance and safety.

This miniature in-line thermocouple socket connector utilizes contacts manufactured from true thermocouple alloys or compensating materials, offering precise signal transmission without distortion. The rugged housing is constructed from glass-filled thermoplastic, resistant to impact and capable of withstanding temperatures up to 220°C, making it suitable for demanding environments.

The connector accepts flat polarized pins to guarantee accurate connections with clear polarity. It accommodates thermocouple cables up to 4mm in diameter and is suitable for both stranded and solid wires. Assembly involves captive screw clamps that securely fasten the wires, enabling quick installation and maintenance.

The ANSI color-coded housing simplifies identification and reduces connection errors, with the thermocouple type prominently displayed on the front. These connectors are ideal for applications that require extending, installing, or replacing thermocouples in industrial automation, process control, HVAC, manufacturing, and scientific instrumentation.

Contacts made from genuine thermocouple alloys for precision. ANSI color coding for fast identification. High temperature resistant glass-filled thermoplastic housing. Flat polarized pin acceptance ensures accurate connections.

Compatible with stranded or solid wires up to 4mm diameter. Simple captive screw clamp for easy assembly. Clear polarity and thermocouple type marking on housing.

This reliable thermocouple connector supports critical temperature sensing chains, maintaining signal accuracy from probe to measuring devices in industrial and laboratory environments. Suitable for professional engineers and technicians working with temperature sensors and control instrumentation.
