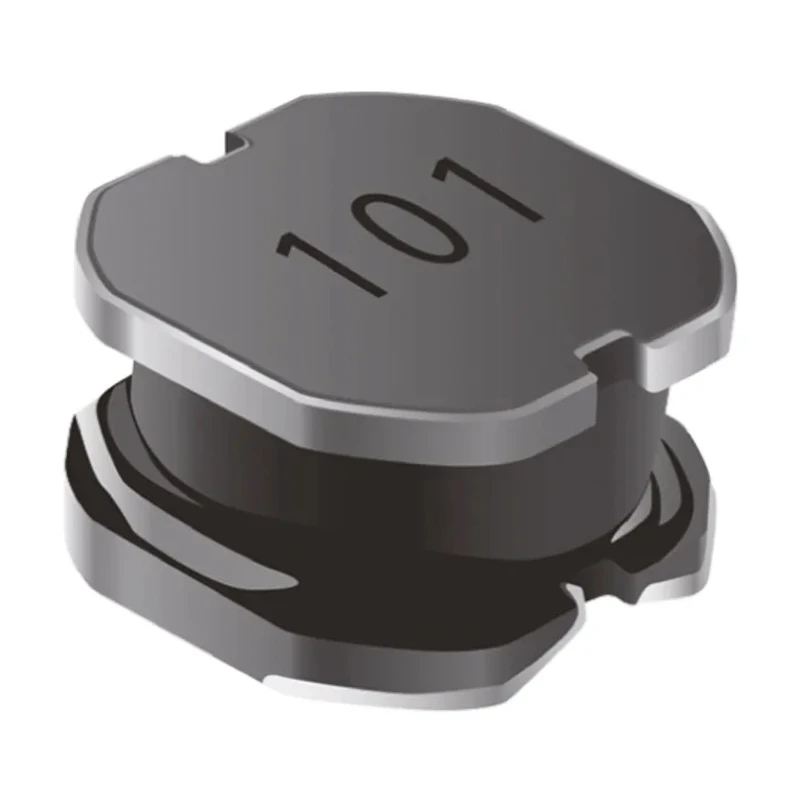

Bourns Shielded Wirewound Surface Mount Inductor, Ferrite Core, 22 μH ±20%, 3.4 A DC Current, 1060 Package SRN1060

Bourns SRN1060 shielded wirewound surface mount inductor features a ferrite core and is designed for high performance in electronic and power applications. With an inductance of 22 μH ±20% and a maximum DC current rating of 3.4 A, it supports demanding circuit requirements.

The compact 1060 package measures 9.8 mm in length, 6 mm in height, and 10 mm in depth, making it ideal for space-constrained layouts. The product is solder-terminated for secure mounting and electrical connection.

Constructed with semi-magnetic shielding, this inductor reduces electromagnetic interference, improving circuit stability. The ferrite core ensures reliable inductance stability and low core losses across a wide temperature range from -40°C to 125°C.

With a maximum DC resistance of 53 mΩ, the inductor minimizes power losses, while its maximum self-resonant frequency of 8 MHz and minimum quality factor of 20 provide efficient performance in power conversion and filtering applications.

This RoHS-compliant inductor is suitable for industrial, electronics manufacturing, telecommunications, power supply design, and other commercial uses where quality and reliability are essential.

Semi magnetically shielded wirewound construction reduces EMI. Compact 1060 package size fits tight PCB layouts. Ferrite core provides stable inductance and low losses. Solder termination for secure mechanical and electrical connection.

Wide operating temperature range from -40°C to 125°C. Low DC resistance of 53 mΩ for efficient operation. High self-resonant frequency of 8 MHz supports filtering applications. Minimum quality factor of 20 enhances energy efficiency.

Compliance with RoHS environmental standards.

This Bourns inductor is ideal for use in DC/DC converters, notebook computers, digital video cameras, televisions, and LCD displays. The product is part of the SRN1060 series known for miniature, semi-shielded power inductors that combine size efficiency with high performance.
