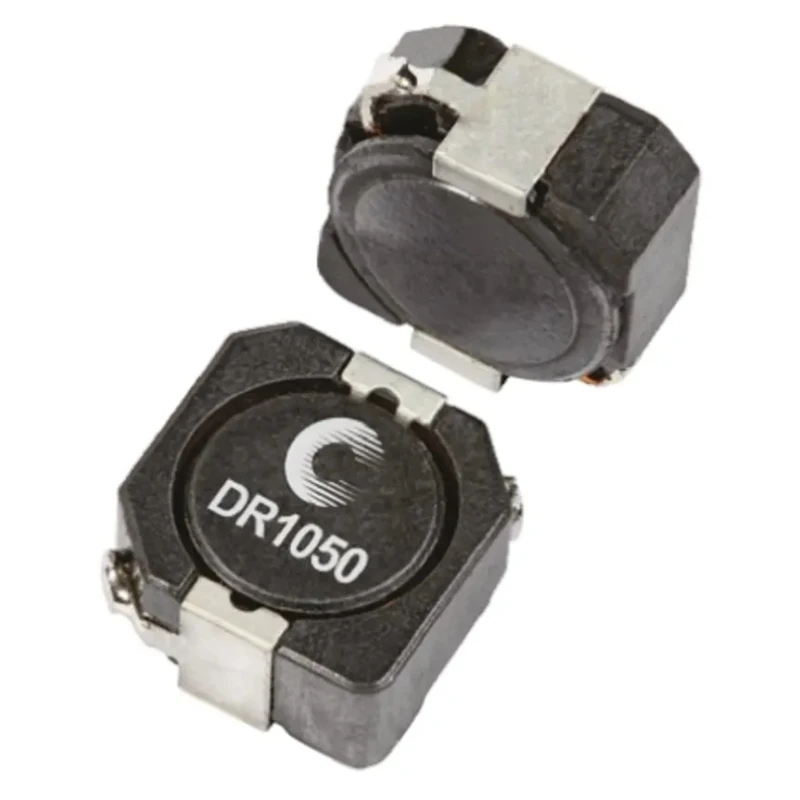

Eaton 1050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 18 μH ±30% 3.39 A IDC DR1050

Free Delivery in India | Lowest Global Shipping Charges

Eaton 1050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 18 μH ±30% 3.39 A IDC DR1050

Name: Eaton 1050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 18 μH ±30% 3.39 A IDC DR1050
Brand: Eaton
SKU: 367426
Price: 1.22 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	5mm
Length	10.5mm
Model	DR1050
Depth	10.3mm
Packaging	Reel
Series	DR1050
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	18μH
Standards/Approvals	RoHS
Package/Case	1050
Maximum DC Current	3.39A
Pin Count	2
Maximum DC Resistance	41mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1MHz
Inductor Construction	Wirewound

Key Features

Low profile design with dimensions 10.3mm depth, 10.5mm length, and 5mm height.
Magnetically shielded wire wound choke ideal for noise filtering and power conversion.
Maximum operating temperature is 125°C, suitable for demanding industrial environments.
RoHS compliant with ferrite core construction and moulded package for durability.
Reel packaging facilitates efficient automated assembly in manufacturing.
High maximum self-resonant frequency of 1 MHz ensures stable operation in DC-DC converters.
Termination style is surface mount for easy PCB integration.
Pin count is 2, compatible with standard surface mount footprints.

Product Description

Eaton DR1050 shielded wirewound Surface Mount Inductor with ferrite core offers a reliable and efficient solution for electronic circuits requiring noise suppression and power regulation. This inductor features an 18 μH inductance value with a ±30% tolerance, suitable for a range of power electronic applications including DC-DC converters, buck, boost, forward, and resonant converters.

The compact dimensions of 10.3mm depth, 10.5mm length, and 5mm height fit low-profile designs while maintaining a robust ferrite core construction that ensures magnetic shielding and excellent inductive performance. Its maximum current rating of 3.39 A IDC and maximum operating temperature of 125°C make it ideal for high-stress industrial and commercial equipment.

This RoHS compliant component comes in a moulded package with surface mount termination style and a pin count of 2, enabling easy placement on standard PCBs. The reel packaging supports automated manufacturing processes, increasing efficiency in assembly lines.

The high self-resonant frequency of 1 MHz allows stable function in applications up to this frequency limit, making it compatible with modern power electronics requiring fast switching and filtering capabilities. Its low DC resistance of 41 milliohms reduces energy losses and enhances performance.

Designed and manufactured in China, the Eaton DR1050 series inductors are an excellent choice for use in computer systems, DVD players, portable power devices, notebooks, LCD panels, and filtering circuits, especially where space constraints and performance are critical.

Low profile surface mount design for compact electronic assemblies. Ferrite core for effective magnetic shielding and inductance stability. Wide operating temperature range from -40°C to 125°C for reliability. Reel packaging for enhanced production line efficiency and automation.

Complies with RoHS standards ensuring environmental safety. Suitable for industrial, laboratory, and commercial electronic applications. Explore more advanced passive components in the Electronics & Electricals category at EnvMart for your professional and industrial needs.
