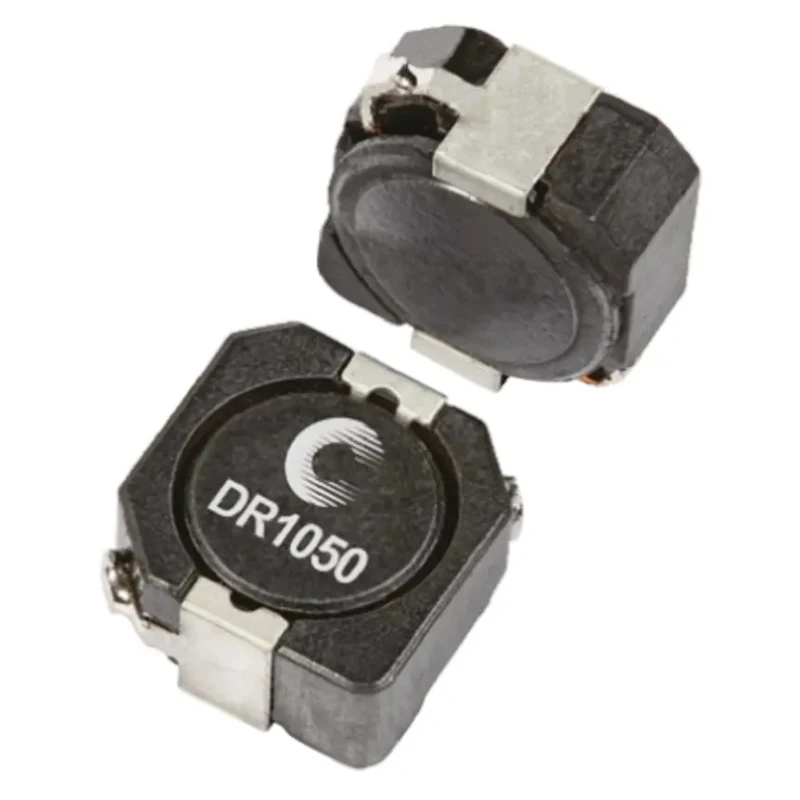

Eaton Wirewound Surface Mount Inductor 15 μH ±30% 3.8 A Idc Ferrite Core DR1050

Free Delivery in India | Lowest Global Shipping Charges

Eaton Wirewound Surface Mount Inductor 15 μH ±30% 3.8 A Idc Ferrite Core DR1050

Name: Eaton Wirewound Surface Mount Inductor 15 μH ±30% 3.8 A Idc Ferrite Core DR1050
Brand: Eaton
SKU: 367425
Price: 1.22 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	5mm
Length	10.5mm
Model	DR1050
Depth	10.3mm
Packaging	Reel
Series	DR1050
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	15μH
Standards/Approvals	RoHS
Package/Case	1050
Maximum DC Current	3.8A
Pin Count	2
Maximum DC Resistance	33mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1MHz
Inductor Construction	Wirewound

Key Features

Features a ferrite core with magnetic shielding to reduce interference.
Capable of continuous maximum DC current up to 3.8 A.
Compact 10.3mm depth and 10.5mm length suitable for surface mounting.
Inductance tolerance of ±30% accommodates typical manufacturing variations.
Maximum operating temperature rating of 125°C for reliable performance.
Wirewound inductor construction ensures durability and stability.
RoHS compliant and supplied on a reel for automated assembly.
Designed for use in computers, DVD players, and portable power devices.

Product Description

Eaton DR1050 Wirewound Surface Mount Inductor is engineered with a ferrite core and magnetic shielding to deliver reliable inductance of 15 μH with a tolerance of ±30%. This surface mount device is designed for high-frequency applications with a maximum self-resonant frequency of 1 MHz, making it suitable for noise filtering and power conversion in various electronic devices.

Featuring a maximum DC current rating of 3.8 A and a maximum operating temperature of 125°C, the DR1050 series caters to demanding industrial, computing, and portable power device environments. Its compact dimensions of 10.5mm length, 10.3mm depth, and 5mm height facilitate integration in dense PCB layouts.

This reel-packaged, RoHS compliant inductor is ideal for applications including notebook power supplies, LCD panels, DC-DC converters, and buck/boost circuits. Its wirewound construction and ferrite core deliver effective inductance with reduced electromagnetic interference thanks to built-in shielding.

Features a ferrite core with shielding for enhanced magnetic performance. Maximum DC current capacity of 3.8 A supports robust power handling. Compact 10.3mm by 10.5mm dimensions enable surface mounting in space-constrained devices.

Wide operating temperature range from -40°C to 125°C ensures reliability. Inductance tolerance of ±30% suits varied electrical conditions. Wirewound construction for mechanical and electrical stability. Supplied on reels to optimize manufacturing processes.

Applications include computing, portable electronics, and DC-DC power converters. Supports frequencies up to 1 MHz for high-frequency filtering solutions. Compliance with RoHS standards guarantees environmental safety.

This surface mount inductor by Eaton is a trusted component for engineers designing filtering and power conversion circuits in industrial, electronics, and computing sectors. For further innovation and collaboration on electrical components, browse additional qualified products within the Surface Mount Inductor category at EnvMart.
