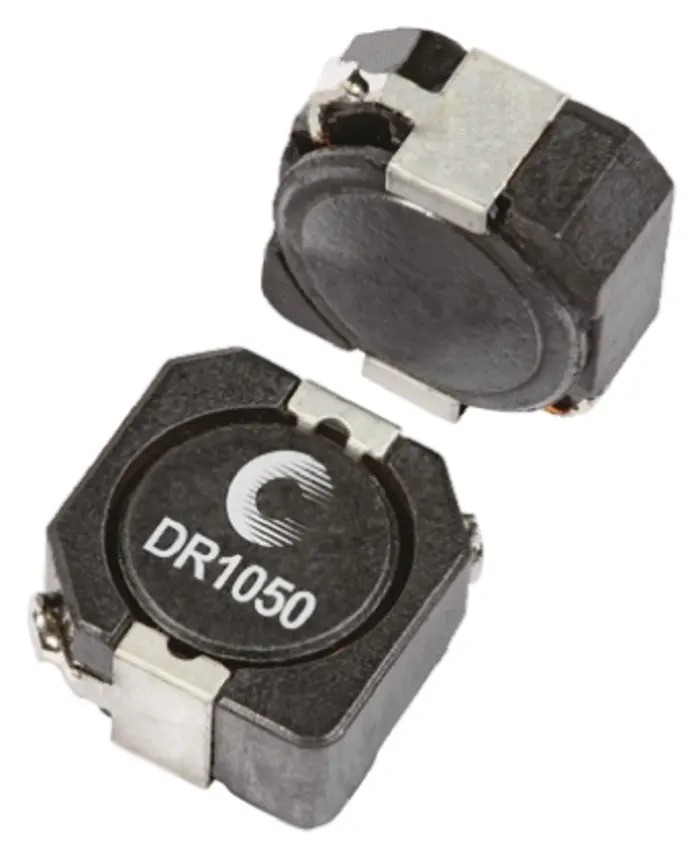

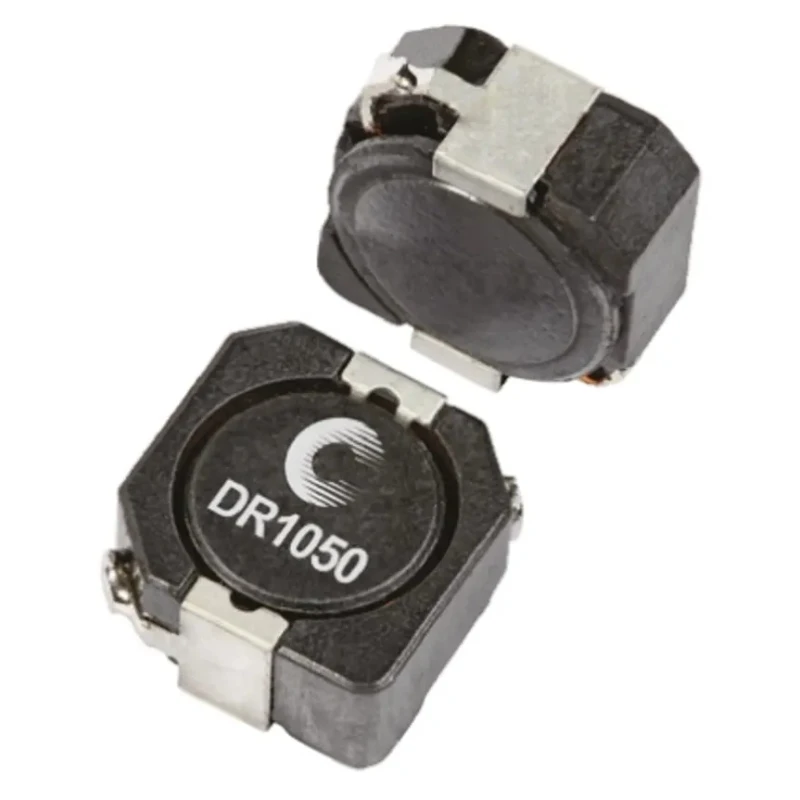

Eaton DR1050 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 10 μH ±30 %, 4.8 A Idc DR1050

Free Delivery in India | Lowest Global Shipping Charges

Eaton DR1050 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 10 μH ±30 %, 4.8 A Idc DR1050

Name: Eaton DR1050 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 10 μH ±30 %, 4.8 A Idc DR1050
Brand: Eaton
SKU: 367423
Price: 1.22 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	5mm
Length	10.5mm
Model	DR1050
Depth	10.3mm
Packaging	Reel
Series	DR1050
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	1050
Maximum DC Current	4.8A
Pin Count	2
Maximum DC Resistance	23mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1MHz
Inductor Construction	Wirewound

Key Features

Designed for compact surface mount technology applications.
Features ferrite core for efficient magnetic shielding.
Maximum operating temperature up to 125°C for reliable performance.
Package size 1050 with dimensions 10.5mm length, 10.3mm depth, and 5mm height.
Inductance tolerance of ±30 % suitable for varied electronic circuit requirements.
RoHS compliant ensuring environmental safety standards.
Suitable for dc-dc converters, noise filtering, and power device applications.
Construction includes wirewound inductor with moulded shielding.

Product Description

Eaton DR1050 shielded wirewound surface mount inductor with a ferrite core provides 10 μH inductance ±30 % tolerance and supports a maximum DC current of 4.8 A Idc. This inductor is designed for surface mount applications requiring efficient magnetic shielding and compact size.

The DR1050 series inductors feature a low profile package size 1050, measuring 10.5mm in length, 10.3mm in depth, and 5mm in height, making them ideal for space-constrained electronic assemblies. They are constructed with a ferrite core and wirewound design, ensuring low DC resistance of 23mΩ and high reliability at operating temperatures up to 125°C.

Typical applications include computers, DVD players, portable power devices, notebook power supplies, LCD panels, and dc-dc converter circuits such as buck, boost, forward, and resonant converters. The inductors are also effective in noise filtering and as filter chokes in various electronic products.

These inductors are offered on reels for efficient insertion into machinery and production lines, enhancing manufacturing throughput. They comply with RoHS environmental directives and come with a 2-pin surface mount termination style for easy PCB integration.

Compact surface mount size and low profile design enable versatile electronic applications. Ferrite core provides excellent shielding to minimize electromagnetic interference. Wide operating temperature range from -40°C to 125°C ensures durability under harsh conditions.

Low DC resistance contributes to improved energy efficiency and reduced heat. Applicable for various power conversion and filtering needs in industrial and consumer electronics. Moulded construction increases mechanical stability and protection.

Reel packaging supports automated manufacturing processes. Compliance with RoHS standards ensures eco-friendly product usage.

This Eaton DR1050 inductor is manufactured in China and is a new product that suits demanding industrial, commercial, and consumer electronic uses. Browse the extensive range of Surface Mount Inductors at EnvMart for complementary electronic components and accessories.
