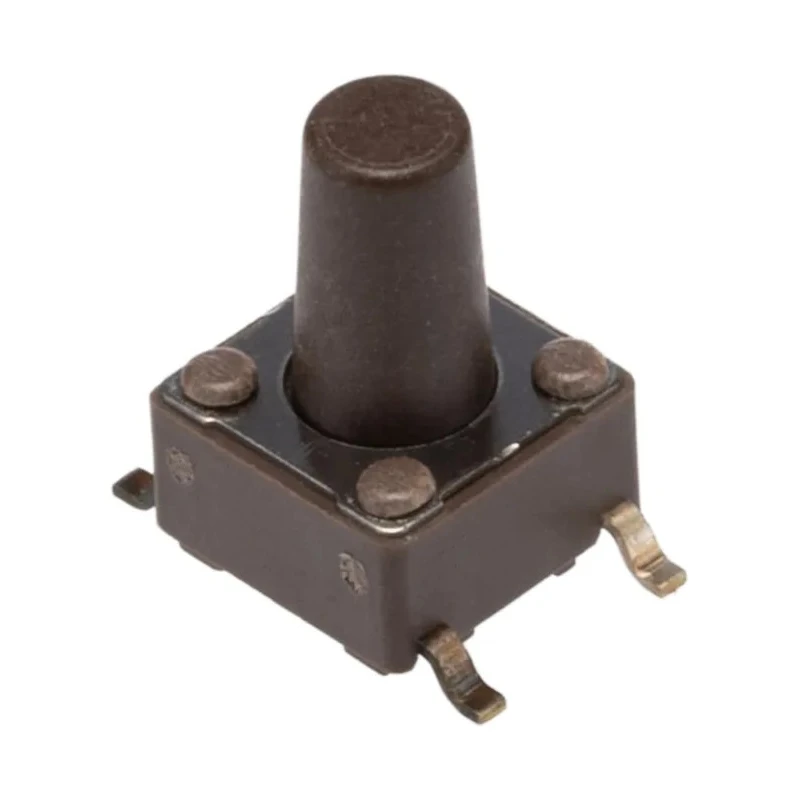

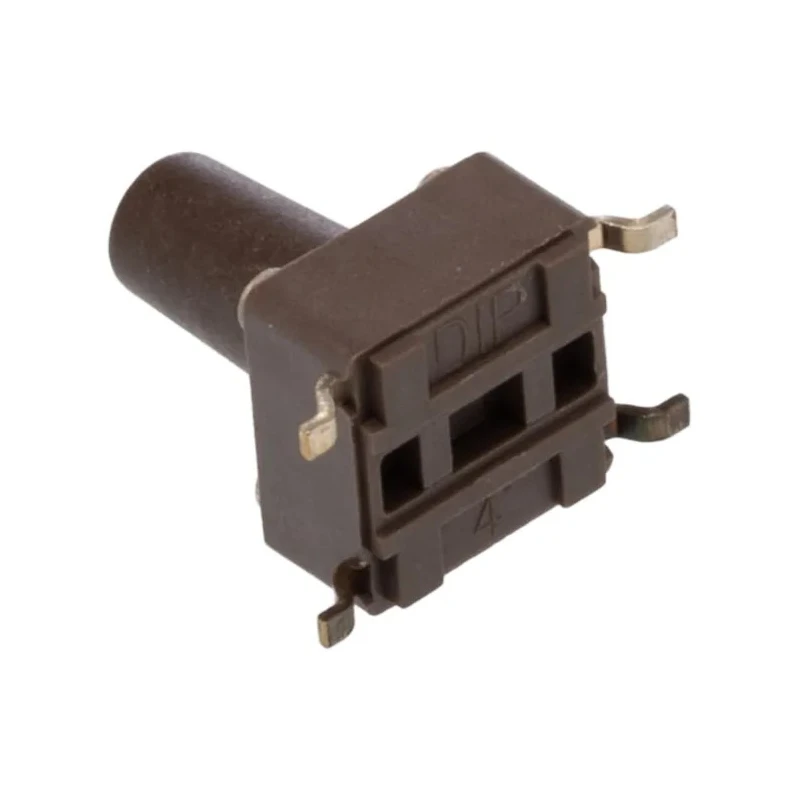

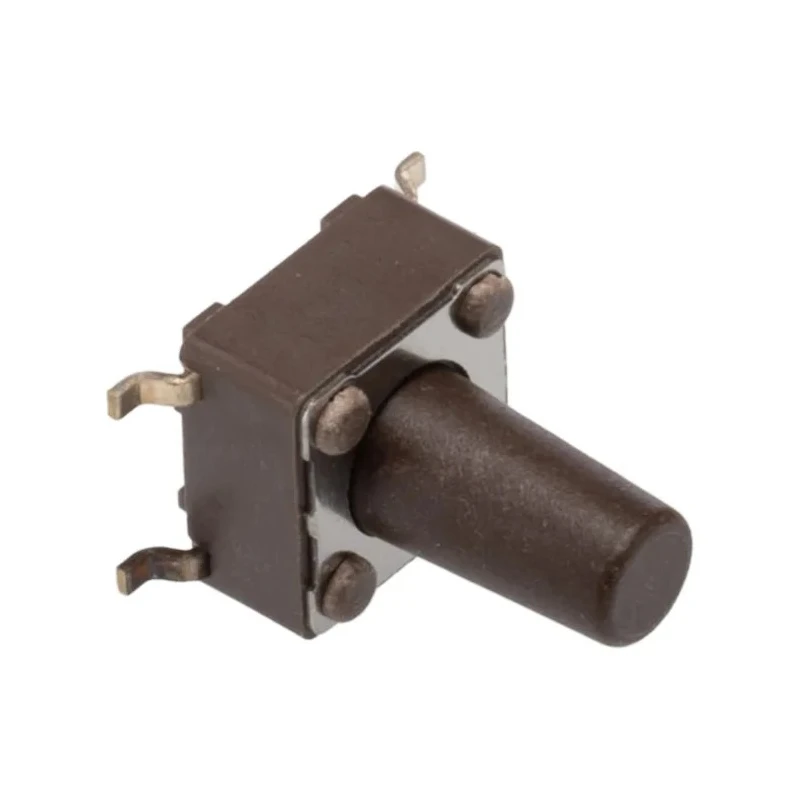

APEM Brown Tactile Switch Stem 9.5 mm SPST 50mA 12 V dc Surface DTSM65NV

Free Delivery in India | Lowest Global Shipping Charges

APEM Brown Tactile Switch Stem 9.5 mm SPST 50mA 12 V dc Surface DTSM65NV

Name: APEM Brown Tactile Switch Stem 9.5 mm SPST 50mA 12 V dc Surface DTSM65NV
Brand: APEM
SKU: 365865
Price: 0.25 USD
Availability: InStock



Category Tactile Switch Brand APEM Condition New

Specifications

Country of Origin	China
Brand	APEM
Height	9.5mm
Length	6mm
Model	DTSM65NV
Width	6mm
Mount Type	Surface
Series	DTSM-6
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Terminal type	Solder Tab
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Brown
Actuator Length	9.5mm
Contact DC Voltage	12V dc
Actuator Style	Stem
Switch Contact Current	50mA
Operating Force	1.6N
Low contact resistance	100mΩ

Key Features

The switch features a tactile stem actuator providing positive feedback with a sharp click sensation.
Designed for low current applications with a maximum switch contact current of 50mA.
Compact dimensions include 9.5 mm actuator length and a 6 mm width and length body.
It operates reliably within a temperature range of -25°C to 70°C.
The switch uses solder tab terminals suitable for surface mounting on PCBs.
It exhibits low contact resistance of 100mΩ ensuring efficient switching.
Operates with a momentary switch operation for brief actuation.
Conforms to RoHS standards, ensuring compliance with hazardous substances regulations.

Product Description

APEM DTSM65NV brown tactile switch stem is a SPST (single pole single throw) surface-mount tactile switch designed for low current switching applications up to 50mA at 12 V dc. The 9.5 mm long stem actuator provides a distinct tactile click feedback to users, ensuring reliable momentary actuation with positive tactile sensation.

This switch features a compact size with a 6 mm by 6 mm body footprint, making it suitable for high-density PCB mounting in various industrial and electronic equipment applications. The solder tab terminals facilitate easy surface mounting and ensure stable mechanical and electrical connections.

Its operational temperature range spans from -25°C to 70°C, allowing it to function reliably in various environmental conditions. The low contact resistance of 100mΩ reduces power losses and enhances switching performance. Conforming to RoHS standards, the switch meets environmental and safety regulations regarding hazardous substances.

Typical use cases for the DTSM65NV tactile switch include electronic controls, consumer electronics, instrumentation, and industrial automation systems where precise, momentary switching is required. The operating force of 1.6 N provides an ergonomic balance between actuation effort and tactile feedback.

The ultra-miniature lightweight design of the DTSM-6 series enables its use in compact devices requiring small switching components without sacrificing reliability or performance. The switch utilizes a brown colored stem actuator distinguished by its tactile feedback characteristics.

Its momentary switch operation ensures the circuit completes only while the switch is pressed. SPST contact configuration offers a simple On-Off switching mechanism. Surface mount technology (SMT) terminals support automated assembly processes.

Its design facilitates high reliability and long operational life in industrial applications.

This product is made in China and is new in condition. Check EnvMart's electronics and electricals category for further Tactile Switch options and industrial-grade electronic components suitable for various applications.
