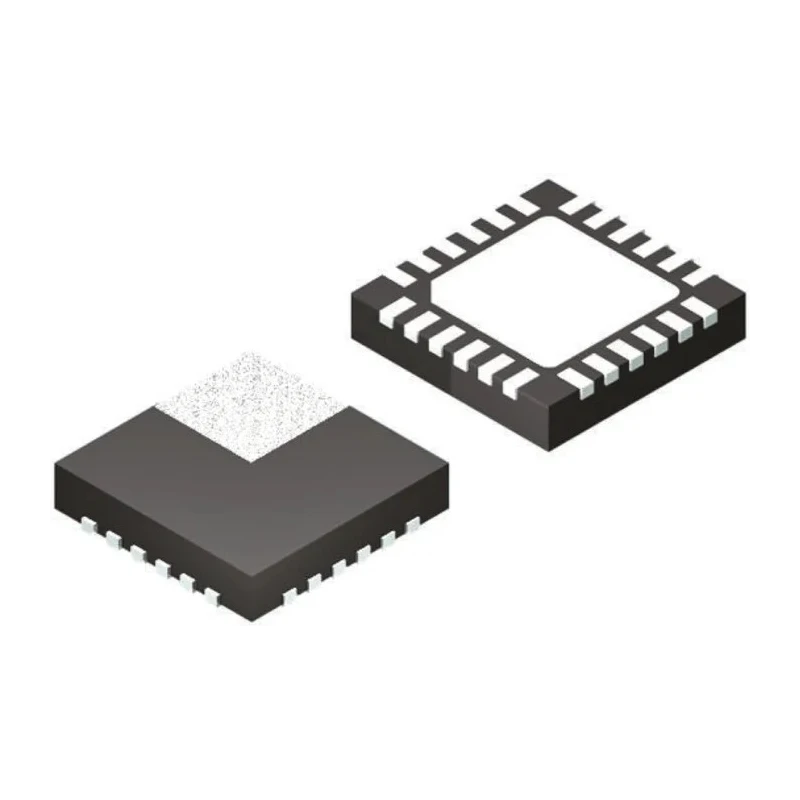

Silicon Labs USB Controller CP2104-F03-GM, 1-Channel 12 Mbps, 3-3.6 V Supply, USB to UART, 24-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Silicon Labs |
| Height | 800μm |
| Length | 4mm |
| Model | CP2104-F03-GM |
| Mount Type | Surface |
| Series | CP2104 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Supply Current | 18.5mA |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB to UART |
Key Features
- Supports USB to UART protocol for efficient serial communication.
- Operates within a temperature range of -40°C to 85°C for versatile environments.
- Provides electrostatic discharge (ESD) protection ensuring device safety.
- Compact 4 mm length with a low 800 μm package height for space-saving designs.
- Supply current is typically 18.5 mA for low power consumption.
- Contains 1 transceiver channel facilitating single-channel data flow.
- Surface mount device with a 24-pin QFN footprint for easy PCB integration.
- Compatible with USB 2.0 standard ensuring wide device interoperability.
Product Description
Silicon Labs CP2104-F03-GM is a USB Controller designed for high-efficiency serial communication applications. Featuring a single transceiver channel, it supports data rates up to 12 Mbps while operating within a supply voltage of 3 to 3.6 volts. This device employs USB 2.0 standards and USB to UART protocol, suitable for converting USB signals to UART format efficiently in embedded systems.
The device is packaged in a compact 24-pin Quad Flat No-lead (QFN) form factor, measuring 4 mm in length and with a height of just 800 micrometers, making it highly suitable for space-constrained circuit board designs. Its robust operating temperature range from -40°C to 85°C enables reliable performance across diverse industrial and consumer applications.
Designed for surface mounting, the CP2104-F03-GM supports effective integration within high-density PCBs and provides electrostatic discharge protection to enhance device longevity and system reliability. The typical supply current is 18.5 mA, ensuring low power consumption essential for battery-operated devices.
This USB controller finds applications in industrial automation, embedded systems, laboratory instrumentation, and other electronic devices requiring USB to UART conversion with high data integrity and compact design.
Supports USB to UART conversion for seamless serial communication. Single transceiver channel capable of 12 Mbps data rate. Wide operating temperature from -40°C up to 85°C. 24-Pin QFN surface mount package with compact dimensions.
Typical supply current of 18.5 mA ensuring energy-efficient operations. Electrostatic discharge protection improves device durability. Compliant with USB 2.0 specifications for broad compatibility. Ideal for applications in electronics, industrial, and lab equipment.
Its reliable performance and compact design make it a preferred choice for engineers and manufacturers. Explore more semiconductor solutions and USB Interface ICs in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 12 Mbps, facilitating efficient serial communication.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
This unit requires a supply voltage between 3.0 V and 3.6 V for operation.
The CP2104-F03-GM contains one transceiver channel for data flow.
It is packaged in a 24-pin Quad Flat No-lead (QFN) form factor, which is compact and suitable for surface mounting.
The typical supply current for the CP2104-F03-GM is 18.5 mA, ensuring low power consumption during operation.
Yes, this USB controller is compliant with USB 2.0 specifications, ensuring broad compatibility with various devices.
It supports the USB to UART protocol, allowing for seamless serial communication.
The height of this model is 800 micrometers, contributing to its compact design.
This USB controller is suitable for applications in industrial automation, embedded systems, and laboratory instrumentation.
Yes, it includes electrostatic discharge (ESD) protection to enhance device longevity and reliability.
The length of this model is 4 mm, making it suitable for space-constrained designs.
