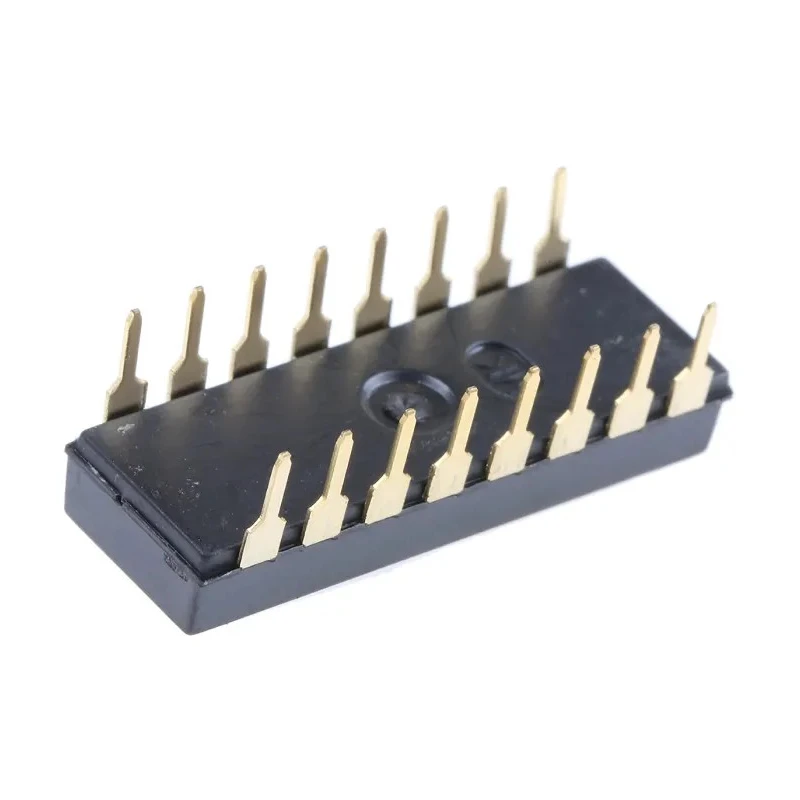

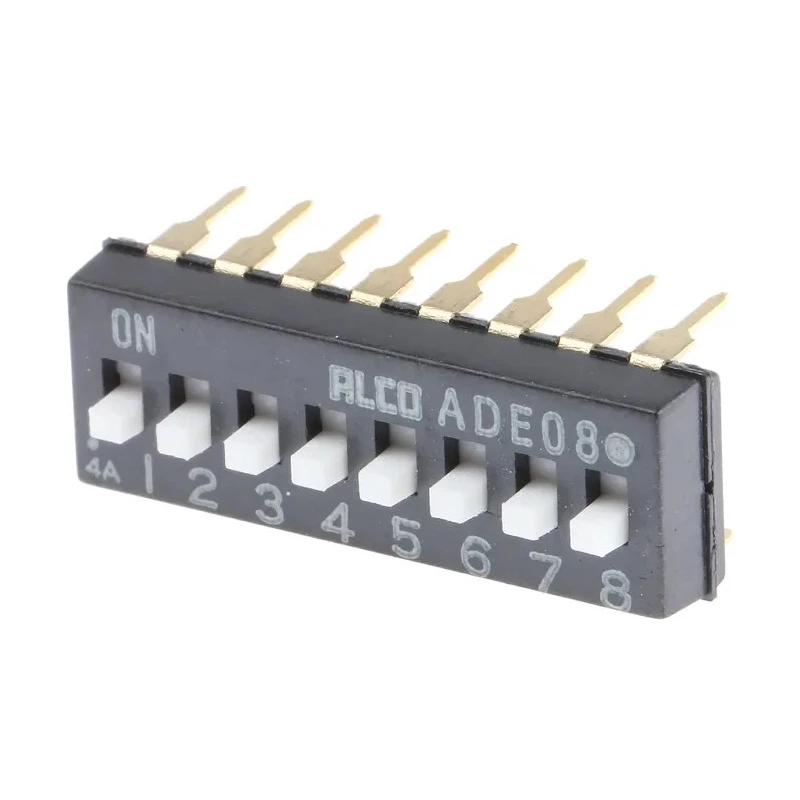

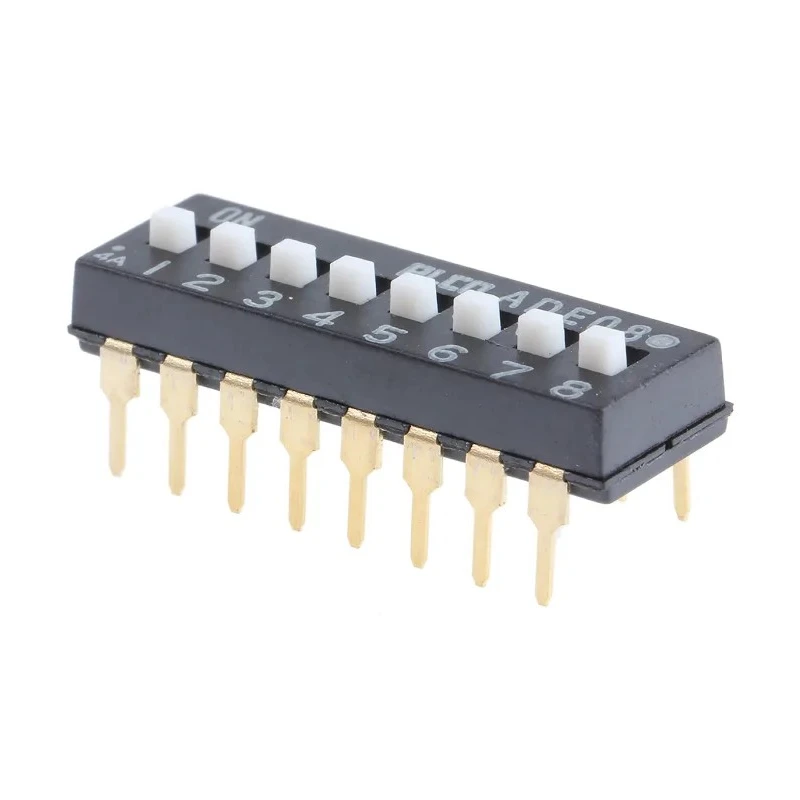

TE Connectivity Extended Slide Rotary Coded DIP Switch ADE08A04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE08A04 |
| Actuator Type | Extended Slide |
| Contact Resistance | 50mΩ |
Key Features
- The ADE series offers through-hole mounting with a compact 7.5 x 3.5 mm footprint and 2.54 mm centerline pitch.
- Contacts are gold flash plated with black PPS housings for durability.
- The extended slide actuator provides precise manual control and positioning.
- High-pressure wiping contact system ensures low contact resistance of 50 milliohms.
- Designed for high reliability in aqueous or solvent cleaning and vapor phase reflow or wave solder processes.
- Suitable for industrial and electronics applications requiring robust rotary coded DIP switching.
- Auto-insertable for efficient assembly into printed circuit boards.
Product Description
TE Connectivity ADE08A04 Rotary Coded DIP Switch features an extended slide actuator to provide precise, reliable manual switching in electronic control applications. This DIP switch is part of the ADE series with a through-hole mounting configuration designed for PCB integration. The device measures 7.5 x 3.5 mm with a standard 2.54 mm pitch between contacts, ensuring compatibility with common circuit board layouts.
Gold flash plated contacts and black PPS housing materials provide excellent durability, electrical performance, and resistance to environmental factors. The switch employs a high-pressure wiping contact mechanism which offers a low contact resistance of 50 milliohms, improving signal integrity and performance.
The ADE series is designed to withstand typical soldering processes such as vapor phase reflow and wave soldering, as well as aqueous or solvent cleaning methods without compromising contact reliability. The extended slide actuator enhances user tactile feedback and ease of operation.
This Rotary Coded DIP Switch is ideal for use in industrial electronics, control panels, automation equipment, and other applications requiring compact, reliable rotary switch control. The switch is auto-insertable, supporting efficient automated PCB assembly.
Extended slide actuator enables accurate rotary coded input selection. Robust contact system ensures low resistance and reliability under harsh conditions. Compact size and standardized pin pitch for seamless PCB integration.
Compatible with cleaning and soldering processes widely used in electronics manufacturing. Explore more products in EnvMart's extensive Switches & Sockets category for advanced electronic switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this model is 50 milliohms, which helps improve signal integrity and performance.
This rotary coded DIP switch measures 7.5 x 3.5 mm, with a standard 2.54 mm pitch between contacts, suitable for common circuit board layouts.
It features an extended slide actuator that provides precise manual control and positioning for rotary coded input selection.
Yes, this model is auto-insertable, supporting efficient automated assembly into printed circuit boards.
The switch has gold flash plated contacts and a black PPS housing, which provide durability and resistance to environmental factors.
It is designed to withstand aqueous or solvent cleaning methods, as well as vapor phase reflow and wave solder processes without compromising reliability.
This rotary coded DIP switch is ideal for industrial electronics, control panels, and automation equipment requiring reliable rotary switch control.
The country of origin for this model is India.
The primary function of this switch is to provide reliable manual switching in electronic control applications.
The extended slide actuator enhances user tactile feedback and ease of operation during switching.
The low contact resistance of 50 milliohms ensures improved signal integrity and performance in various applications.
The pitch between contacts on this model is 2.54 mm, which is a standard measurement for compatibility with circuit boards.
