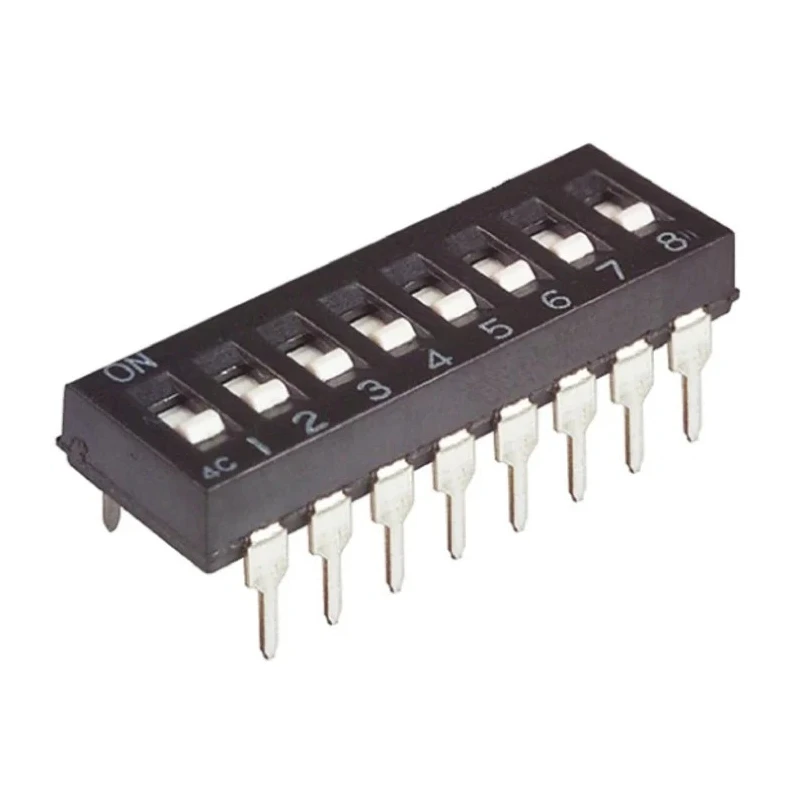

TE Connectivity Flush Slide Rotary Coded DIP Switch Through Hole ADF08T04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADF08T04 |
| Mount Type | Through Hole |
| Actuator Type | Flush Slide |
| Contact Resistance | 50mΩ |
Key Features
- This switch features a flush slide actuator for compact mounting.
- It has a mounting type of through hole ensuring secure PCB installation.
- The contacts are gold flash plated for enhanced conductivity and corrosion resistance.
- The switch utilizes a high pressure contact system for reliable operation.
- Contact resistance is 50 milliohms ensuring efficient electrical performance.
- The black PPS housing provides durability and heat resistance.
- Compatible with aqueous or solvent cleaning processes due to high pressure wiping contacts.
- It supports vapor phase reflow and wave soldering processes.
Product Description
TE Connectivity ADF08T04 Flush Slide Rotary Coded DIP Switch Through Hole mounting type is designed for precision electronic switching applications. It fits seamlessly into printed circuit boards with its 7.5 x 3.5 mm size and 2.54 mm centerline spacing.
This DIP switch features a flush slide actuator that allows for a low-profile design, suitable for compact assemblies. The black PPS housing ensures robust mechanical strength and heat resistance during operation.
Contacts are gold flash plated to guarantee excellent conductivity and resistance against oxidation. The switch is equipped with a high pressure contact system, which facilitates reliable electrical contact with a low contact resistance of 50 mΩ. This ensures consistent signal integrity across multiple switching cycles.
Its construction supports high pressure wiping contacts allowing the switch to undergo aqueous or solvent cleaning without protective tape seal, enhancing process compatibility. Furthermore, it withstands both vapor phase reflow and wave soldering reflow conditions, enabling versatile soldering options during manufacturing.
This product is ideal for industrial, electronic assembly, automation, instrumentation, and consumer electronics manufacturing environments requiring durable and high precision rotary coded switching solutions.
This rotary coded DIP switch has a flush slide actuator for compact electronic applications. It features through hole mounting enabling secure PCB assembly. Gold flash plated contacts improve conductivity and longevity. The black PPS housing provides heat resistance and durability.
Contact resistance of 50 milliohms guarantees efficient performance. Supports aqueous and solvent cleaning processes. Compatible with vapor phase reflow and wave soldering techniques. Size dimensions are 7.5 x 3.5 mm with a 2.54 mm centerline.
Explore more high-quality Rotary Coded DIP Switches and electronic components at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a through hole mounting type, ensuring secure installation on printed circuit boards (PCBs).
The contact resistance of the ADF08T04 is 50 milliohms, which ensures efficient electrical performance.
The dimensions of this unit are 7.5 mm by 3.5 mm, with a centerline spacing of 2.54 mm.
It utilizes a flush slide actuator, allowing for a low-profile design suitable for compact electronic applications.
The switch features a black PPS housing that provides durability and heat resistance during operation.
Yes, it supports aqueous or solvent cleaning processes due to its high pressure wiping contacts, which do not require protective tape seal.
This model is compatible with vapor phase reflow and wave soldering processes, enabling versatile soldering options during manufacturing.
It is ideal for industrial, electronic assembly, automation, instrumentation, and consumer electronics manufacturing environments.
Gold flash plated contacts improve conductivity and provide resistance against oxidation, enhancing the longevity of the switch.
The high pressure contact system facilitates reliable electrical contact, ensuring consistent signal integrity across multiple switching cycles.
The country of origin for this switch is India.
Industries such as electronics manufacturing, automation, and instrumentation can benefit from the durable and high precision switching solutions provided by this model.
