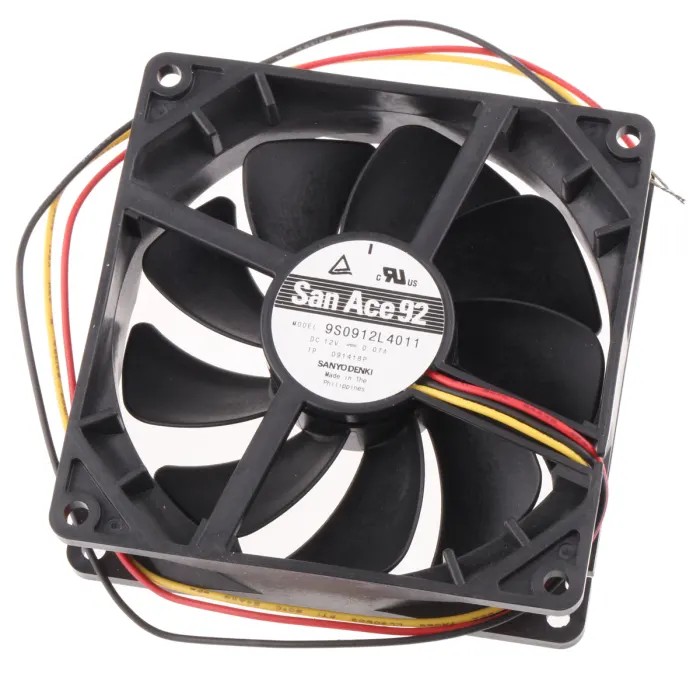

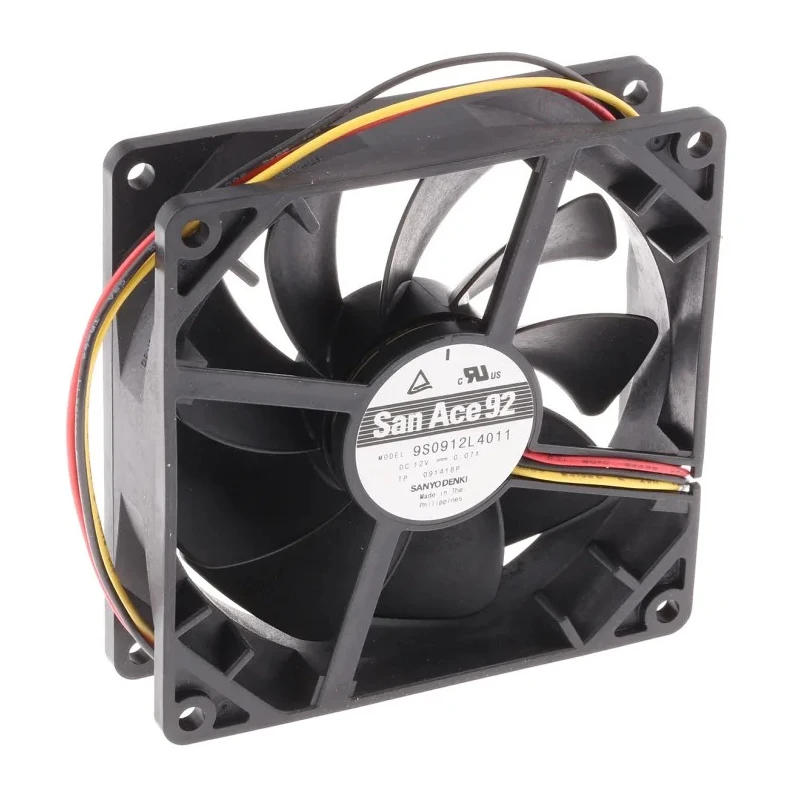

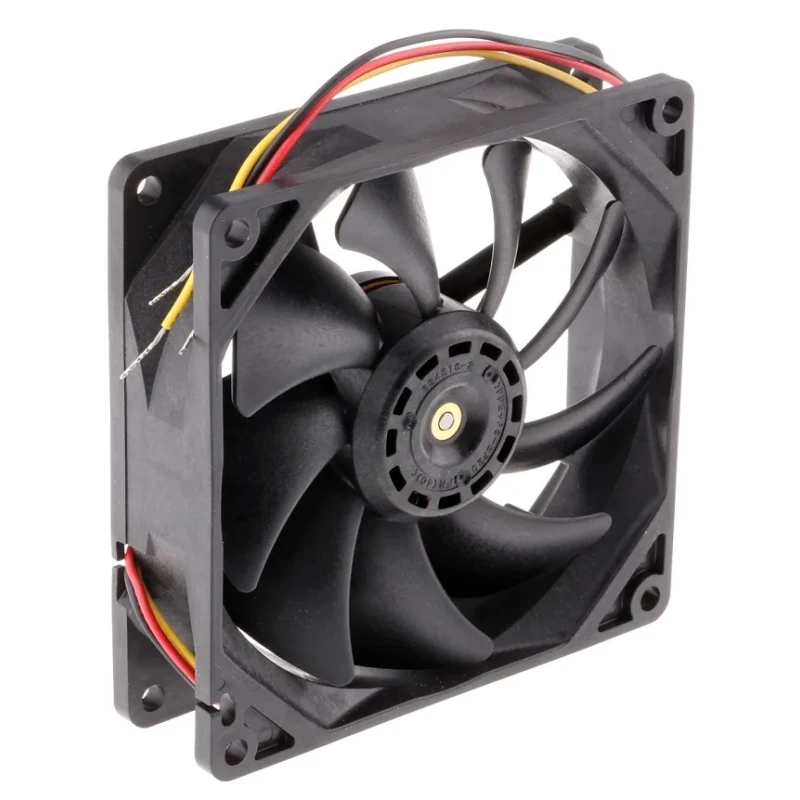

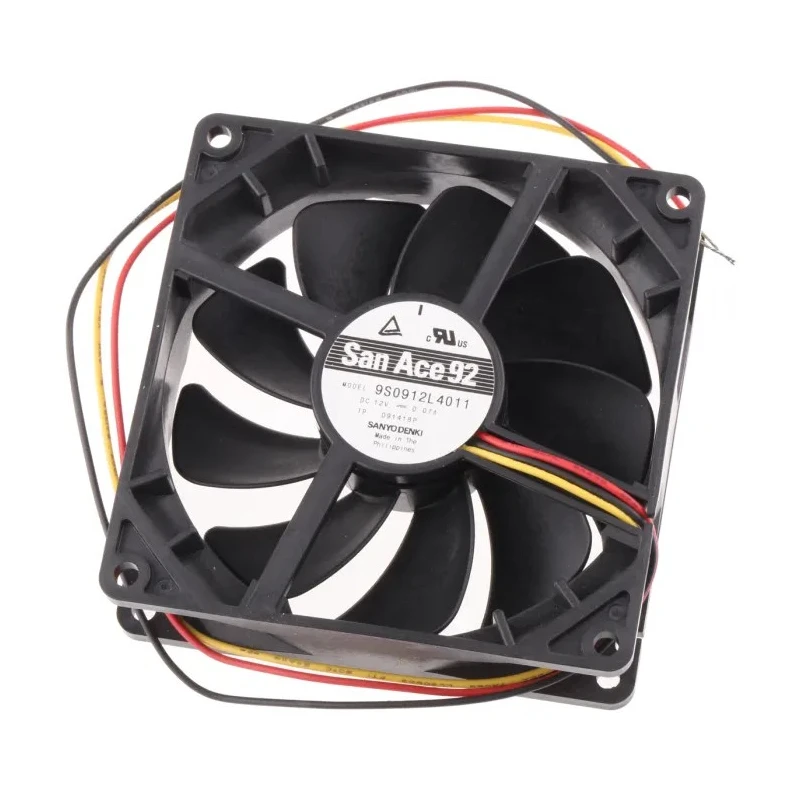

Sanyo Denki San Ace 9S Series Axial Fan 12V DC 49.8 m³/h Airflow 840 mW Power 70 mA Max Current 92mm x 92mm x 9S0912L4011
Specifications
| Country of Origin | Philippines |
|---|---|
| Power Consumption | 840mW |
| Brand | Sanyo Denki |
| Height | 92mm |
| Fan Speed | 1750rpm |
| Air Flow | 49.8m³/h |
| Model | 9S0912L4011 |
| Noise Level | 17dB |
| Width | 92mm |
| Series | San Ace 9S |
| Maximum Current | 70mA |
| Terminal type | Wire |
| External Depth | 25mm |
| Supply Voltage | 12V dc |
| Bearing Type | Ball |
| Standards/Approvals | UL, TUV, CSA |
| Fan Frame Size | 92 mm |
| Fan Frame Type | Square |
| Direction of Curve | Forward |
Key Features
- Operates at 12V DC with power consumption of 840 mW.
- Max current draw is 70 mA for efficient energy use.
- Delivers airflow of 49.8 m³/h for effective cooling.
- Fan speed reaches 1750 RPM with quiet noise level of 17 dB.
- Constructed with ball bearing for long operational life.
- Square frame size 92 mm x 92 mm x 25 mm offers compact design.
- Fan blade curve directed forward for optimized airflow.
- Equipped with wire terminal type for easy connectivity.
Product Description
Sanyo Denki 9S0912L4011 San Ace 9S Series Axial Fan features a 12V DC supply voltage, power consumption of 840 mW, and maximum current of 70 mA. This fan is engineered for industrial and commercial cooling needs, providing 49.8 m³/h airflow at a fan speed of 1750 RPM with a very low noise level of 17 dB. The forward curve blades and ball bearing motor design ensure efficient airflow and extended operational life.
The fan frame dimensions are 92 mm width, 92 mm height, and 25 mm depth with a square frame type, making it suitable for compact installations. The terminal wiring allows for straightforward electrical connections.
Typical applications include industrial automation cooling, HVAC systems, air conditioning units, electrical enclosures, and thermal management environments. The fan complies with UL, TUV, and CSA standards, reflecting its quality and safety certifications.
Manufactured in the Philippines, the San Ace 9S Series axial fans offer a silent operation with advanced motor and impeller design, reducing vibration and switching noise, thereby prolonging fan and equipment lifespan. The fan’s rated life is 67,000 hours continuous operation at 40°C ambient temperature, suitable for any fan mounting position.
Operates at 12V DC with power consumption of 840 mW. Maximum current rating of 70 mA to ensure energy efficiency. Provides 49.8 m³/h airflow rate for effective cooling. Extremely low noise at 17 dB for quiet operation. High-speed fan rotation of 1750 RPM for optimum performance.
Ball bearing technology reduces vibration for longevity. Square fan frame design with dimensions 92 mm x 92 mm x 25 mm. Forward blade curve improves air flow dynamics. Wire terminal connection for simple installation. Certified under UL, TUV, and CSA standards for safety.
Explore our wide range of industrial Axial Fans and thermal management products at EnvMart for your cooling and ventilation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an airflow capacity of 49.8 m³/h, making it suitable for effective cooling applications.
The fan operates with a power consumption of 840 mW, ensuring efficient energy use during operation.
The maximum current draw for this fan is 70 mA, which contributes to its energy efficiency.
It operates at a very low noise level of 17 dB, making it suitable for quiet environments.
The fan has a square frame design with dimensions of 92 mm x 92 mm x 25 mm.
This model reaches a fan speed of 1750 RPM, providing optimal performance for cooling.
It is constructed with a ball bearing, which helps reduce vibration and extends operational life.
The fan operates at a supply voltage of 12V DC, making it compatible with various systems.
This fan complies with UL, TUV, and CSA standards, reflecting its quality and safety certifications.
It is equipped with a wire terminal type for easy and straightforward electrical connections.
Typical applications include industrial automation cooling, HVAC systems, air conditioning units, and thermal management environments.
This model is manufactured in the Philippines, ensuring compliance with international standards.
