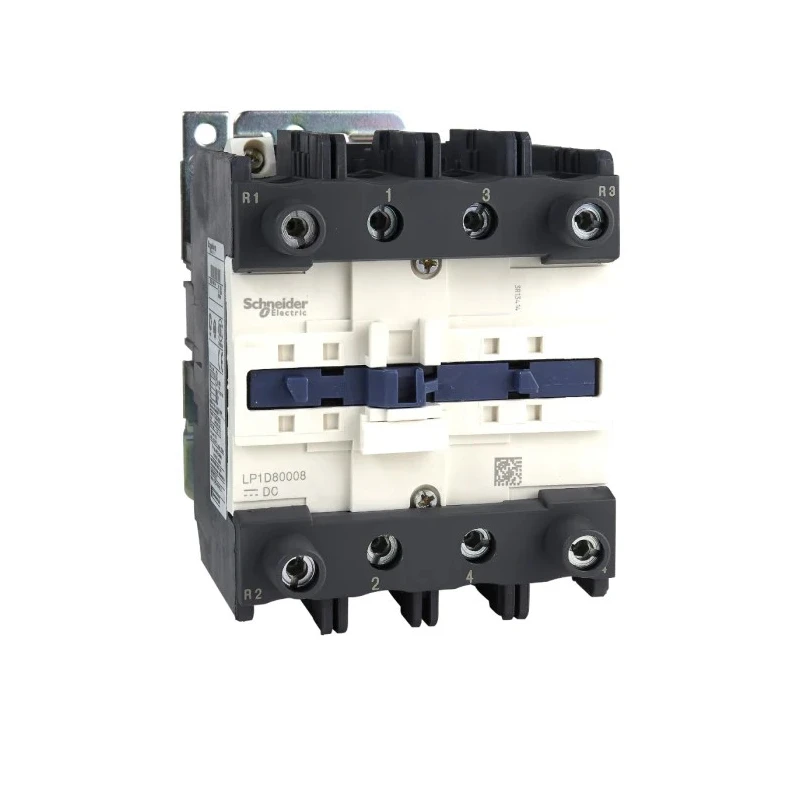

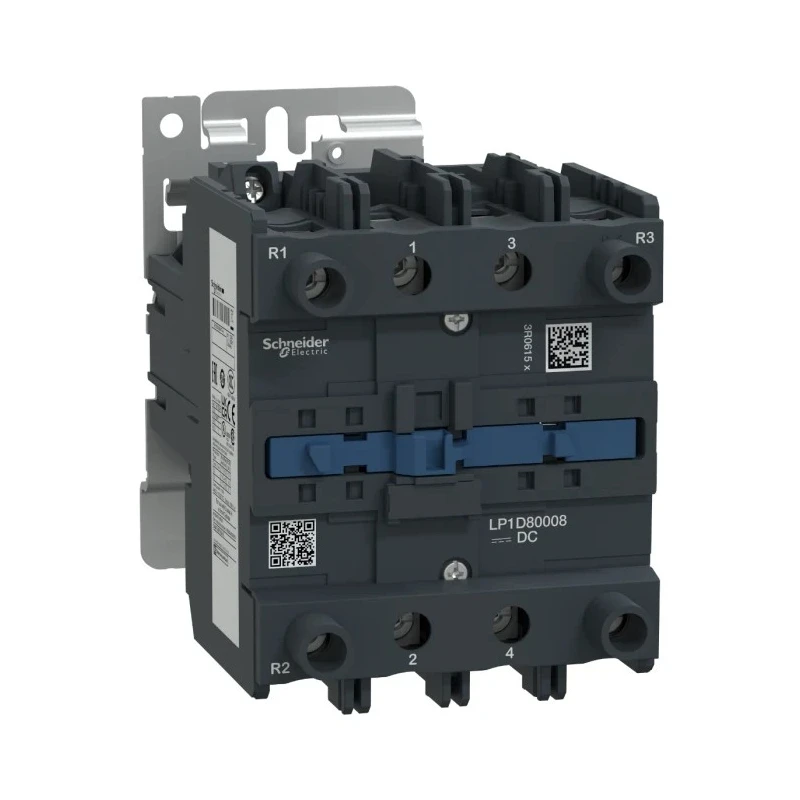

Schneider Electric LP1D Contactor, 24V DC Coil, 4-Pole, 125A Contact Current, 2 NO/2 NC Contacts, 1kV AC LP1D80008BW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LP1D80008BW |
| Depth | 125mm |
| Width | 96mm |
| Mount Type | DIN Rail |
| Series | LP1D |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -60°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 125A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 125A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features 4 poles and supports a contact current of 125 A.
- It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for versatile control.
- Designed to operate at a coil voltage of 24V DC and contact voltage up to 1 kV AC.
- Mounting options include DIN rail installation and panel mounting with screws.
- Equipped with IP20 finger-safe terminals for enhanced electrical safety.
- Coil provides a wide control voltage band and low power consumption for efficiency.
- Operates reliably in temperatures ranging from -60°C to 80°C.
- Certified to CSA and UL standards ensuring quality and safety compliance.
Product Description
Schneider Electric LP1D80008BW Contactor, featuring a 24V DC coil and 4 poles, is engineered for robust motor control and resistive load applications. This contactor supports a high operational current of 125 A and includes 2 normally open and 2 normally closed auxiliary contacts, making it suitable for complex switching requirements.
The device is designed for mounting flexibility with options for DIN rail and panel installations, equipped with screw terminals marked for both North American and International standards. Its coil delivers a wider control voltage band while maintaining low permanent consumption, enhancing operational efficiency.
Built for durability, the contactor performs reliably across a broad temperature range from -60°C to 80°C. Safety is paramount with IP20 finger-safe terminals, and the product meets CSA and UL certifications, ensuring adherence to stringent quality standards.
Applications typically include use in controlling resistive loads and various motor types, including squirrel cage motors, lifts, conveyors, compressors, and HVAC systems. The Schneider Electric TeSys D series offers double breaking pole technology through a linear translation mechanism, increasing contact reliability and service life.
The contactor also features bidirectional peak limiting diode suppressors to protect the coil from voltage spikes and comes with easily installed accessories for flexible control circuits to suit diverse industrial requirements.
The contactor features 4 poles and supports a contact current of 125 A. It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for versatile control. Designed to operate at a coil voltage of 24V DC and contact voltage up to 1 kV AC.
Mounting options include DIN rail installation and panel mounting with screws. Equipped with IP20 finger-safe terminals for enhanced electrical safety. Coil provides a wide control voltage band and low power consumption for efficiency.
Operates reliably in temperatures ranging from -60°C to 80°C. Certified to CSA and UL standards ensuring quality and safety compliance.
Ideal for industrial, manufacturing, HVAC, and automation control systems, this Contactor assures high mechanical and electrical longevity for reliable system operation. Explore more Schneider Electric automation and control gear products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LP1D80008BW contactor supports a contact current of 125 A.
This contactor operates at a coil voltage of 24V DC.
It can handle a maximum contact voltage of 1 kV AC.
This model features 4 poles.
It can be mounted on a DIN rail or panel-mounted with screws.
It operates reliably in temperatures ranging from -60°C to 80°C.
The contactor includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
It is certified to CSA and UL standards, ensuring quality and safety compliance.
It is designed for motor control and resistive load applications, including squirrel cage motors and HVAC systems.
It is equipped with IP20 finger-safe terminals, marked for both North American and International standards.
The dimensions are 127mm in length, 125mm in depth, and 96mm in width.
These suppressors protect the coil from voltage spikes, enhancing the reliability of the contactor.
