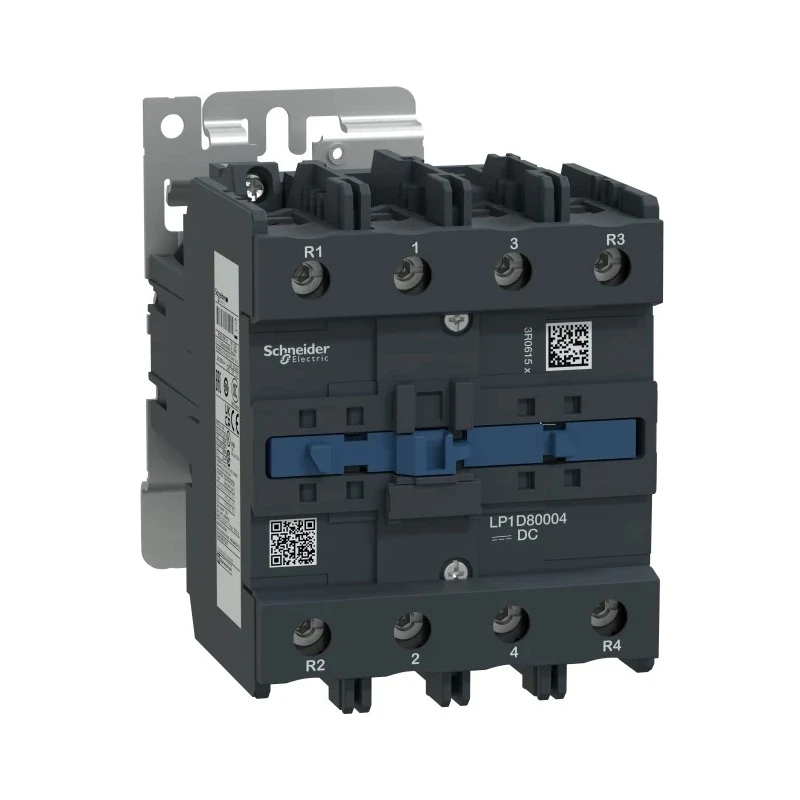

Schneider Electric LP1D Contactor, 48V dc Coil, 4-Pole, 125A, 4 NO Aux Contacts, Screw Terminals, 1kV ac LP1D80004ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LP1D80004ED |
| Depth | 125mm |
| Width | 96mm |
| Mount Type | DIN Rail |
| Series | LP1D |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -60°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 48V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 125A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 4 NO |
| Operational Current Ie | 125A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Rated contact current of 125A ensures high-performance electrical switching.
- Equipped with 4 normally open (NO) power poles and 4 normally open auxiliary contacts.
- Screw terminal connections provide secure and finger-safe IP20 protection.
- Mounts easily on DIN Rail for flexible installation.
- Operating temperature ranges from -60°C to +80°C for robust environmental performance.
- Designed with a coil voltage rating of 48V dc for reliable control circuit operation.
- Complies with CSA and UL standards ensuring industrial safety and quality.
- Better World Product certified, designed for disassembly to support sustainability.
Product Description
Schneider Electric LP1D80004ED Contactor features a 48V dc coil with a 4-pole design, rated for a contact current of 125A at 1kV ac. This contactor is primarily optimized for motor control and resistive load applications within industrial and automation environments.
Its 4 normally open (NO) power poles and 4 NO auxiliary contacts support versatile switching needs. The screw-type IP20 finger-safe terminals are clearly marked with both North American and international standards, enhancing safety and usability during installation and maintenance. Mounting on DIN Rail facilitates easy integration into control panels.
The contactor operates reliably over a temperature range of -60°C to 80°C, making it suitable for varied industrial climates. The compact physical dimensions (127mm length, 96mm width, and 125mm depth) ensure it accommodates tight electrical panel spaces without compromising functionality.
Certified to both CSA and UL standards, this product guarantees compliance with stringent safety and performance requirements. Part of Schneider Electric's Better World initiative, this contactor is designed for easy disassembly to promote sustainability and reduce environmental impact.
Typical applications include control of resistive loads classified under the AC-1 utilization category, commonly encountered in industrial automation, manufacturing, HVAC systems, and other electrical switching scenarios demanding high reliability and durability.
Rated contact current of 125A ensures high-performance electrical switching. Equipped with 4 normally open (NO) power poles and 4 normally open auxiliary contacts. Screw terminal connections provide secure and finger-safe IP20 protection.
Mounts easily on DIN Rail for flexible installation. Operating temperature ranges from -60°C to +80°C for robust environmental performance. Designed with a coil voltage rating of 48V dc for reliable control circuit operation.
Compact dimensions: Length 127mm, Width 96mm, Depth 125mm for space-efficient panel layouts. Complies with CSA and UL standards ensuring industrial safety and quality. Better World Product certified, designed for disassembly to support sustainability.
Ideal for resistive load applications under AC-1 utilization category. Explore our Electronics & Electricals category for more Schneider Electric automation and control gear suitable for industrial, commercial, and laboratory applications.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LP1D80004ED contactor has a rated contact current of 125A, ensuring high-performance electrical switching.
It is designed with a coil voltage rating of 48V dc for reliable control circuit operation.
This model operates reliably over a temperature range of -60°C to 80°C, making it suitable for varied industrial climates.
The LP1D80004ED contactor features a 4-pole design, equipped with 4 normally open (NO) power poles and 4 NO auxiliary contacts.
It has screw-type IP20 finger-safe terminals that are clearly marked with both North American and international standards for enhanced safety.
The compact dimensions of this model are 127mm in length, 96mm in width, and 125mm in depth.
The Schneider Electric LP1D80004ED complies with CSA and UL standards, ensuring industrial safety and quality.
This contactor mounts easily on DIN Rail, facilitating flexible installation within control panels.
It is optimized for motor control and resistive load applications, particularly classified under the AC-1 utilization category.
This model is equipped with 4 normally open (NO) auxiliary contacts, supporting versatile switching needs.
The contact voltage rating for the LP1D80004ED is 1kV ac, suitable for various electrical switching scenarios.
