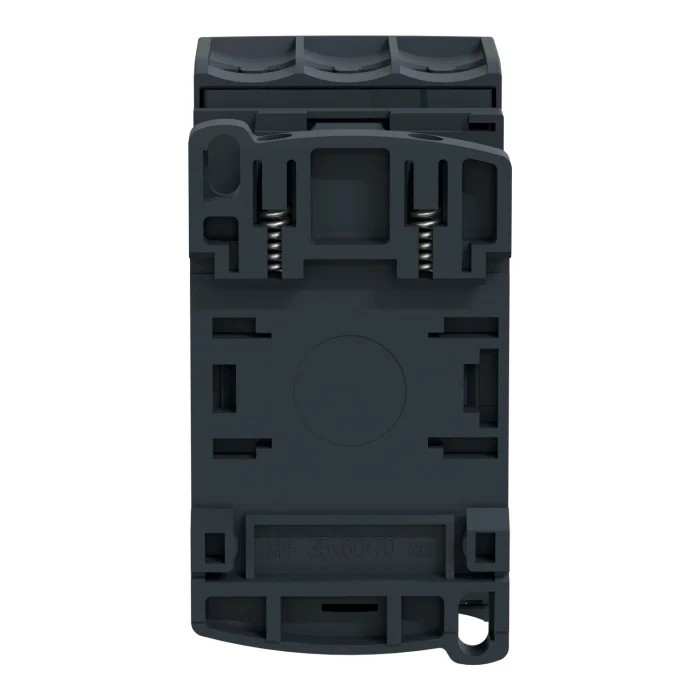

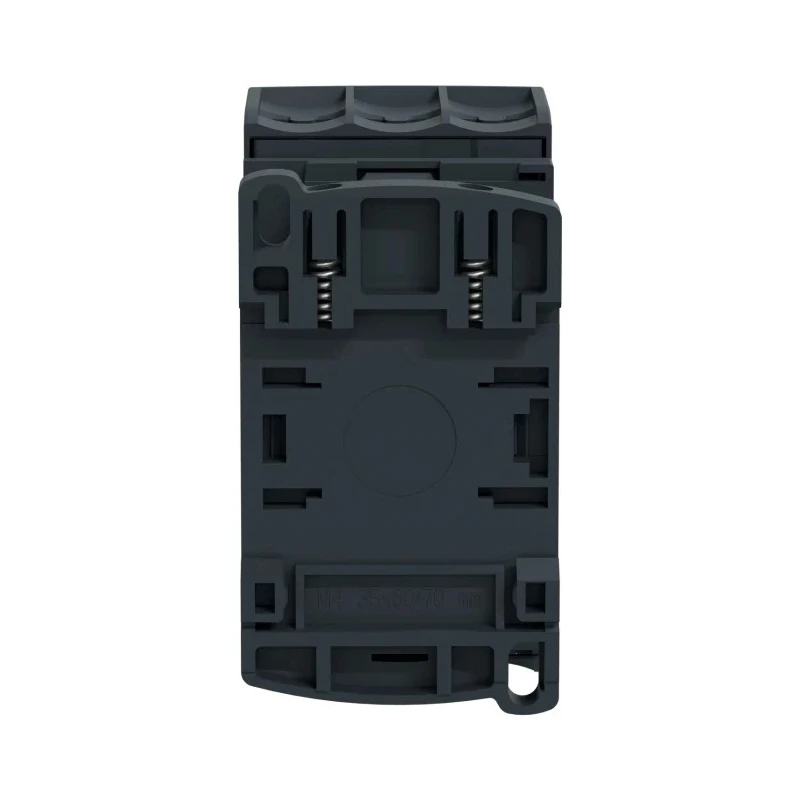

Schneider Electric LC1D Contactor, 110V AC Coil, 3-Pole, 32 A, 2 HP 120V, 3 NO, 690V AC/DC LC1D32G7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D32G7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 120V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open contacts for reliable switching.
- Supports a power rating of 2 HP at 120V for motor operations.
- Features screw terminal connections that are IP20 finger-safe and marked for North American and International standards.
- Mounts easily on DIN rails or panels for flexible installation.
- Contains 2 auxiliary contacts configured as 1 NO and 1 NC for added functionality.
- Operates within a temperature range of -5°C to 60°C for diverse environments.
- Complies with CSA and UL standards ensuring safety and reliability.
- Designed with a double break pole mechanism for enhanced electrical life.
Product Description
Schneider Electric LC1D32G7 contactor features a 110V AC coil with a 3-pole, 32 A rating and a power handling capacity of 2 HP at 120V, making it ideal for motor control and resistive load applications in industrial and commercial setups.
This contactor offers a robust dual breaking mechanism for each pole, ensuring long mechanical and electrical life. The screw-type terminals are IP20 rated for finger-safe operation with clear markings adhering to both North American and International standards.
Designed for versatile mounting, this device supports both DIN rail and panel installation, facilitating integration within various control systems. Its auxiliary contacts, including 1 NO and 1 NC configuration, enhance switching capabilities for complex control requirements.
Operating in a temperature range from -5°C to 60°C, the contactor is suitable for multiple environmental conditions. It meets prominent safety certifications such as CSA and UL, guaranteeing compliance and safety during operation.
The compact form factor with dimensions of 85mm length, 45mm width, and 92mm depth optimizes panel space. The LC1D32G7 contactor supports control circuits at 120V and contact voltage up to 690V AC/DC, addressing a wide spectrum of industrial automation demands.
Equipped with 3 normally open (NO) main contacts for efficient switching. Rated for operational current of 32A ensuring reliable performance. Includes 2 auxiliary contacts (1 NO and 1 NC) supporting additional control functions.
Screw connections provide secure and finger-safe wiring. Constructed for motor control and resistive load applications. Compliance with CSA and UL standards ensures safety and quality. Designed for easy DIN rail or panel mounting flexibility.
Operates safely between -5°C and 60°C ambient temperatures. Offers a double break pole mechanism for enhanced electrical durability.
This Contactor is widely applicable across industrial automation, manufacturing, HVAC systems, commercial electrical control panels, and other motor control applications requiring dependable switching performance.
Explore the Electrical Automation & Control Gear category on EnvMart for more Schneider Electric products and reliable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D32G7 contactor has a power rating of 2 HP at 120V, making it suitable for motor control applications.
This model operates with a coil voltage of 110V AC.
It features a 3-pole configuration, allowing for efficient switching in motor control applications.
The maximum contact voltage supported by the LC1D32G7 is 690V AC/DC.
The contactor is equipped with screw-type terminals that are IP20 rated for finger-safe operation.
This model has dimensions of 85mm in length, 45mm in width, and 92mm in depth.
The operational current rating for the LC1D32G7 is 32A, ensuring reliable performance in various applications.
It operates within a temperature range of -5°C to 60°C, suitable for diverse environmental conditions.
The LC1D32G7 can be easily mounted on DIN rails or panels, providing flexibility in installation.
This contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with CSA and UL standards, ensuring safety and reliability during operation.
This contactor is designed for motor control and resistive load applications in industrial and commercial setups.
