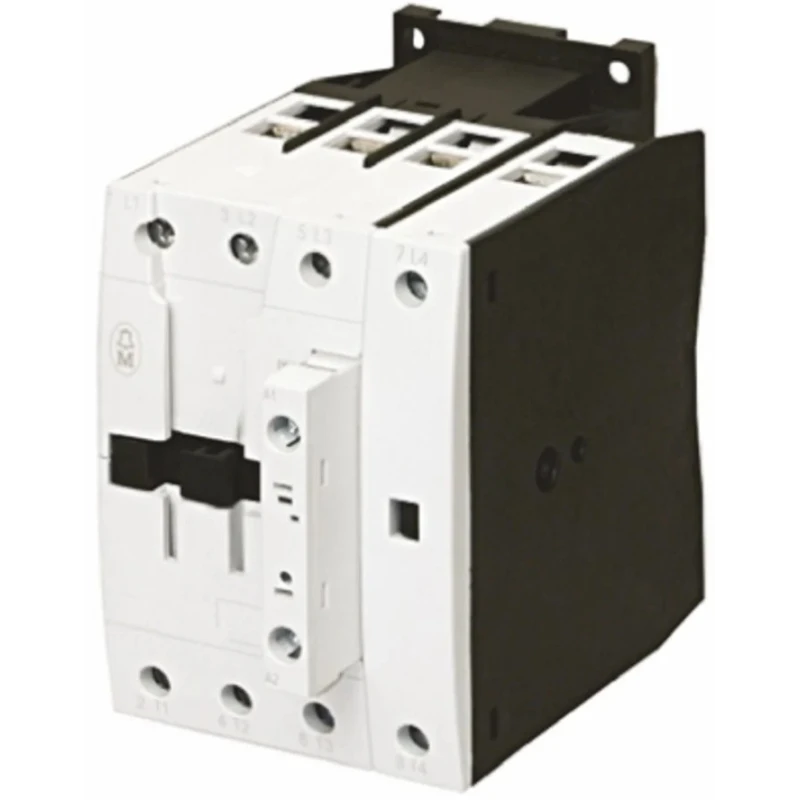

Eaton Industrial Motor Control Contactor, 110V AC Coil, 4-Pole, 80A, 22kW, 4 NO, 400V AC 109877 DILMP80(110V50HZ,120V60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 115mm |
| Model | 109877 DILMP80(110V50HZ,120V60HZ) |
| Depth | 147mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Standards/Approvals | EN 60947 |
| Contact Voltage | 400V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 4 NO |
| Contact Current | 80A |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
| Eaton DILM Contactor, 220 V ac, 230 V dc Coil, 3-Pole, 3.5 kW, 1NCBrand | Eaton |
Key Features
- Equipped with a 110V AC coil suitable for control voltage applications.
- Contains 4 poles with 4 normally open (NO) contacts for reliable switching.
- Rated for 80A contact current and capable of handling 22 kW motor loads.
- Mounts easily on DIN rail for straightforward installation.
- Suitable for motor control and resistive load functions.
- Operational current Ie is 80A, matching contact current ratings.
- Auxiliary contact configuration includes 1 normally open (NO) contact.
- Terminal connections are screw clamp type for secure wiring.
Product Description
Eaton 109877 DILMP80(110V50HZ,120V60HZ) industrial motor control contactor with a 110V AC coil offers a robust solution for switching high current motor loads up to 80A at 400V AC with a 22 kW power rating. This 4-pole contactor provides four normally open contacts ensuring reliable power delivery for motor and resistive loads.
Its DIN rail mount design allows straightforward installation in industrial automation and electrical control panels. The contactor features screw clamp terminals for secure connections and includes an auxiliary contact set with one normally open contact for additional control flexibility.
Engineered to operate in harsh industrial environments, it functions effectively between -25°C and 60°C ambient temperatures, compliant with EN 60947 standards. Its dimensions of 115mm length, 85mm width, and 147mm depth make it compact enough for efficient panel space usage.
The DILM series contactors from Eaton are designed for high operational reliability and compatibility with PLC systems, integrating an energy-efficient coil with an internal suppressor circuit to minimize electromagnetic interference.
110V AC coil voltage suitable for control circuits. Four poles with normally open contacts for motor control. 80A rated contact current ideal for motors up to 22 kW. Standard DIN rail mounting simplifies hardware integration.
Durable screw clamp terminals ensure secure wiring. Wide ambient operating temperature range supports diverse environments. Compliance with EN 60947 guarantees industrial safety and performance. Compact size facilitates use in space-constrained control panels.
Auxiliary contact configuration for extended control capabilities. Enhanced with an integrated suppressor circuit for coil protection.
This Eaton DILM contactor is ideal for industrial applications including factory automation, electrical distribution, mechanical engineering, and railway transportation systems where reliable motor switching is critical. Its robust construction ensures long service life and minimal maintenance.
Discover the full range of Eaton Contactors at EnvMart for your electrical automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMP80 contactor has a power rating of 22 kW.
This model can handle a maximum contact current of 80A.
The coil voltage for this contactor is 110V AC.
The contactor features 4 poles with 4 normally open (NO) contacts.
The dimensions of this contactor are 115mm in length, 85mm in width, and 147mm in depth.
It uses screw clamp type terminal connections for secure wiring.
The operational temperature range for the Eaton DILMP80 contactor is between -25°C and 60°C.
Yes, it is compliant with EN 60947 standards.
This contactor is designed for DIN rail mounting, allowing for straightforward installation.
It includes an auxiliary contact configuration with 1 normally open (NO) contact.
This contactor is suitable for motor control and resistive load functions in industrial applications.
It features an integrated suppressor circuit for coil protection, minimizing electromagnetic interference.
