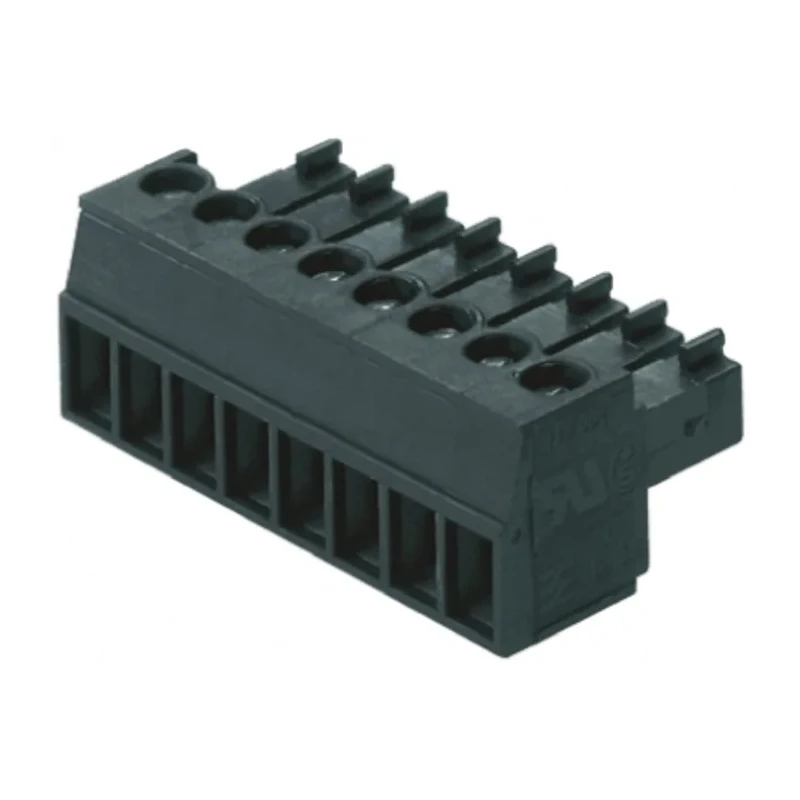

Weidmüller BC 3.81 Series Pluggable Terminal Block 8-Contact 3.81 mm Pitch 320 V 17.5 A Nylon Housing 1792820000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Straight |
| Current | 17.5A |
| Length | 30.48mm |
| Depth | 16.1mm |
| Width | 11.1mm |
| Housing Material | Nylon |
| Series | BC 3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-3876 Brand: [Weidmüller](https://in.rsdelivers.com/brands/weidmuller)Manufacturers Part No.: 1792820000 |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- The terminal block supports a current rating of 17.5 amperes.
- It features a single row with 3.81 mm pitch spacing between contacts.
- Constructed with durable black nylon housing for electrical insulation.
- Screw connection method ensures secure wire attachment.
- Compatible with wire sizes from 2 mm² up to 1.5 mm² (28 AWG to 16 AWG).
- Maximum operating voltage is 320 volts.
- The male connector orientation is straight for ease of installation.
- Complies with RoHS environmental standards.
Product Description
Weidmüller 1792820000 BC 3.81 Series Pluggable Terminal Block offers a reliable connection solution for electronic and electrical applications, supporting currents up to 17.5 A and voltage ratings of 320 V.
This 8-contact, single-row terminal block features a 3.81 mm pitch and is housed in robust black nylon to withstand electrical and environmental stresses.
The terminal block uses a screw clamping yoke mechanism for secure wire connections, suitable for wire cross-sections ranging from 0.2 mm² to 1.5 mm² (28 AWG to 16 AWG), ensuring versatility across a variety of wiring requirements.
Its straight male connector orientation facilitates straightforward mating with compatible headers, making it ideal for use in industrial control systems, automation equipment, and electronic instrumentation.
The compact form factor, measuring 30.48 mm length, 11.1 mm width, and 16.1 mm depth, allows for efficient PCB layout and space-saving designs. This product complies with RoHS directives, affirming its environmentally friendly manufacturing process and materials.
The terminal block supports a current rating of 17.5 amperes. It features a single row with 3.81 mm pitch spacing between contacts. Constructed with durable black nylon housing for electrical insulation. Screw connection method ensures secure wire attachment.
Compatible with wire sizes from 2 mm² up to 1.5 mm² (28 AWG to 16 AWG). Maximum operating voltage is 320 volts. The male connector orientation is straight for ease of installation. Dimensions are compact: length 30.48 mm, width 11.1 mm, and depth 16.1 mm.
Complies with RoHS environmental standards. Ideal for applications in industrial, manufacturing, electrical distribution, and automation sectors requiring dependable connector solutions. Explore our extensive range of Weidmüller connectors for quality and reliability at EnvMart.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 17.5 amperes.
The maximum operating voltage for this model is 320 volts.
The pitch spacing between contacts is 3.81 mm.
It is compatible with wire sizes from 2 mm² up to 1.5 mm² (28 AWG to 16 AWG).
The male connector orientation is straight, facilitating ease of installation.
The terminal block is constructed with durable black nylon housing for electrical insulation.
The dimensions are 30.48 mm in length, 11.1 mm in width, and 16.1 mm in depth.
This terminal block features 8 contacts.
It uses a screw connection method to ensure secure wire attachment.
This model complies with RoHS environmental standards.
It is typically used in industrial control systems, automation equipment, and electronic instrumentation.
The country of origin for this terminal block is China.
