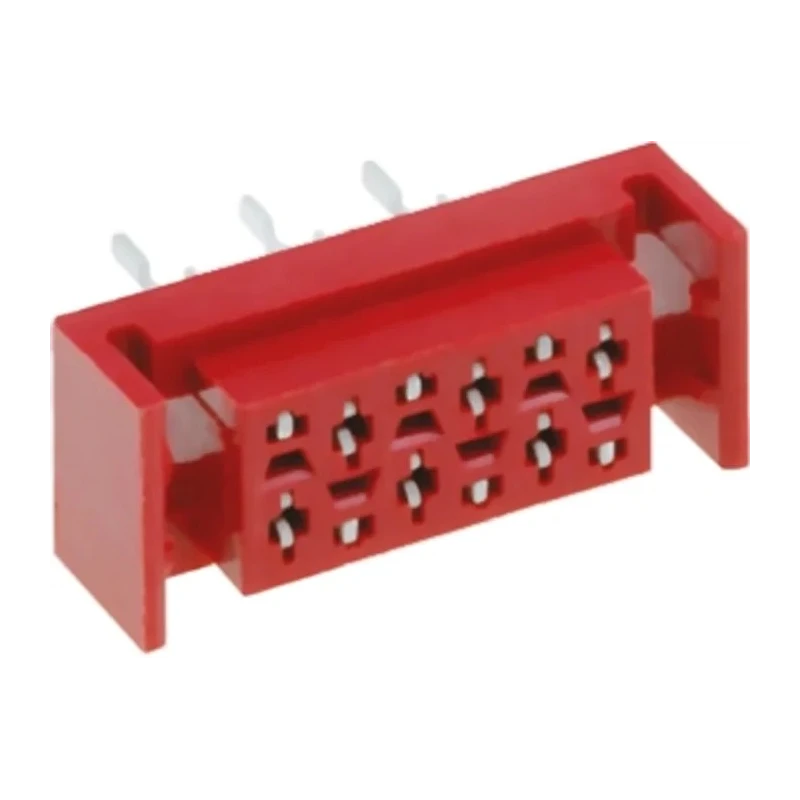

Amphenol Communications Solutions TMM Series Straight Through Hole PCB Socket, 6-Contact, 2 Row, 2.54 mm Pitch TMM-4-L-06-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 230V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 12A |
| Model | TMM-4-L-06-1 |
| Mount Type | Through Hole |
| Housing Material | Glass Reinforced Thermoplastic |
| Contact Material | Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-1268 Brand: [Amphenol Communications Solutions](https://in.rsdelivers.com/brands/amphenol-communications-solutions)Manufacturers Part No.: TMM-4-L-06-1 |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
Key Features
- The socket is rated for 230 volts and 12 amps current capacity.
- It features glass reinforced thermoplastic housing material for durability.
- The 2-row DIP female header design includes locking latch for improved retention.
- Contact material is bronze with tin plating to ensure good conductivity and corrosion resistance.
- Suitable for operation temperatures ranging from -40°C to 105°C.
- Termination type is solder with through hole mount for PCB connectivity.
- Connector system supports wire-to-board applications with straight orientation.
- Manufactured in China under Amphenol’s TMM series specifications.
Product Description
Amphenol Communications Solutions TMM-4-L-06-1 is a high-quality PCB socket connector from the TMM series designed for demanding electronic and industrial applications requiring reliable wire-to-board connections.
This 6-contact, 2-row DIP female header features a 2.54 mm pitch and is constructed using glass reinforced thermoplastic housing for enhanced mechanical robustness and insulation. It supports a voltage rating of 230 V and current up to 12 A, suitable for various industrial, communication, and electronic equipment.
The contacts, made from bronze and plated with tin, provide excellent conductivity and corrosion resistance. The locking latch system ensures improved retention and secure mating, which is essential in vibration-prone environments.
Designed to operate under temperatures from -40°C up to 105°C, this connector adapts well to harsh environmental conditions encountered in manufacturing, telecommunication, and control systems.
The soldered, through-hole mount type allows steady and durable PCB mounting. Its straight orientation facilitates neat wiring and assembly in PCB designs. This TMM series connector readily mates with complementary TMM MicroMatch IDC male connectors to form seamless wire-to-board or board-to-board interfaces.
The socket’s robust housing material ensures long-term mechanical stability. Locking latch mechanism provides better mating security preventing accidental disconnections. High current and voltage ratings support demanding electrical requirements.
Operating temperature range is suitable for industrial and commercial electronic equipment. The TMM series durability supports applications in industrial automation, communication devices, and electronic instrumentation.
This product is manufactured in China under Amphenol Communications Solutions’ quality standards. For more components and specialized connectors, explore the PCB Sockets category on EnvMart for reliable industrial and electronic connectivity solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a voltage of 230 volts and a current capacity of 12 amps.
This model operates within a temperature range of -40°C to 105°C.
The housing is made of glass reinforced thermoplastic, while the contacts are bronze with tin plating for conductivity and corrosion resistance.
It features 6 contacts arranged in a 2-row configuration.
It uses a solder termination type with a through-hole mount for PCB connectivity.
The pitch of this socket is 2.54 mm.
It includes a locking latch that improves retention and ensures secure mating, which is important in environments prone to vibration.
This model supports a wire-to-board connector system.
It is manufactured in China under Amphenol’s quality standards.
The orientation of this connector is straight, facilitating neat wiring in PCB designs.
Yes, it is designed for demanding electronic and industrial applications, including manufacturing and telecommunication systems.
It is suitable for wire-to-board applications in various industrial, communication, and electronic equipment.
