Microchip 12 Bit SPI Digital to Analogue Converter DAC MCP4821-E/SN

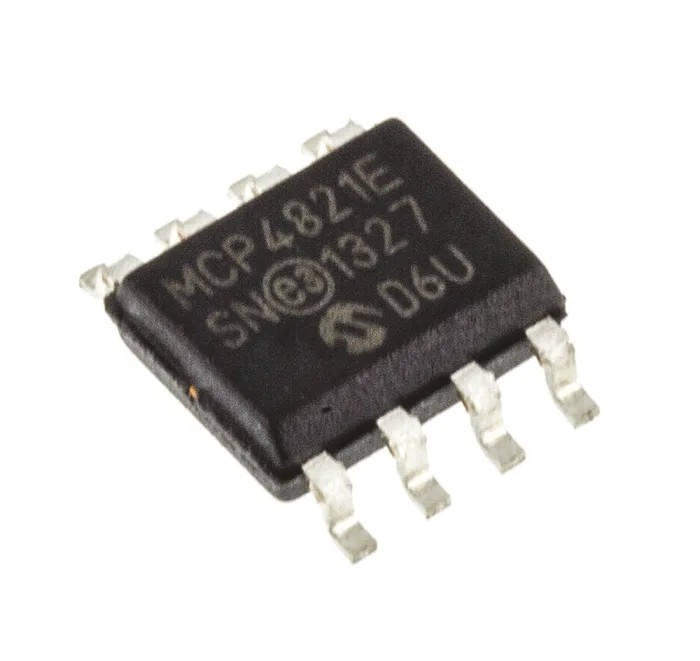

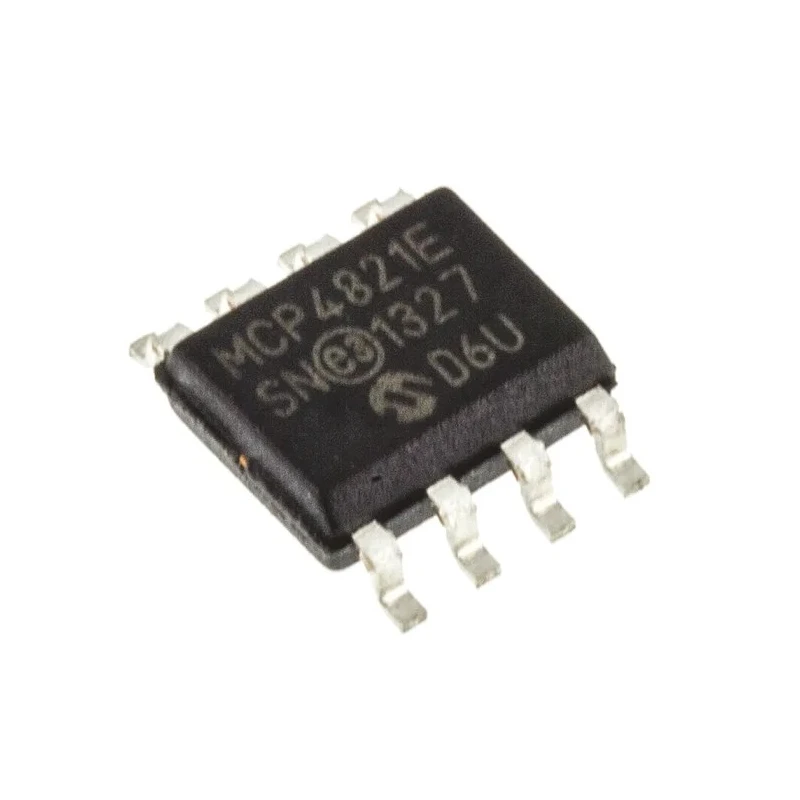

The Microchip MCP4821-E/SN is a high-performance 12-bit Digital to Analogue Converter (DAC) designed with a resistor string architecture and an SPI interface for efficient and accurate conversion of digital signals to analogue voltage outputs. This device is packaged in a compact 8-pin SOIC surface mount package making it ideal for space-conscious PCB designs and industrial electronic devices.

Operating within a supply voltage range of 2.7V to 5.5V, the MCP4821-E/SN DAC maintains stable operation in a wide array of environments, supported by an inclusive operating temperature range from -40°C to 125°C. The internal voltage reference simplifies the design by eliminating the need for an external voltage reference source, thus reducing component count and improving overall system reliability.

The DAC offers a fast settling time of 4.5 microseconds, making it suitable for real-time signal processing in industrial controls, signal conditioning, and instrumentation. Its analogue voltage output facilitates seamless integration with analog control systems, sensors, and measurement devices.

This digital to analogue converter is commonly used across electronics and electrical engineering sectors including industrial automation, data acquisition systems, laboratory instruments, and embedded systems development.

Though it does not carry specific automotive or other standard approvals, its robust electrical and physical specifications make it versatile for various semiconductor and power converter applications.

Utilizes resistor string architecture for stable and reliable conversion. Operates with a supply voltage range of 2.7V to 5.5V suitable for various applications. Compact 8-pin SOIC surface mount package enables efficient PCB integration.

High operating temperature range from -40°C up to 125°C for robust industrial use. Fast settling time of 4.5 microseconds allows rapid signal conversion and response. Internally references voltage ensuring consistent output without external components.

No automotive or industry standard certifications specified, designed mainly for general electronic applications. Output type is analogue voltage compatible with diverse electronic systems. Explore our Semiconductor and Digital to Analogue Converter category at EnvMart for more precision components and solutions from trusted brands like Microchip.
