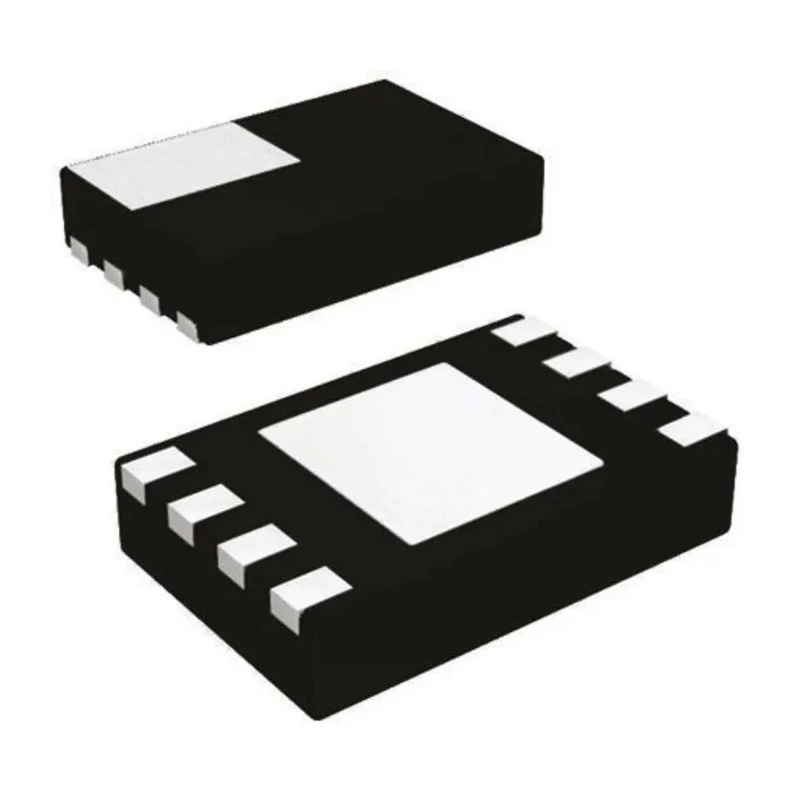

Microchip Operational Amplifier MCP6402T-E/MNY, 1 MHz Gain Bandwidth, 8-Pin Surface Mount TDFN Package, 6V Max Supply

Microchip MCP6402T-E/MNY is a high-quality operational amplifier featuring dual channels with a gain bandwidth product of 1 MHz designed for surface mount applications in an 8-pin TDFN package. Operating at a maximum supply voltage of 6V and minimum of 1.8V, it suits a wide range of electronic circuit designs requiring moderate frequency response and precision.

This amplifier offers a slew rate of 0.5 V/μs, which balances speed and stability for signal processing tasks. Its exceptionally low input bias current of 100 pA and input offset current of 1 pA improve signal fidelity in sensitive applications.

Designed for robust operation, the MCP6402T-E/MNY supports an operating temperature range from -40°C up to 125°C, making it suitable for automotive and industrial environments. The device meets the AEC-Q100 automotive standard and complies with RoHS regulations, ensuring compliance with environmental and safety standards.

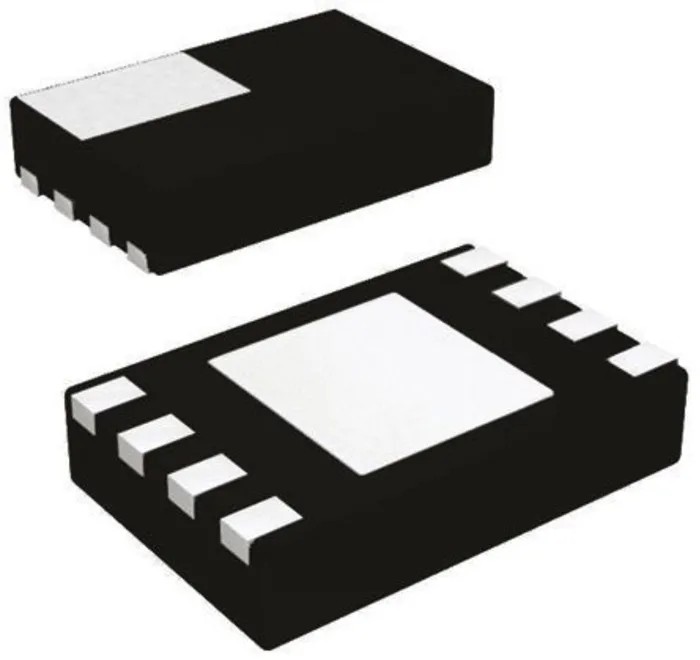

The compact package dimensions of 3 mm width, 2 mm length and 0.75 mm height facilitate easy integration into space-constrained PCB layouts. The maximum output current capability of 30 mA enables driving moderate load requirements effectively.

Maximum supply voltage is 6 volts. Minimum supply voltage starts at 1.8 volts. Slew rate is 0.5 volts per microsecond ensuring moderate response speed. Low input bias current of 100 picoamperes enhances signal accuracy. Operating temperature range extends from -40°C to 125°C for reliability in harsh environments.

High output current capability up to 30 milliamperes supports a variety of loads. Small form factor with dimensions 3 mm width, 2 mm length, and 0.75 mm height. Conforms to automotive standard AEC-Q100 for quality assurance.

RoHS compliant ensuring environmental safety. Manufactured in Thailand with high manufacturing standards.

This operational amplifier is ideal for industrial electronics, automotive signal processing, instrumentation, and general-purpose amplification tasks. Its compact size and robust electrical characteristics make it suited for use in embedded systems, sensor interfaces, and control circuits.
