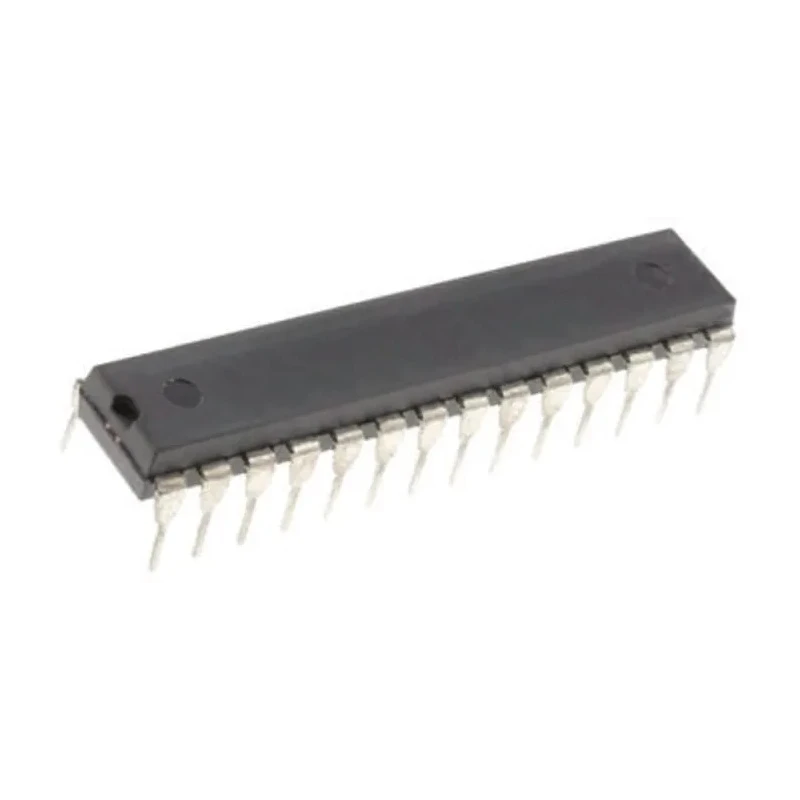

Microchip PIC16F1516-I/SP 8-bit PIC Microcontroller 20 MHz 14kB FLASH 28-Pin SPDIP

Microchip PIC16F1516-I/SP is a highly reliable 8-bit PIC microcontroller designed with Microchip's enhanced mid-range architecture offering efficient performance and peripheral flexibility. Operating at a maximum clock speed of 20 MHz, this device features 14kB FLASH program memory and 512-bit RAM to support complex embedded applications.

The microcontroller includes 25 programmable input/output pins suitable for versatile interfacing requirements. It integrates a 17-channel 10-bit analogue-to-digital converter, enabling precise measurement and signal conditioning for analog signals.

Designed to operate within supply voltage ranges of 2.5V to 5.5V and withstand temperatures ranging from -40°C to 85°C, it is suitable for industrial and commercial embedded systems applications. The power dissipation is limited to 800 mW to ensure energy-efficient operation.

This model comes in a 28-pin SPDIP through-hole package measuring 35.56 mm in length and 7.62 mm in width with a height of 3.81 mm, supporting ease of circuit board prototyping and assembly. The device supports RISC architecture with 49 instructions and a 16-level deep hardware stack for robust multitasking.

Peripheral features include two capture/compare/PWM modules, voltage reference module, master synchronous serial port supporting SPI and I2C communication, and enhanced USART for serial data transmission. Advanced power features like power-on reset, low power brown-out reset, watchdog timer, and extended low voltage programming enhance reliability and in-circuit programmability.

These advanced features make the PIC16F1516 suitable for applications in industrial control, automation, instrumentation, consumer electronics, and educational projects requiring compact and efficient microcontroller solutions.

Operates at maximum 20 MHz clock frequency delivering up to 5 MIPS processing speed. Includes 14kB FLASH program memory and 512-bit RAM. Offers 25 programmable I/O pins and 17-channel 10-bit ADC for analog interfacing. Supports supply voltage range of 2.5 V to 5.5 V with 800 mW maximum power dissipation.

Packaged in 28-pin SPDIP through-hole form factor measuring 35.56 mm x 7.62 mm x 3.81 mm. Explore the extensive range of Microcontrollers and semiconductor components on EnvMart for your electronics and embedded design needs.
