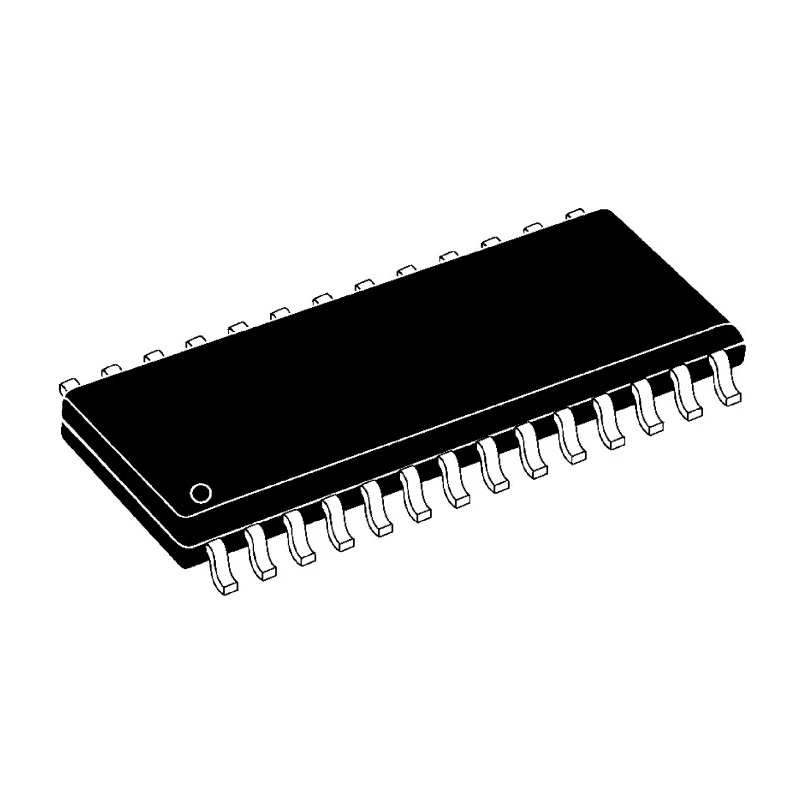

Microchip PIC16F1518-I/SO 8-bit PIC Microcontroller, 20 MHz, 28kB FLASH, 28-Pin SOIC

Microchip PIC16F1518-I/SO is an 8-bit PIC microcontroller featuring a high-performance enhanced mid-range RISC architecture. It operates at a maximum clock frequency of 20 MHz and integrates 28kB of FLASH memory, providing robust program storage. Packaged in a 28-pin Small Outline Integrated Circuit (SOIC) surface mount form factor, it offers compact dimensions of 17.9 mm length, 7.5 mm width, and 2.35 mm height. This microcontroller is designed to deliver up to 5 MIPS processing speed with a 16-level hardware stack and 49-instruction set, ensuring efficient execution of application code.

Equipped with 25 programmable input/output pins, the device supports versatile interfacing capabilities. It includes 1.024 kB of RAM and features 17 channels of 10-bit Analog-to-Digital Converters (ADCs), enabling precision analog sensing. Two timers (one 16-bit and two 8-bit) facilitate accurate timing and pulse-width modulation applications. Integrated peripherals include Master Synchronous Serial Port (MSSP) supporting SPI and I2C communication protocols, an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), and voltage reference modules to support analog functions.

Power management functions such as Power-On Reset (POR), Power-Up Timer (PWRT), programmable Low Power Brown-Out Reset (LPBOR), and Extended Watchdog Timer (WDT) help maintain reliable operation in embedded environments. The device supports In-Circuit Serial Programming (ICSP), In-Circuit Debug (ICD), and Enhanced Low-Voltage Programming (LVP), facilitating development and programming flexibility.

Designed for industrial applications, the PIC16F1518-I/SO operates reliably over a temperature range of -40°C to 85°C. Its maximum power dissipation rating is 800 mW, and it supports a supply voltage range from 2.5 V to 5.5 V. The microcontroller is RoHS compliant and manufactured in Thailand.

8-bit PIC microcontroller with enhanced mid-range RISC architecture. 20 MHz maximum clock frequency and 28 kB FLASH program memory. 25 programmable I/O pins and 1.024 kB RAM. Two timers and 17 x 10-bit ADC channels. Integrated SPI, I2C, and EUSART serial communication.

Power management features ensuring robust operation. Surface mount 28-pin SOIC package with compact dimensions. Suitable for industrial temperature range -40°C to 85°C. RoHS compliant electronics component.

This Microchip PIC16F1518-I/SO microcontroller is ideal for embedded systems, industrial automation, instrumentation, and other electronics applications requiring compact, low-power, and versatile microcontroller solutions. Explore other Microchip Microcontrollers from EnvMart for comprehensive electronic design options.
