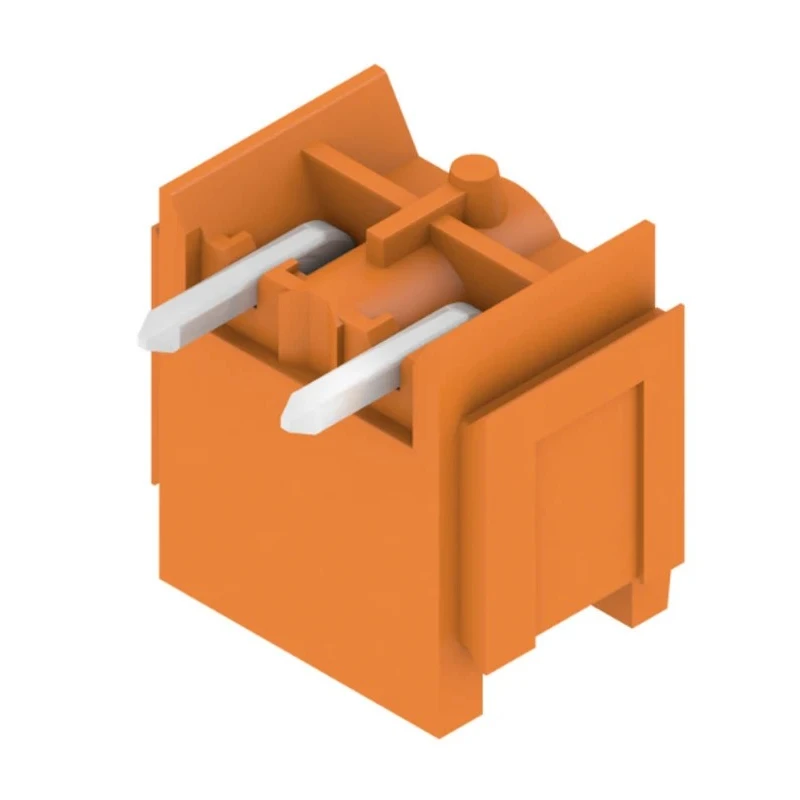

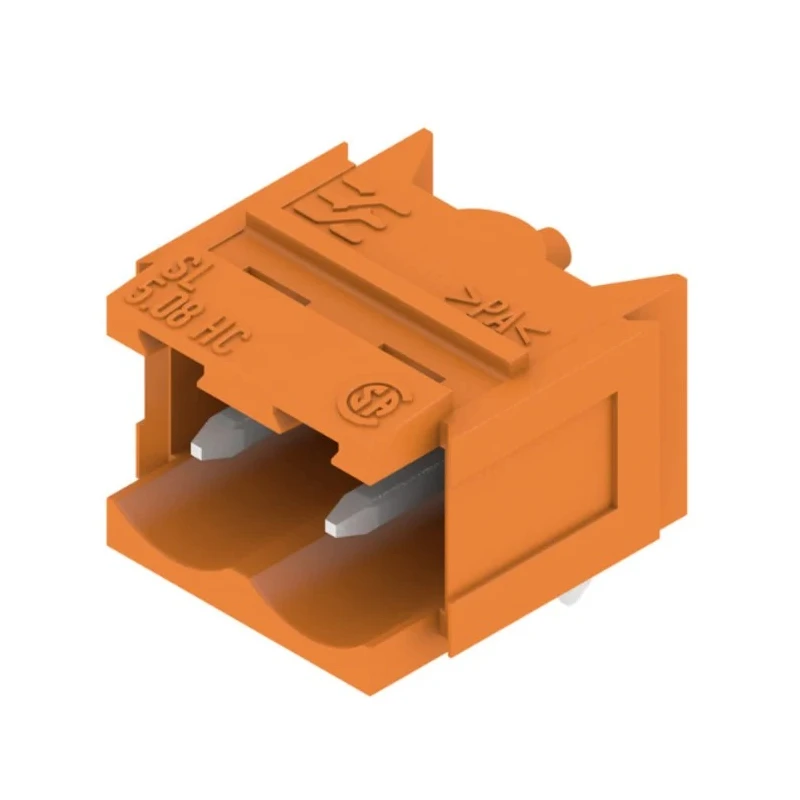

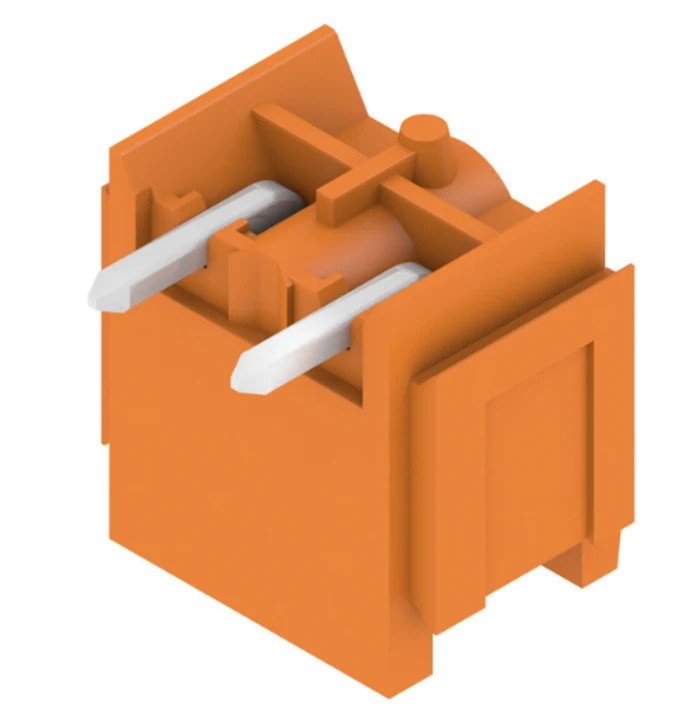

Weidmüller SL Series Pluggable Terminal Block 2-Contact 5.08 mm Pitch 1 Row 18A 400V Housing Polybutylene 1148030000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 18A |
| Length | 11.63mm |
| Depth | 12mm |
| Width | 11.92mm |
| Housing Material | Polybutylene Terephthalate |
| Series | SL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | IEC 60664-1, IEC 61984, UL 1059, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 733-0698Brand: WeidmüllerManufacturers Part No.: 1148030000 |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- The right angle design optimizes space for compact circuit board layouts.
- Constructed with durable Polybutylene Terephthalate housing in bright orange for easy identification.
- Solder connection method ensures robust and permanent wire attachment.
- Compatible with standard PCB layouts featuring 5.08 mm pitch.
- Designed to handle high current capacity of up to 18A for diverse applications.
- Meets IEC 60664-1, IEC 61984, UL 1059, and RoHS standards.
- Ideal for industrial automation control systems and electronic equipment.
- Facilitates efficient cable management and mechanical assembly integration.
Product Description
Weidmüller 1148030000 SL Series Pluggable Terminal Block features a 2-contact design with a 5.08 mm pitch and a single row layout, engineered for 18A current ratings and 400V voltage suitability. Its polybutylene terephthalate housing provides exceptional durability and electrical insulation, while the bright orange color enhances visibility for quick identification during assembly and maintenance.
The terminal block's right angle orientation optimizes space usage on PCBs, allowing compact device designs and improved cable management in space-constrained environments. The solder wire connection method secures a permanent and strong bond between the terminal block and PCB, reducing mechanical strain and improving reliability, especially under vibration or harsh industrial conditions.
This product complies with key standards including IEC 60664-1, IEC 61984, UL 1059, and RoHS, ensuring safe and reliable electrical performance. The 5.08 mm pitch matches common PCB layouts facilitating easy integration into automation, industrial electronic equipment, and electrical enclosures.
Applications include use in automation control systems, mechanical assemblies requiring secure wire-to-board connections, prototyping devices, and industrial electronic products. The compact form factor and optimized wave soldering capabilities with a 3.2 mm pin length support efficient production workflows.
The right angle design optimizes space for compact circuit board layouts. Durable Polybutylene Terephthalate housing ensures electrical safety and longevity. Solder termination method provides strong and permanent wire connections.
Bright orange color improves terminal block visibility. Supports high current of up to 18A and voltage rating of 400V. Complies with IEC 60664-1, IEC 61984, UL 1059, and RoHS standards. Compatible with standard 5.08 mm pitch PCB layouts.
Ideal for industrial automation and electronic equipment. Explore more products like Weidmüller SL Series Pluggable Terminal Blocks in the Electronics & Electricals category at EnvMart for reliable industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 18A and a voltage of 400V.
It is constructed with a Polybutylene Terephthalate housing, which provides durability and electrical insulation.
The pitch size of this terminal block is 5.08 mm, making it compatible with standard PCB layouts.
This model features 2 contacts in a single row layout.
The terminal block is designed with a right angle orientation, optimizing space usage on PCBs.
It complies with IEC 60664-1, IEC 61984, UL 1059, and RoHS standards, ensuring safe electrical performance.
The terminal block is bright orange, which enhances visibility for quick identification during assembly and maintenance.
It uses a solder wire connection method, ensuring a robust and permanent bond between the terminal block and PCB.
The dimensions are approximately 11.63 mm in length, 12 mm in depth, and 11.92 mm in width.
It is suitable for applications in industrial automation control systems, mechanical assemblies, and electronic equipment.
The country of origin for this terminal block is Germany.
This model features a male connector gender.
