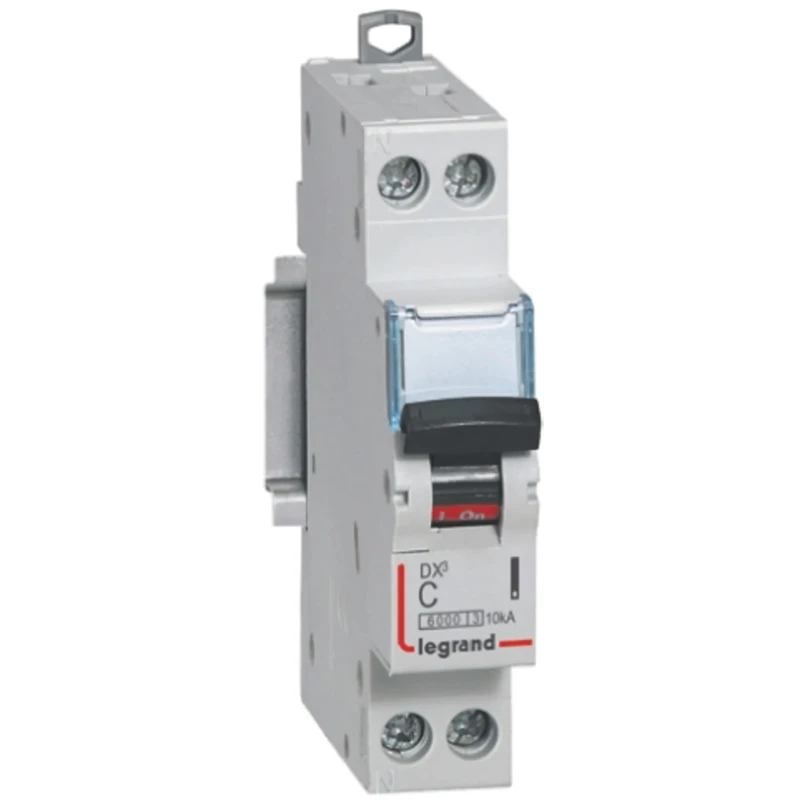

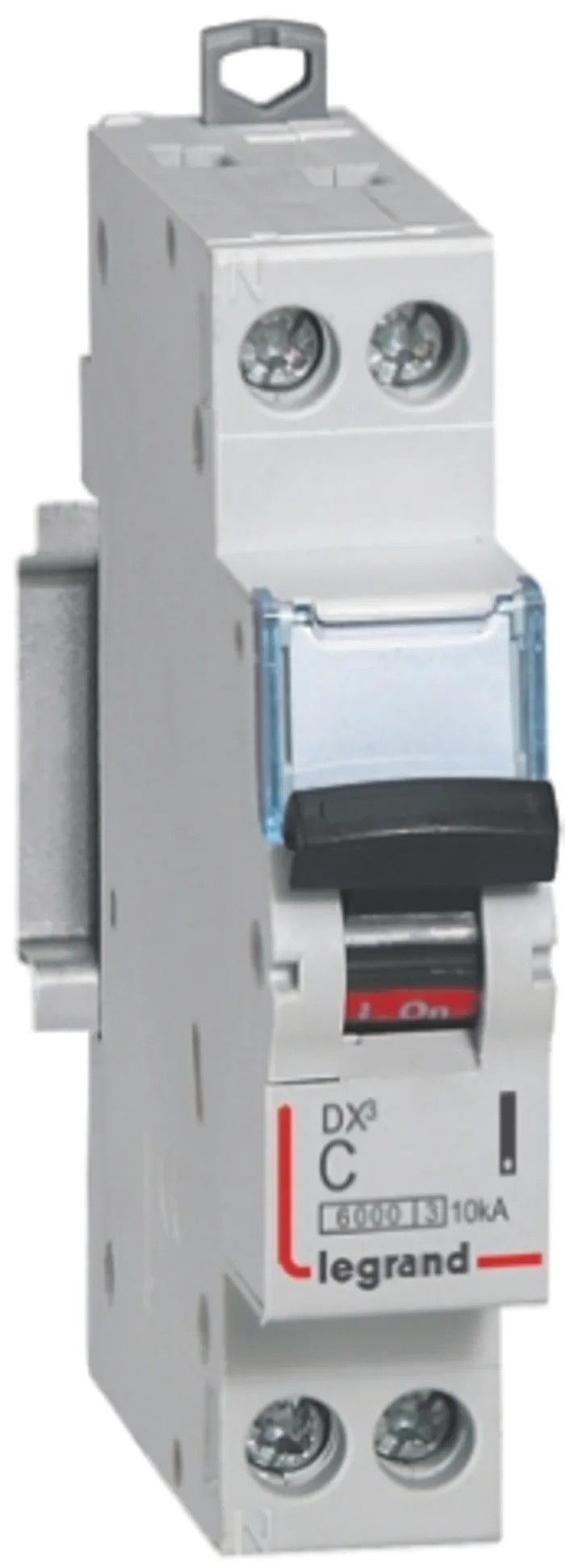

Legrand DX DX3 Miniature Circuit Breaker, 1-Pole, 1A, Type C, 230V AC, 10 kA Breaking Capacity 4 076 92
Specifications
| Country of Origin | France |
|---|---|
| Range | DX |
| Brand | Legrand |
| Height | 94.8mm |
| Model | 4 076 92 |
| Connection Type | Screw / Screw or Auto / Screw |
| Depth | 77.6mm |
| IP Rating | IP40, IP20 |
| Width | 17.8mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | DX3 |
| Terminal type | Screw Cage Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | EN 60947-2, NF EN 60898-1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-9679Brand: LegrandManufacturers Part No.: 4 076 92 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Magnetic |
| C type | Detect C components faults |
Key Features
- This single-pole MCB provides a 1 Ampere current rating.
- Tripping characteristic is Type C for selective short circuit protection.
- Rated for 230V AC voltage operation ensuring compatibility with AC power systems.
- High breaking capacity of 10 kA for enhanced safety under fault conditions.
- Designed for DIN rail mounting offering easy installation in control panels.
- Terminals feature screw cage design for secure wire connections.
- Protected with IP40 and IP20 ratings for dust ingress protection.
- Conforms to EN 60947-2 and NF EN 60898-1 standards ensuring quality and compliance.
Product Description
Legrand 4 076 92 is a high-quality DX DX3 series Miniature Circuit Breaker designed for industrial and commercial electrical protection applications. This 1-pole circuit breaker provides a current rating of 1 Ampere with Type C tripping characteristics, suitable for detecting and isolating short circuit faults in electrical circuits effectively.
Rated to operate at 230V AC with a robust breaking capacity of 10 kiloamperes, this MCB ensures superior safety and reliability during high fault current events. It is mounted on a DIN rail for straightforward integration into electrical panels and switchboards, utilizing screw cage terminals for secure and stable wire connections.
With compact dimensions (Height: 94.8mm, Width: 17.8mm, Depth: 77.6mm) and IP40/IP20 ingress protection ratings, it offers resistance against dust and ingress, prolonging device life and maintaining performance. The magnetic tripping mechanism provides prompt activation to prevent electrical hazards.
Legrand 4 076 92 complies with international standards EN 60947-2 and NF EN 60898-1, assuring adherence to stringent safety and quality measures. Manufactured in France, this product is ideal for use in industrial, commercial, and residential electrical distribution systems requiring high precision circuit protection.
This single-pole MCB provides a 1 Ampere current rating. Tripping characteristic is Type C for selective short circuit protection. Rated for 230V AC voltage operation ensuring compatibility with AC power systems. High breaking capacity of 10 kA for enhanced safety under fault conditions.
Designed for DIN rail mounting offering easy installation in control panels. Terminals feature screw cage design for secure wire connections. Protected with IP40 and IP20 ratings for dust ingress protection. Compact dimensions: Height 94.8mm, Width 17.8mm, Depth 77.6mm.
Conforms to EN 60947-2 and NF EN 60898-1 standards ensuring quality and compliance. Manufactured in France with magnetic tripping mechanism for timely disconnection. Explore the Legrand range at EnvMart for reliable circuit protection solutions suitable for various electrical automation and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1 Ampere.
It has a high breaking capacity of 10 kA, ensuring safety during fault conditions.
It is rated for operation at 230V AC, making it compatible with standard AC power systems.
The dimensions are 94.8mm in height, 17.8mm in width, and 77.6mm in depth.
It features a magnetic tripping mechanism for prompt activation during faults.
It is designed for DIN rail mounting, allowing for easy installation in control panels.
The terminals feature a screw cage design for secure wire connections.
It has IP40 and IP20 ratings, providing protection against dust ingress.
It conforms to EN 60947-2 and NF EN 60898-1 standards, ensuring quality and compliance.
The tripping characteristic is Type C, suitable for detecting short circuit faults.
It is manufactured in France, reflecting its quality and compliance with international standards.
This model belongs to the DX3 series of miniature circuit breakers.
