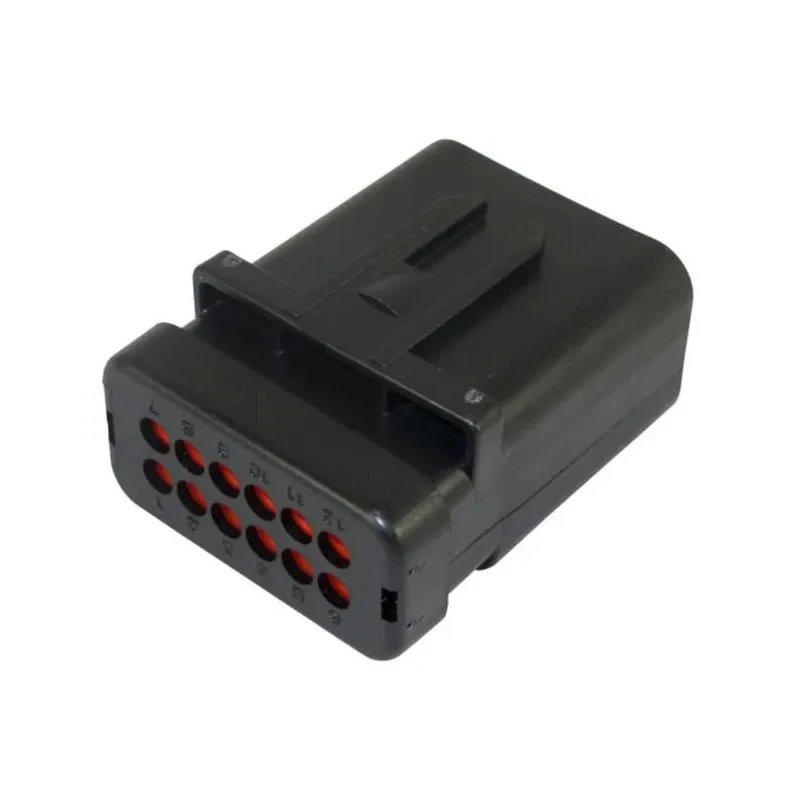

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 12 Way Crimp Termination 776539-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 26.65mm |
| Model | 776539-1 |
| Depth | 47.55mm |
| IP Rating | IP67 |
| Width | 37.6mm |
| Gender | Male |
| Mount Type | Clip |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU RoHS, EU ELV |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-6878Brand: TE ConnectivityManufacturers Part No.: 776539-1 |
| Number of Contacts | 12 |
Key Features
- Features a 12-contact male connector with crimp termination.
- Red color coding provides easy identification and prevents mismating.
- Maintains high durability with fibreglass reinforced polybutylene terephthalate housing.
- Designed for IP67 rating, offering protection against dust and water ingress.
- Supports a current rating of 13A suitable for automotive electrical systems.
- Operates reliably within temperature range of -40°C to 125°C.
- Includes a clip mount type and 2 rows of contacts for secure connection.
- Complies with EU RoHS and EU ELV environmental standards.
Product Description
TE Connectivity 776539-1 AMPSEAL 16 Automotive Connector Male Red Clip 12 Way Crimp Termination is engineered to provide secure and sealed electrical connections in automotive environments. Constructed with fibreglass reinforced polybutylene terephthalate housing, it ensures high mechanical and thermal resilience, suitable for harsh conditions.
The connector features 12 male contacts arranged in 2 rows and terminated with crimp technology, facilitating reliable electrical contact and ease of assembly. The red color coding along with integral primary latch reinforcement assists in preventing mismating and ensuring correct installation.
This AMPSEAL 16 series connector is rated for a current of 13A and withstands operating temperatures from -40°C to 125°C, complying with both EU RoHS and EU ELV standards. The IP67 rating guarantees protection against dust ingress and water immersion, making it ideal for automotive and industrial use cases requiring robust sealing.
The connector's design includes a clip mounting type, a reduced diameter wire seal compatible with wire sizes from 1.30 to 2.54 mm, ensuring optimal strain relief and environmental protection. Common applications include automotive electrical systems, industrial machinery wiring, and harsh environment power distribution.
Features a 12-contact male connector with crimp termination. Red color coding provides easy identification and prevents mismating. Durable fibreglass reinforced polybutylene terephthalate housing. IP67-rated sealing for dust and water protection.
Supports 13A current rating for automotive electrical systems. Operating temperature range from -40°C to 125°C. Two contact rows with clip mounting for secure installation. Compliant with EU RoHS and EU ELV standards. Reduced diameter wire seal fits wire sizes 1.30 to 2.54 mm.
Suitable for automotive and industrial connector applications. Explore more automotive and industrial connectors from TE Connectivity on EnvMart for reliable and high-performance electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 13A, making it suitable for automotive electrical systems.
It has an IP67 rating, providing protection against dust ingress and water immersion.
The connector operates reliably within a temperature range of -40°C to 125°C.
This automotive connector features 12 male contacts arranged in 2 rows.
It utilizes crimp termination technology for secure electrical contact.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, ensuring high durability.
The dimensions of this model are 26.65 mm in height, 37.6 mm in width, and 47.55 mm in depth.
The connector is red, which provides easy identification and helps prevent mismating during installation.
It features a clip mount type for secure installation.
Yes, it complies with EU RoHS and EU ELV environmental standards.
It is compatible with wire sizes ranging from 1.30 to 2.54 mm, ensuring optimal strain relief and environmental protection.
This model is suitable for automotive electrical systems, industrial machinery wiring, and harsh environment power distribution.
