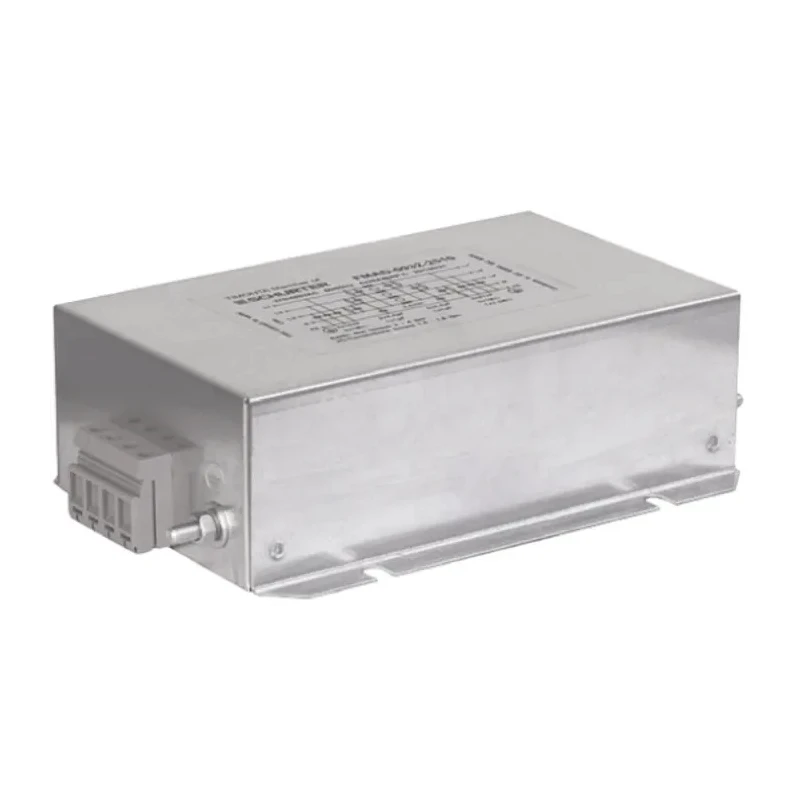

Schurter RFI Filter FMAD-0932-2510 25A 480V AC 50Hz/60Hz Screw Mount 3 Phase

Schurter FMAD-0932-2510 is a robust RFI filter designed for three-phase power lines, delivering high attenuation to suppress electromagnetic interference in industrial and electronic systems. It operates effectively at both 50Hz and 60Hz, making it suitable for various international power standards.

The single-stage metal-cased chassis mount filter utilizes screw mounting and termination styles, ensuring secure mechanical and electrical connections. Its electrical ratings include a maximum continuous current of 25A and a maximum voltage rating of 480V AC, enabling it to be used in demanding industrial environments.

With a capacitance of 4.4μF and inductance of 2.6mH, the filter provides reliable filtering performance. It is engineered to withstand operating temperatures from -25°C up to 100°C, supporting reliable operation in harsh conditions.

The device features minimal leakage current of 5mA and low resistance of 15mΩ, contributing to overall energy efficiency. Physical dimensions of the filter are 237mm in length, 66mm in height, and 151mm in depth, facilitating integration into existing equipment layouts.

Operates at 50Hz and 60Hz frequencies for international compatibility. Single-stage metal casing ensures durability and effective shielding. Screw mounting and termination provide reliable mechanical fixation. Capacitance of 4.4μF and inductance of 2.6mH optimize noise attenuation.

Designed for industrial and electronic equipment EMI control applications. Wide operating temperature range from -25°C to 100°C supports harsh environments. Low leakage current (5mA) and resistance (15mΩ) minimize power loss.

Compact dimensions enable easy installation in control panels.

This RFI Filter is ideal for usage in electronic components, power & connectors, and EMI filter categories, enhancing electromagnetic compatibility and ensuring reliable operation of electrical equipment in industrial, commercial, and laboratory settings. Schurter products are known for quality and reliability, fitting a broad range of power line filter needs.
