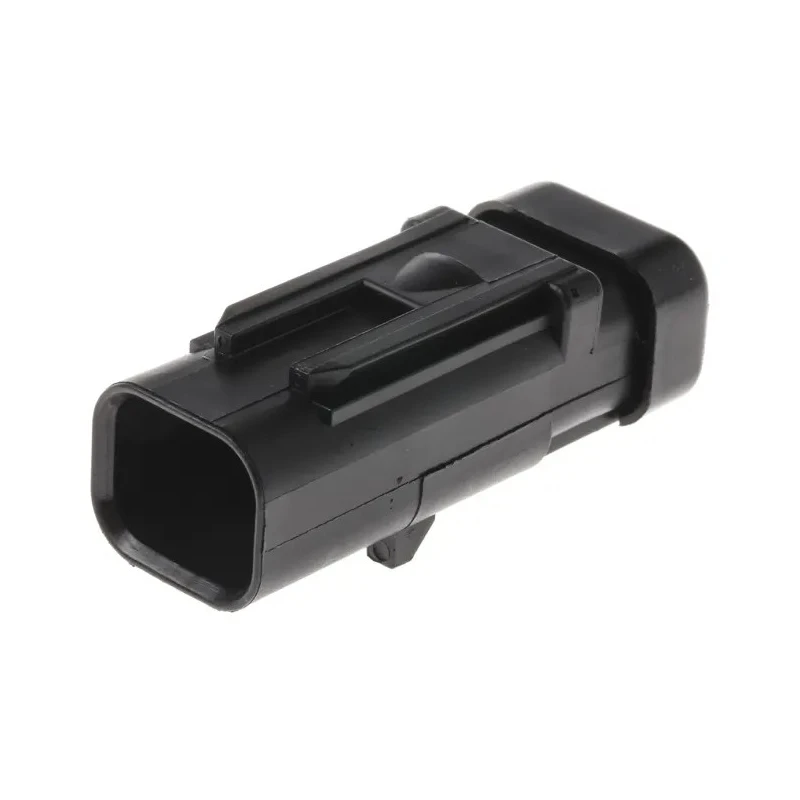

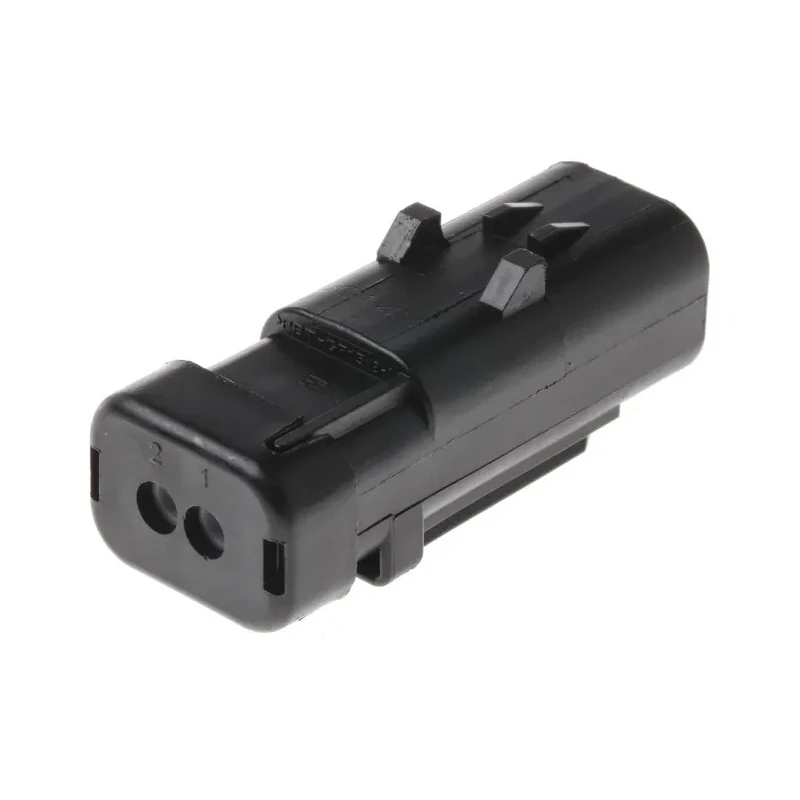

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 2 Way Crimp Termination 776534-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 18.93mm |
| Model | 776534-1 |
| Depth | 47.55mm |
| IP Rating | IP67 |
| Width | 19.6mm |
| Gender | Male |
| Mount Type | Clip |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | EU ELV, EU RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-6853Brand: TE ConnectivityManufacturers Part No.: 776534-1Distrelec Article No.: 30166167 |
| Number of Contacts | 2 |
Key Features
- This connector features 2 contacts arranged in 1 row ensuring compact design.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.
- Rated for a current of 13A with IP67 protection for dust and water resistance.
- The male connector type is terminated by crimping and mounts using a clip for easy installation.
- Suitable for operation in temperatures ranging from -40°C to 125°C.
- Color-coded red housing with integral primary latch reinforcement to prevent mismating.
- Meets EU ELV and EU RoHS standards ensuring regulatory compliance.
- The connector accepts wire size range of 1.30 to 2.54 mm diameter for versatile wiring options.
Product Description
TE Connectivity 776534-1 AMPSEAL 16 Automotive Connector is an essential component in automotive electrical systems, offering robust and reliable signal and power transmission. This male connector with red housing features a clip mount mechanism and is designed for 2-way crimp termination applications. It provides excellent resistance to environmental factors with an IP67 rating, making it suitable for harsh automotive conditions.
The connector’s housing material is a fibreglass reinforced polybutylene terephthalate, ensuring high mechanical strength and thermal stability across a broad operation temperature range from -40°C to 125°C. It supports a current capacity of 13A and is configured with a single row of 2 contacts, optimized for compact integration.
Its color-coded design and integral primary latch reinforcement secure a fail-safe mating and help prevent connector mismating. The AMPSEAL 16 series connectors are widely used in automotive, industrial, and transportation electrical applications requiring sealed and vibration-resistant connections.
These connectors comply with EU ELV and RoHS directives, reinforcing environmental and safety standards. Typical wire sizes accommodated range from 1.30 to 2.54 mm, making this connector flexible for various wire gauges.
Durable fibreglass reinforced polybutylene terephthalate housing. IP67 rated for dust and water ingress protection. Rated current of 13A for reliable power transmission. Mount type is a secure clip for ease of use. Operating temperature from -40°C to 125°C suitable for automotive environments.
Color coded red with primary latch reinforcement to prevent mismating. Compact dimensions of 18.93mm x 19.6mm x 47.55mm. 2 contacts in a single row configuration. RoHS and EU ELV compliant for regulatory adherence.
This automotive connector is ideal for electrical power and signal distribution in vehicles, machinery, and industrial equipment. It supports harsh environment applications, ensuring connectivity in demanding conditions. Explore more Automotive Connectors and related components for your projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 13A, making it suitable for reliable power transmission in automotive applications.
It features a crimp termination type, allowing for secure and efficient connections in automotive electrical systems.
The operating temperature range for this model is from -40°C to 125°C, suitable for harsh automotive environments.
This connector has an IP67 rating, providing protection against dust and water ingress, which is essential for automotive applications.
The housing is constructed from fibreglass reinforced polybutylene terephthalate, ensuring high mechanical strength and thermal stability.
This automotive connector features 2 contacts arranged in a single row configuration, optimized for compact integration.
It uses a clip mount type for easy installation and secure attachment in automotive applications.
The dimensions of this model are 18.93mm in height, 19.6mm in width, and 47.55mm in depth.
Yes, it complies with EU ELV and EU RoHS standards, ensuring adherence to environmental and safety regulations.
It accommodates wire sizes ranging from 1.30 to 2.54 mm in diameter, providing versatility for various wiring options.
The housing of this connector is color-coded red, which helps in identification and prevents mismating during installation.
This model is part of the AMPSEAL 16 series, which is designed for automotive and industrial electrical applications requiring sealed connections.
