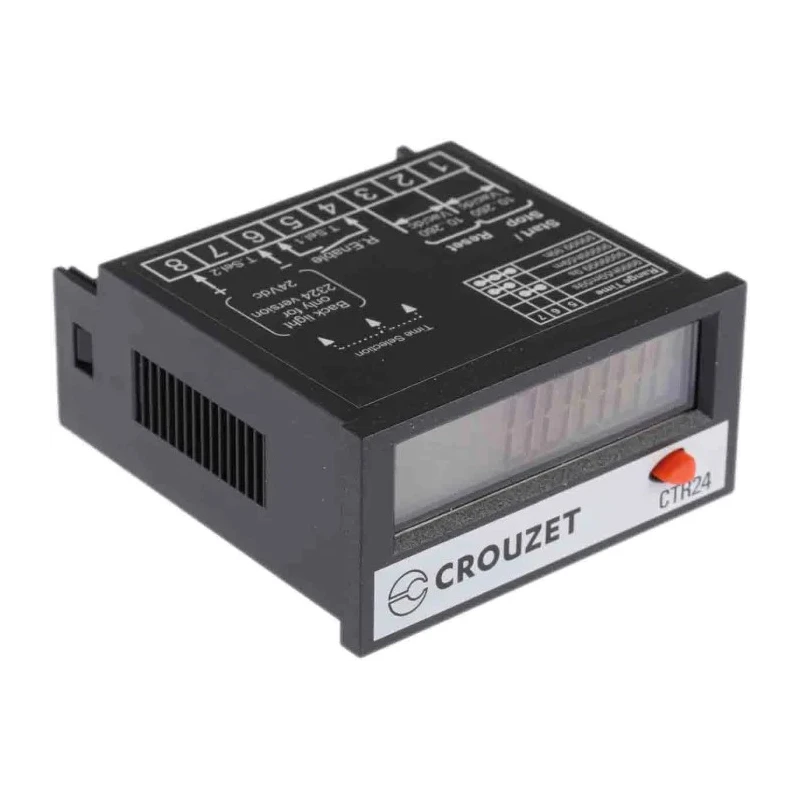

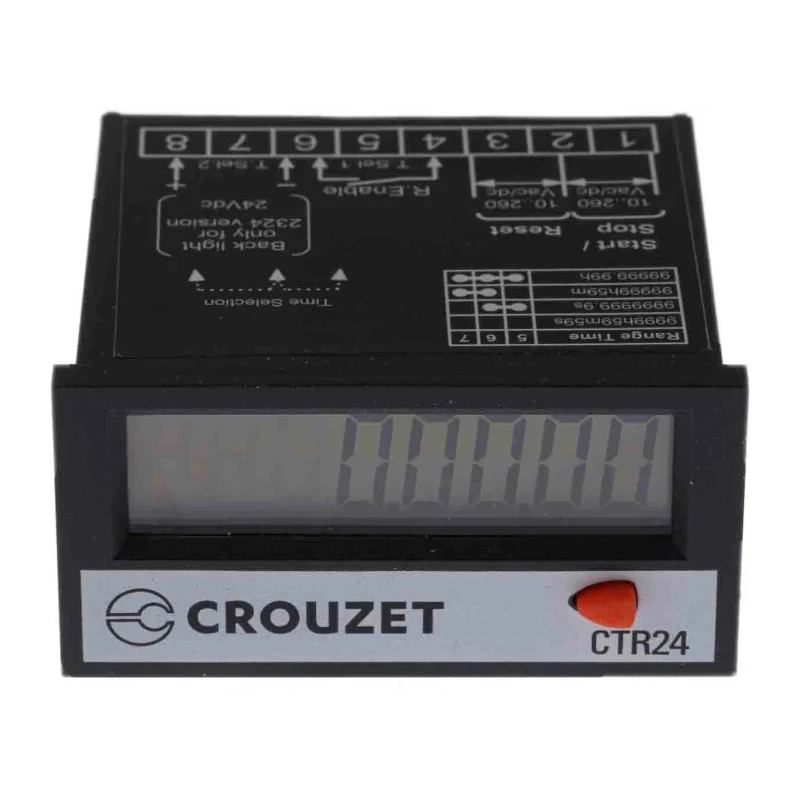

Crouzet Digital Counter 8 Digit LCD Display 260V CTR24

Crouzet CTR24 digital counter is an 8-digit LCD impulse counter designed for panel mounting with a voltage input rating of 260VAC/VDC. It incorporates an internal lithium battery for power supply and features manual reset capabilities with an inhibition option, allowing resets on the panel or via external terminals.

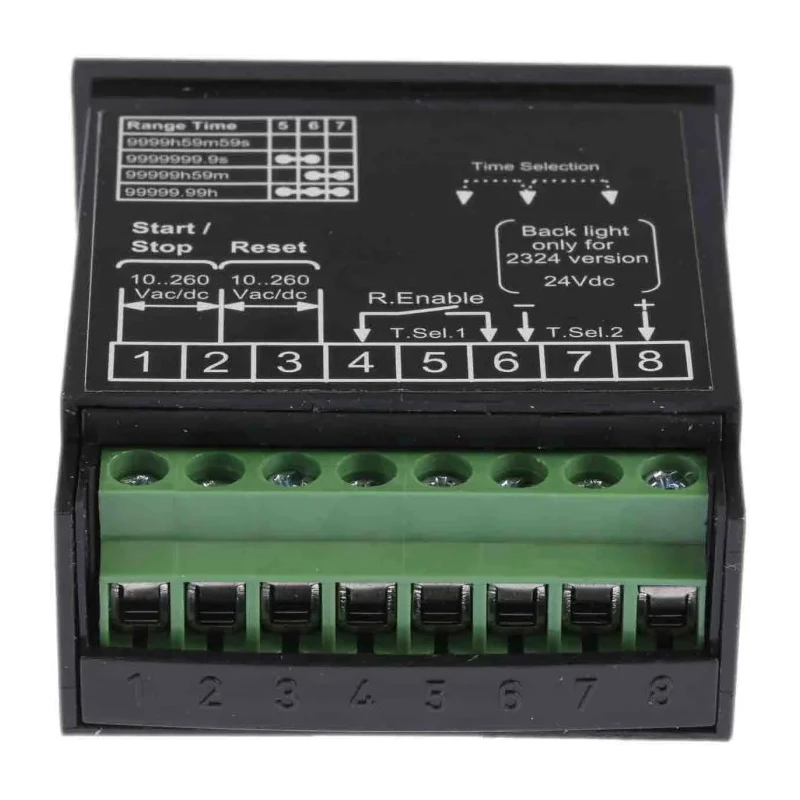

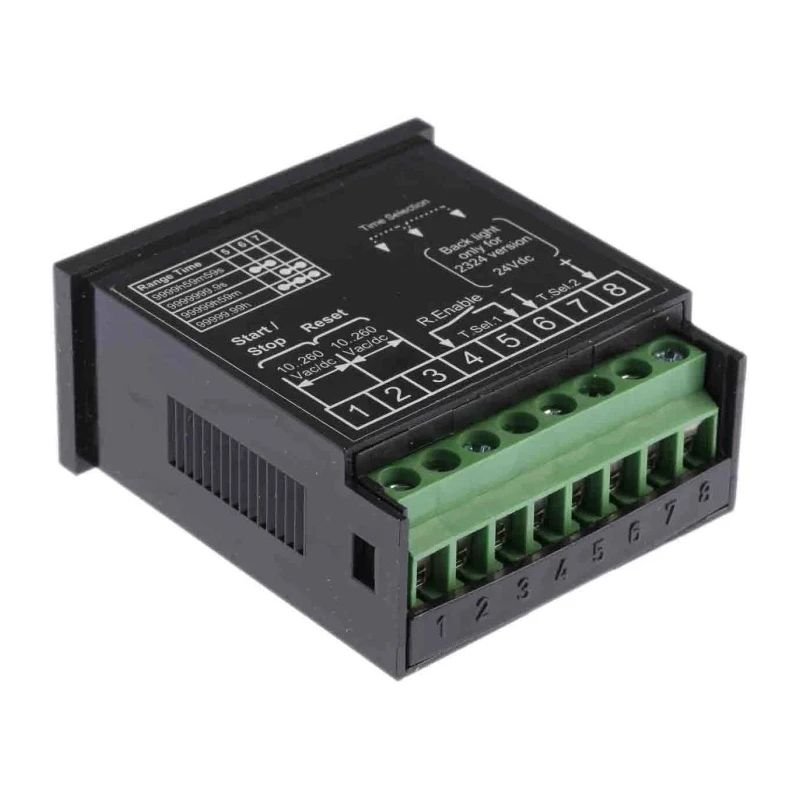

The device features a 48mm x 24mm front panel size compatible with 50 x 25mm cut-outs, and an 8mm digit height for enhanced visibility. Its plug-in screw terminal connection facilitates straightforward installation and maintenance. The counter provides four timing modes: 0 to 99.999.99 hours, 0 to 99.999.59 hours, 0 to 999.999.9 seconds, and 0 to 9.999 hours 59 minutes and 59 seconds, catering to varied industrial timing requirements.

Operating temperature range from -10°C to 60°C enables use in diverse environments. The non-backlit LCD screen conserves power while maintaining legibility in ambient lighting. This counter is suitable for industrial counting applications, manufacturing assembly lines, and control and monitoring systems.

Manual reset with inhibition option for controlled operation. Clear 8mm high digits for accurate reading. Four versatile timing ranges for multiple applications. Compact panel mount design with plug-in screw terminals. Wide operating temperature range of -10°C to 60°C.

Non-backlit LCD reduces energy consumption. Powered by internal lithium battery ensuring reliability. Front dimensions compatible with standard cut-outs. Used in industrial automation, assembly lines, and control systems.

Made in Germany, the Crouzet CTR24 adheres to stringent quality standards. It is UL and CE certified, compliant with EN 61000-6-2 and EN 55011 class B standards. This digital counter offers a robust solution for precision counting in industrial environments.
