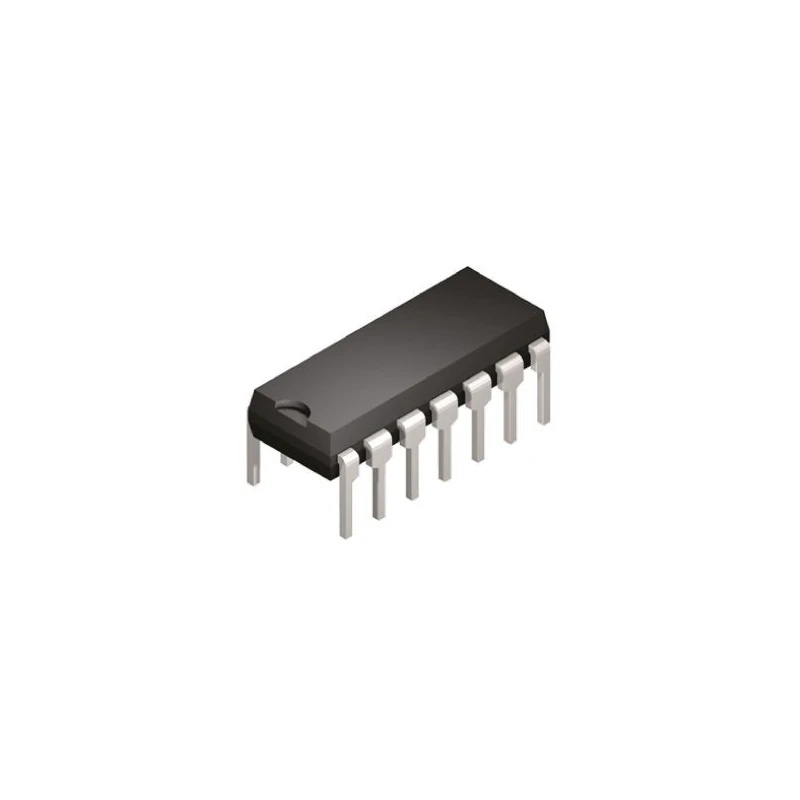

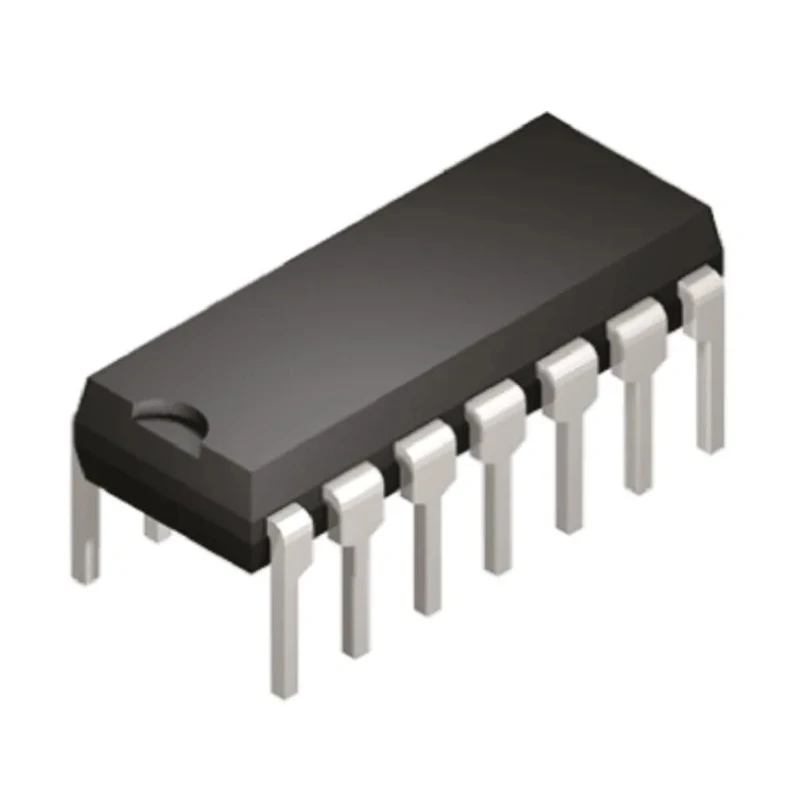

Texas Instruments 16-bit MSP430 Microcontroller 16 MHz 2kB FLASH 14-Pin PDIP MSP430G2231IN14
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.3mm |
| Model | MSP430G2231IN14 |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MSP430 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | Serial |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 724-4654Brand: Texas InstrumentsManufacturers Part No.: MSP430G2231IN14 |
| Pin Count | 14 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Program Memory Size | 2kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 10 |
| Maximum Expanded Memory Size | 256bit |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a voltage range of 1.8V to 3.6V.
- Features 128-bit RAM and 10 programmable I/O pins.
- Utilizes a RISC instruction set architecture for efficiency.
- Equipped with one timer and eight 10-bit ADC channels.
- Designed for ultra-low power applications with fast wake-up times.
- Operates reliably between -40°C and 85°C.
- Through hole mount type suitable for insertion into standard PCBs.
- Program memory type is FLASH for efficient in-system programming.
Product Description
Texas Instruments MSP430G2231IN14 is a 16-bit microcontroller featuring a 16 MHz CPU frequency and 2kB flash program memory, housed in a 14-Pin PDIP package. It operates within a supply voltage range of 1.8V to 3.6V, making it ideal for low-power industrial and portable applications.
The device includes 128-bit RAM and supports 10 programmable I/O pins along with eight 10-bit ADC channels, enabling precise analog-to-digital conversions. Its RISC architecture supports efficient instruction execution with a single timer to handle timing functions.
With dimensions of 19.3mm length, 6.35mm width, and 5.08mm height, its through hole mounting type facilitates easy placement on printed circuit boards. The MCU is designed for ultra-low power consumption with multiple power modes including 0.1μA RAM retention and 0.4μA standby mode, enabling prolonged battery life in portable devices.
The MSP430 family is well-known for ultra-fast wake-up times from standby, less than 1μs, allowing responsive operation in energy-constrained environments. It reliably operates across a broad temperature range from -40°C to 85°C, suitable for industrial environments.
Operates at 1.8V to 3.6V supply voltage range. 128-bit RAM for data storage. Single timer and RISC instruction set architecture. Eight 10-bit ADC channels for analog signal processing. Compact 14-Pin PDIP package with through hole mounting.
Wide operating temperature range of -40°C to 85°C. FLASH program memory for reprogrammability.
This microcontroller is broadly suited for applications in industrial control, instrumentation, and low-power wireless systems. It offers a balance of performance and energy efficiency required in embedded designs.
Discover more Microcontrollers and electronic components from Texas Instruments and enhance your projects with reliable semiconductor devices available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz.
It operates within a supply voltage range of 1.8V to 3.6V.
This model features 10 programmable I/O pins.
The program memory size is 2kB, utilizing FLASH memory for efficient in-system programming.
It operates reliably between -40°C and 85°C.
This model is equipped with eight 10-bit ADC channels for precise analog-to-digital conversions.
The dimensions are 5.08mm in height, 6.35mm in width, and 19.3mm in length.
It supports through hole mounting, making it suitable for insertion into standard PCBs.
It utilizes a RISC instruction set architecture for efficient instruction execution.
There is one timer included in this model to handle timing functions.
It has a RAM size of 128 bits for data storage.
It is broadly suited for applications in industrial control, instrumentation, and low-power wireless systems.
