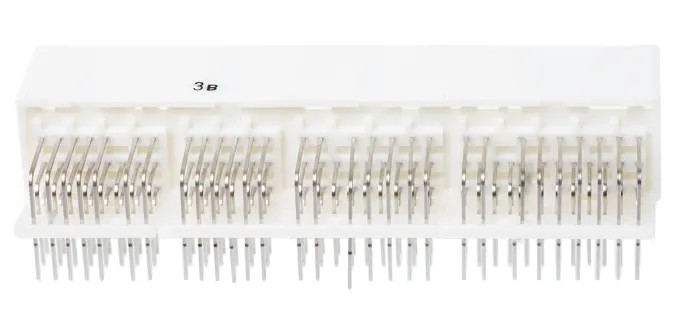

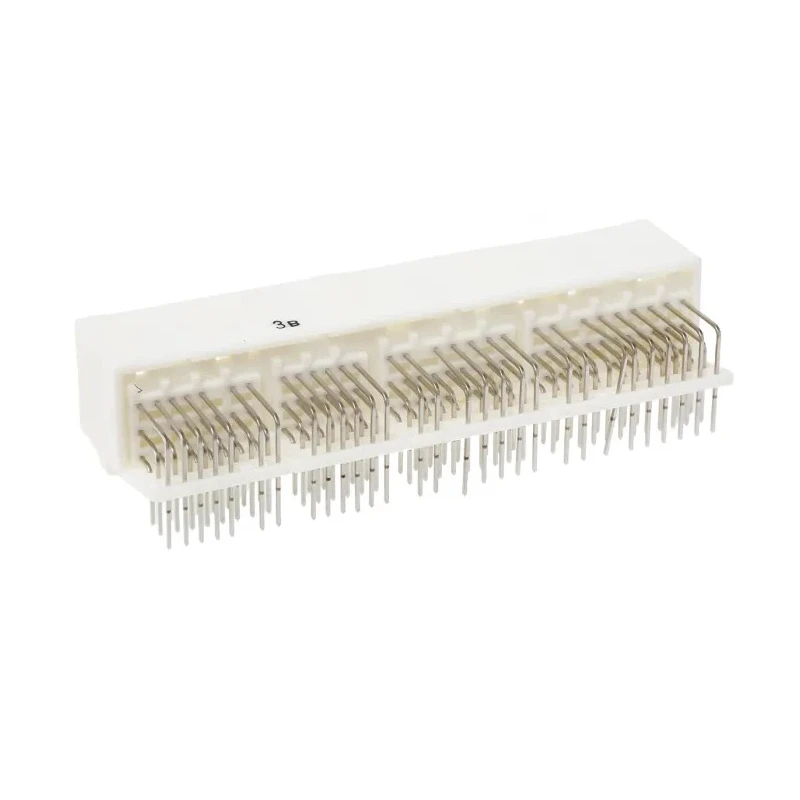

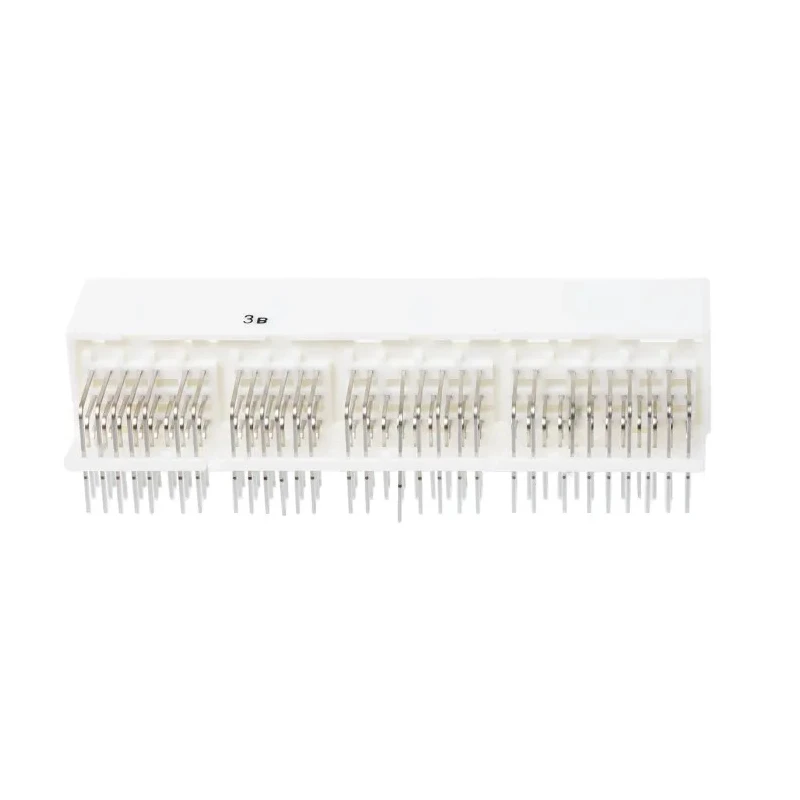

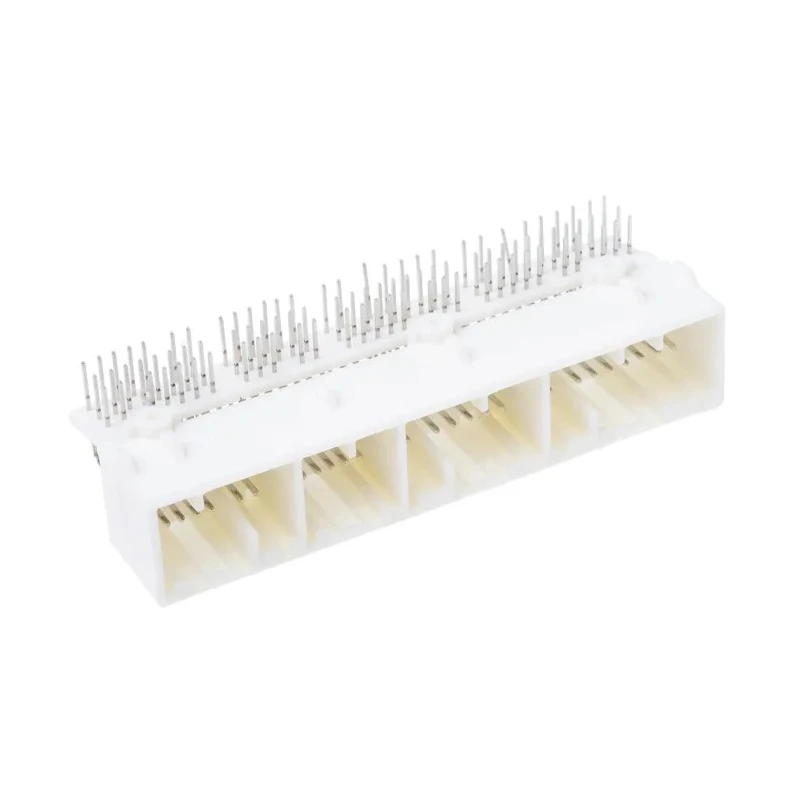

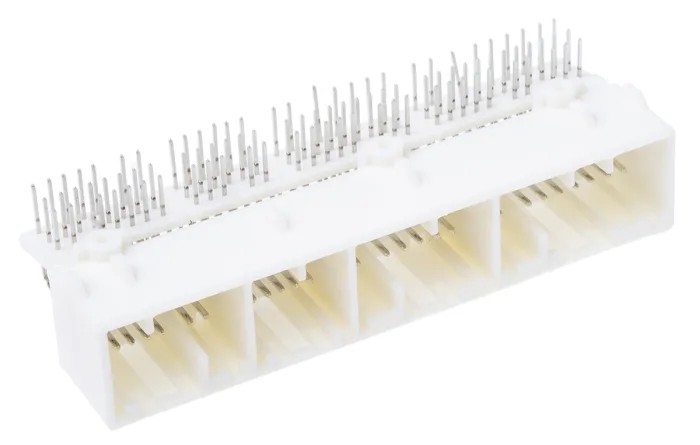

TE Connectivity MULTILOCK 040 III Series Right Angle Through Hole PCB Socket 94-Contact 2-Row 3.5 mm Pitch 12V 1123794-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 12V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | MULTILOCK 040 III |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-0917Brand: TE ConnectivityManufacturers Part No.: 1123794-4 |
| Contact Plating | Tin |
| Number of Contacts | 94 |
| Contact Gender | Male |
| Connector System | Wire-to-Board |
Key Features
- Designed for automotive applications with high durability and compact design.
- Offers contact protection to prevent rocking during mating and unmating.
- Features integral double locking mechanism ensuring secure contact retention.
- Operating voltage is 12V suitable for powertrain and driver information systems.
- Constructed from brass contacts with tin plating for reliable conductivity.
- Mount type is through hole with right angle orientation for PCB mounting.
- Minimum operating temperature of -30°C and maximum of 105°C for versatility.
- Compliant with RoHS standards ensuring environmentally safe manufacturing.
Product Description
TE Connectivity 1123794-4 MULTILOCK 040 III Series right angle through hole PCB socket is a high-density 94-contact connector designed for reliable wire-to-board connections in automotive and general industrial applications. Featuring a 3.5 mm pitch and a 2-row contact configuration, it ensures optimal space utilization on PCBs. This socket is ideal for use in powertrain systems, safety and security equipment, convenience systems such as AC and heated seats, driver information systems, and body and chassis electronics.
The connector housing is compact and durable, incorporating a locking mechanism to maintain secure connections and prevent contact rocking during insertion and removal. Constructed with brass contacts plated in tin, this product complies with RoHS standards, promoting environmental safety. The through hole mounting with right angle orientation facilitates easy PCB installation, supporting voltages up to 12V and operating temperatures ranging from -30°C to 105°C.
TE Connectivity MULTILOCK connectors offer a miniature high-density solution supporting wire-to-wire and wire-to-board signal and power transfer. Their snap-in crimp contacts and pre-loaded board options simplify assembly while ensuring reliable performance in demanding industrial environments. This product enables effective wiring solutions in automotive and other industrial sectors requiring durable, compact connectors.
Designed specifically for automotive applications with robust construction. Compact design enables high-density PCB layouts saving board space. Integral double locking system provides secure contact retention during use.
Contacts are brass with tin plating ensuring reliability and conductivity. Right angle through hole mount type suitable for printed circuit boards. Operating voltage rating up to 12V meets common automotive needs. Wide operating temperature range from -30°C to 105°C for harsh environments.
Complies with RoHS directive for environmentally friendly components. Supports powertrain, safety, convenience, driver info, and chassis systems. Facilitates easy assembly with snap in contacts and cable plug options. Explore our extensive range of PCB Sockets and connectors suitable for industrial and automotive applications in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage for this PCB socket is 12V, making it suitable for automotive applications such as powertrain and driver information systems.
This model features a 3.5 mm pitch and has 94 contacts arranged in a 2-row configuration, optimizing space utilization on PCBs.
It utilizes a through hole mounting type with a right angle orientation, facilitating easy installation on printed circuit boards.
The contacts are made of brass and are plated with tin to ensure reliable conductivity.
The operating temperature range for this socket is from -30°C to 105°C, allowing it to function in various environmental conditions.
Yes, this PCB socket complies with RoHS standards, promoting environmentally safe manufacturing practices.
The termination type for this connector is solder, which is standard for securing connections on PCBs.
This connector is designed for automotive applications, including powertrain systems, safety equipment, and driver information systems.
It features an integral double locking mechanism that ensures secure contact retention and prevents rocking during mating and unmating.
The contact gender of this PCB socket is male, which is standard for wire-to-board connections.
This product is manufactured in India, ensuring compliance with international manufacturing standards.
This model belongs to the wire-to-board connector system, which is commonly used for connecting wires to printed circuit boards.
