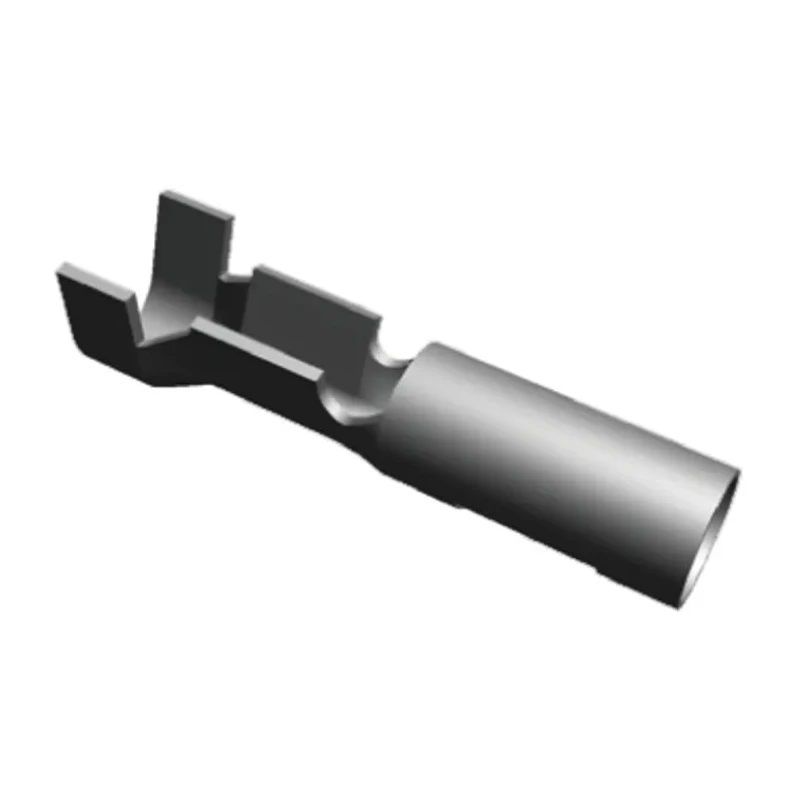

TE Connectivity PCB Socket Female, 20A Current, 18-22 AWG Wire Size, Straight Orientation, Phosphor Bronze Contact 61291-1

TE Connectivity 61291-1 PCB Socket Female is engineered for high-performance electronic connection solutions, offering a reliable interface for printed circuit boards. With a current rating of 20A, this PCB socket ensures efficient and stable electrical connections in demanding environments.

The female receptacle socket is suitable for wire gauges ranging from 18 AWG to 22 AWG, providing flexibility for various wiring specifications. Its straight orientation and crimp termination type simplify installation and maintenance procedures.

Constructed from phosphor bronze with tin plating, the contacts deliver excellent conductivity and corrosion resistance, extending the service life of the component. The housing is crafted from robust nylon material, delivering insulation and mechanical protection during operation.

The socket measures 13.97 mm in length, making it suitable for compact PCB layouts and space-sensitive applications. Despite having no formal standards or approvals, its material quality and design conform to typical industrial use requirements.

The socket features a female gender configuration suitable for PCB assemblies. Rated for a maximum current of 20 amperes ensuring robust performance. Compatible with wire sizes ranging from 18 AWG to 22 AWG for versatile applications.

Constructed with phosphor bronze contact material plated with tin for durability and conductivity. Designed with a straight orientation to facilitate ease of installation and crimp termination type. Housing is made of durable nylon material, providing insulation and mechanical strength.

Length of the socket is precisely 13.97 millimeters ensuring compact PCB integration. Contact plating with tin enhances resistance to corrosion and ensures reliable electrical contact. Meets standard industry requirements without additional approvals or certifications.

Ideal for use in electronic, electrical, and power connector applications.

This PCB Socket is extensively used in electronic manufacturing, power connector assemblies, and various electrical components, serving as a dependable element in ensuring stable and effective circuit connections.
