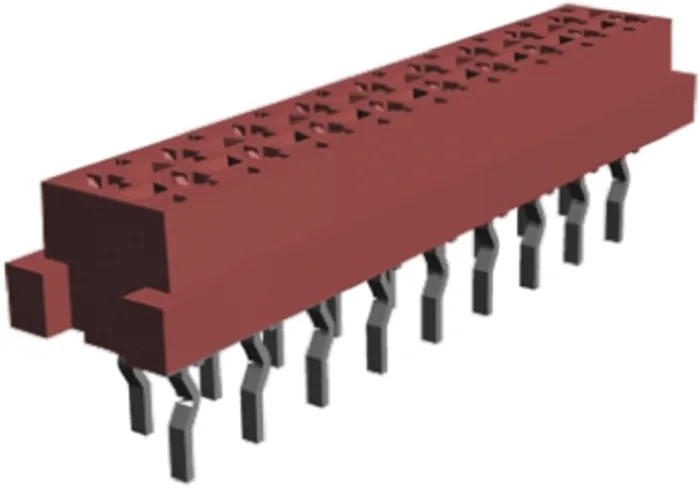

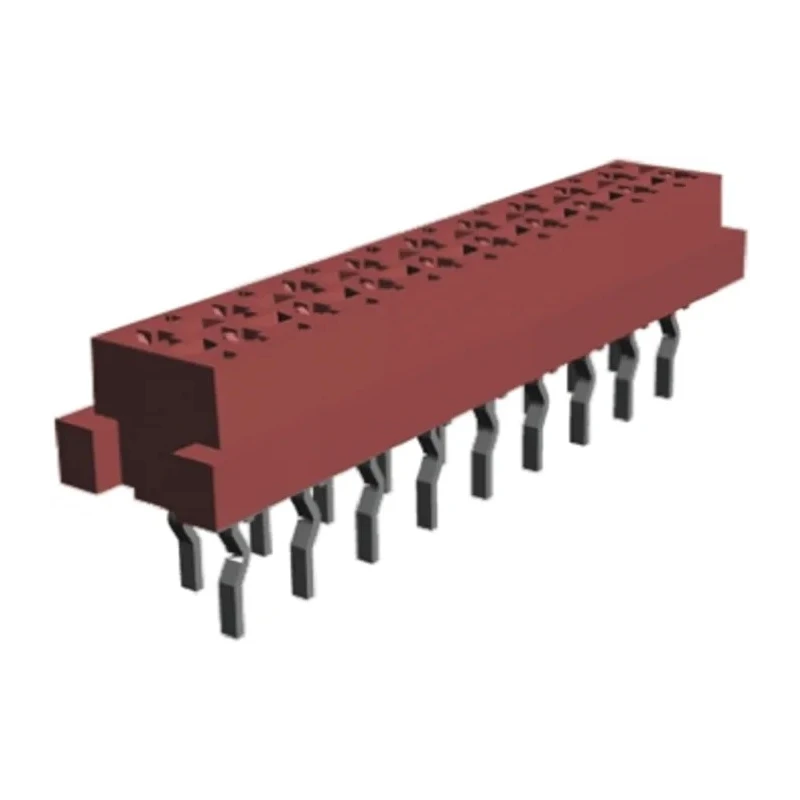

TE Connectivity Micro-MaTch Series Straight Through Hole 18-Contact 2 Row 1.27 mm Pitch PCB Socket 1-215079-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-9810PBrand: TE ConnectivityManufacturers Part No.: 1-215079-8 |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The connector system uses a female contact gender designed for board-to-board interfaces.
- Polybutylene Terephthalate housing ensures durability and thermal resistance.
- Solder termination type and through hole mount provide secure PCB installation.
- Operating voltage rating is 230 V with a current rating of 1.5 A for reliable electrical performance.
- Contact material is bronze with tin over nickel plating to prevent corrosion and ensure conductivity.
- Compact Micro-MaTch series design minimizes space usage with 1.27 mm pitch row spacing.
- Operating temperature range spans from -40°C to maximum 105°C for versatile environmental use.
- Kinked leg design enhances retention to the PCB and secure mating connection via locking latch options.
Product Description
TE Connectivity 1-215079-8 Micro-MaTch Series PCB Socket is a high-quality straight through hole female connector designed for board-to-board electronic applications. This socket offers 18 contacts arranged in 2 rows with a 1.27 mm pitch, ensuring compact and space-saving connections on printed circuit boards.
The housing is constructed from durable Polybutylene Terephthalate, providing excellent mechanical strength and thermal resistance. The solder termination and kinked leg design secure the connector firmly to the PCB, enhancing reliability in industrial or commercial electronic assemblies.
The socket supports a rated voltage of 230 V with a current rating of 1.5 A. Contact springs within the connector prevent fretting corrosion, while the tin over nickel plating on bronze contacts ensures long-term conductivity and resistance to environmental degradation. Operating temperatures range from -40°C to 105°C, enabling use in diverse environments including robotics, control units, heating systems, automotive audio, navigation, and set-top box applications.
This Micro-MaTch connector series features a gas-tight contact spring system that maintains electrical integrity through vibration and thermal expansion. Versions with locking latches are available to enhance mating security where needed.
The compact design supports dense, space-saving PCB configurations. The contact spring provides a fretting corrosion resistant, gas-tight connection. Kinked leg design delivers secure PCB retention. Contact plating of tin over nickel enhances corrosion resistance.
Broad temperature range from -40°C to 105°C suits various industrial environments. Supports 230 V and 1.5 A electrical specifications for reliable performance. Female contact gender and board-to-board connector system enable versatile interconnections.
Applications cover production machinery, robotics, automotive systems, and consumer electronics. Explore more PCB Socket options and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The socket supports a voltage rating of 230 V and a current rating of 1.5 A, ensuring reliable electrical performance.
This model features a pitch of 1.27 mm and includes 18 contacts arranged in 2 rows.
It utilizes a solder termination type, which provides a secure connection on the PCB.
The housing is made from Polybutylene Terephthalate, while the contacts are bronze with tin over nickel plating for corrosion resistance.
The operating temperature range spans from -40°C to a maximum of 105°C, allowing for versatile environmental use.
It features a kinked leg design that enhances retention to the PCB, along with options for locking latches to secure the mating connection.
The orientation of this connector is straight, designed for board-to-board interfaces.
Yes, this model is suitable for various applications including automotive systems, robotics, and consumer electronics.
It utilizes a board-to-board connector system, specifically designed for interconnections between PCBs.
The contact spring design provides a gas-tight connection that maintains electrical integrity through vibration and thermal expansion.
The country of origin for this PCB socket is India.
This connector is categorized as a board-to-board sub-type, facilitating connections between printed circuit boards.
