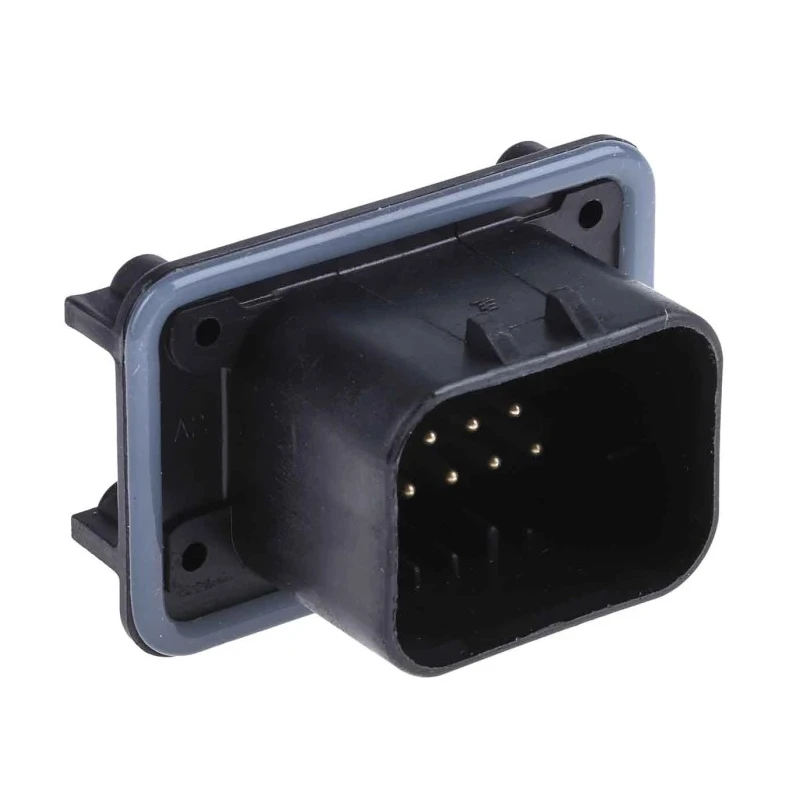

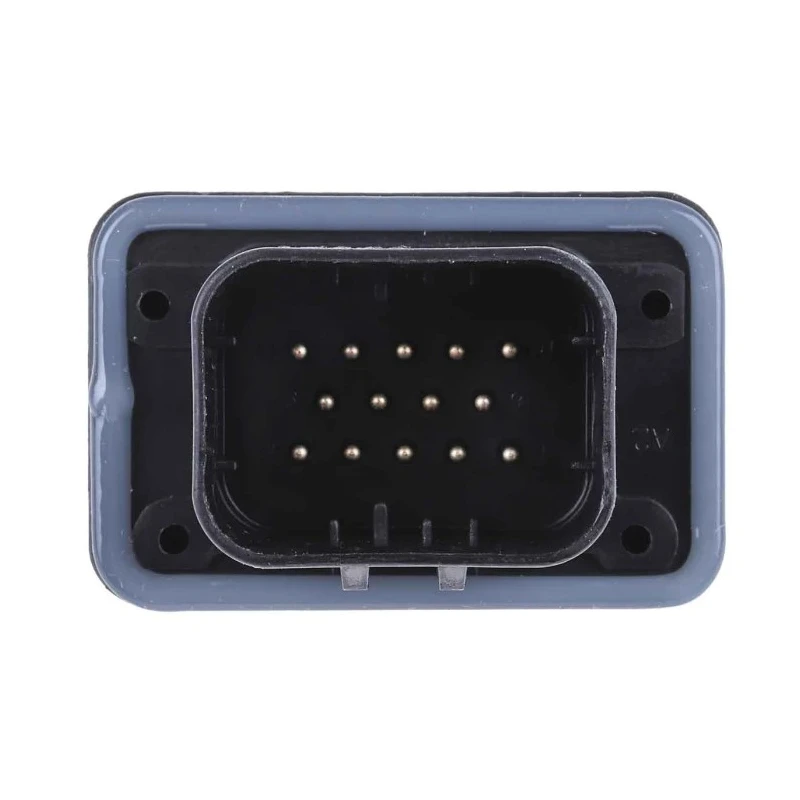

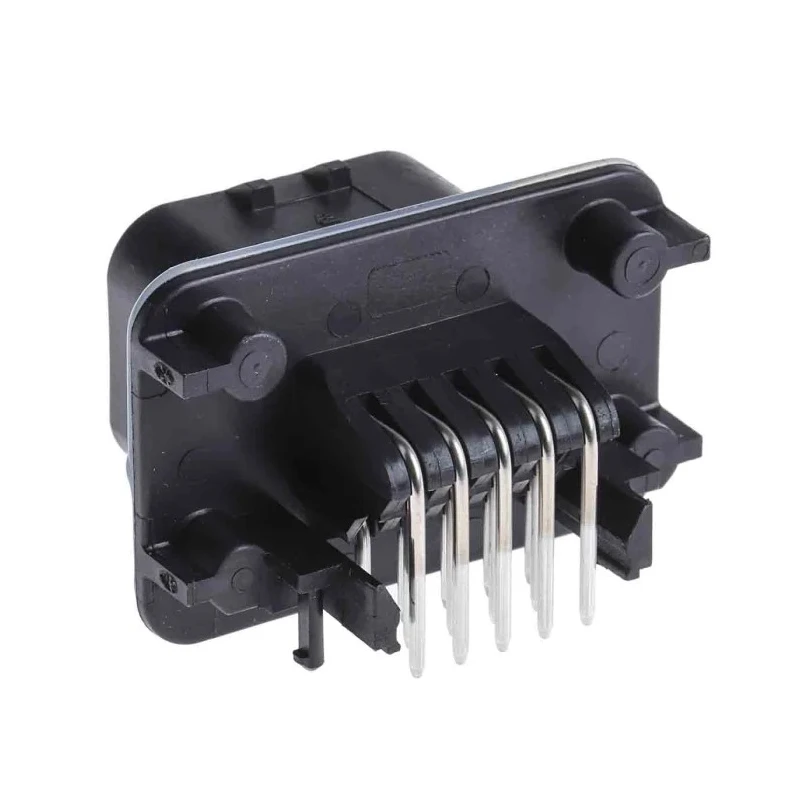

TE Connectivity Ampseal Automotive Connector Female Green Through Hole 14 Way Solder Termination 10A 1-776267-1

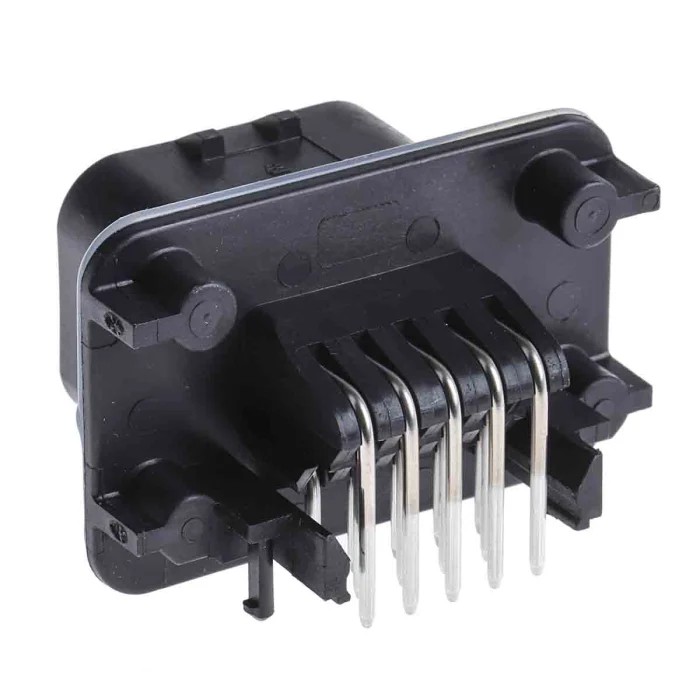

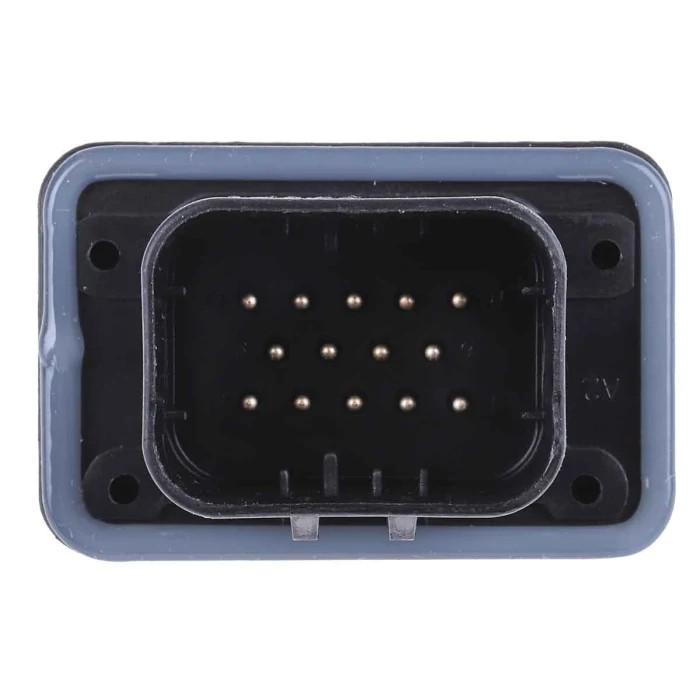

TE Connectivity 1-776267-1 Ampseal Automotive Connector Female Green Through Hole 14 Way Solder Termination 10A is a high-quality automotive electrical connector designed for demanding environments. It features a shrouded header sub-type with solder termination suitable for through-hole mounting on PCBs.

Constructed with a nylon housing and brass contacts plated with tin, this connector ensures robust electrical connection and durability under mechanical stress. The green connector is rated IP6K9K when mated, indicating the highest level of ingress protection against dust and high-pressure water jets at high temperature.

Operating temperature ranges from -40°C to +125°C accommodate extreme environmental conditions typically encountered in automotive and industrial applications. The 14 contacts support up to 10 amps of current, with an AC voltage rating of 250 volts. This makes it ideal for truck, bus, construction, agricultural, marine, and two-wheeler electrical systems.

Its design provides excellent insulation resistance of at least 100 megaohms and is sealed with silicone rubber to preserve performance in vibration and shock-prone usage scenarios. The compact size with dimensions of 48.8mm width, 32.1mm height, and 37.9mm depth allows integration in tight spaces on printed circuit boards.

Typical use cases include off-road equipment, vehicle electrical harnesses, and special emergency service vehicles requiring reliable power and signal connections. This connector series is produced under TE Connectivity's trusted quality and engineering standards.

The connector features a female gender with 14 solder termination contacts. It operates at a current rating of 10A with a voltage rating up to 250 VAC. The IP69K rated design ensures full dust tightness and ability to withstand high pressure and temperature water jets.

Construction includes a durable nylon housing and brass contacts with tin plating. The connector supports operating temperatures from -40°C to 125°C, suitable for harsh environments. It has a green color with a shrouded header style and a through-hole mounting type.

Dimensions are 48.8mm width, 32.1mm height, and 37.9mm depth for compact installation. This connector series is well suited for automotive uses including trucks, buses, construction, agriculture, marine, and emergency vehicles.

Its robust build offers superior resistance to vibration and shock, making it reliable in rugged conditions. Explore more Automotive Connectors and related electronic components at EnvMart for industrial, commercial, and automotive applications.
