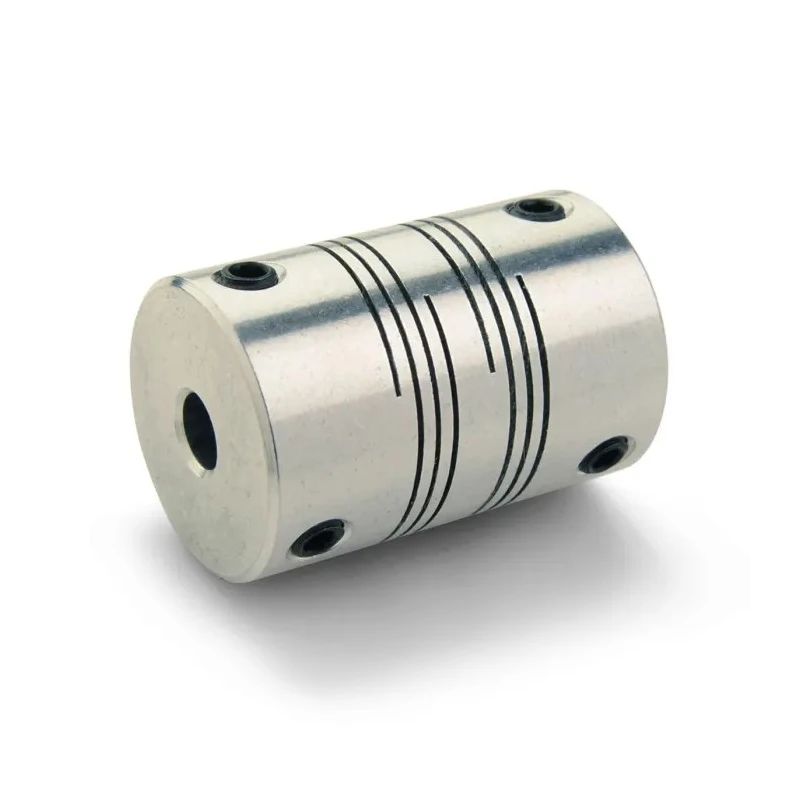

Ruland Mechanical Power Transmission Coupler 19.1 mm OD 5 mm Bore 31.8 mm Length Aluminium Zero-Backlash FSMR19-5-5-A
Specifications
| Country of Origin | our Marlborough |
|---|---|
| Screw Size | M4 |
| Brand | Ruland |
| Length | 31.8mm |
| Model | FSMR19-5-5-A |
| Maximum Speed | 6000rpm |
| Maximum Operating Temperature | 107°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 2.94Nm |
| Standards/Approvals | RoHS3, DIN 912 12.9, REACH |
| Hub Material | Aluminium |
| Moment of Inertia | 1.037 x 10-6 kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.13mm |
| Bellows Material | 7075-T651 Extruded Drawn Aluminium Bar |
| Bore Size B | 5mm |
Key Features
- The coupling is machined from a single piece of 7075 aluminium for low inertia and lightweight performance.
- It has a six beam design with two sets of three spiral cuts for higher torque capacity and lower windup.
- Rated for a torque capacity of 2.94 Nm and maximum speed of 6000 rpm.
- Features zero backlash and a balanced design to reduce vibration at high speeds.
- Constructed with 7075-T651 extruded drawn aluminium bar bellows providing durability.
- Suitable for light duty power transmission such as coupling a servo motor to a lead screw.
- All hardware is metric and uses M4 screws for secure assembly.
- Operating temperature range from -40°C minimum up to 107°C maximum.
Product Description
Ruland FSMR19-5-5-A is a high-quality Mechanical Power Transmission Coupler engineered for precision applications requiring flexible yet reliable torque transfer. The coupling features a 19.1 mm outer diameter and a precise 31.8 mm length, with matched 5 mm bores on both ends, enabling its use in coupling servo motors to lead screws with zero backlash.
Manufactured from 7075 aluminium bar stock, this coupler combines lightweight design with enhanced torque capacity through its six beam, dual three-spiral cut configuration. This design not only ensures superior torsional rigidity but also minimizes windup, enabling smooth operation at speeds up to 6000 revolutions per minute.
Its balanced design reduces vibration and supports various types of shaft misalignment, including angular misalignment up to 3 degrees, parallel misalignment of 0.2 mm, and axial misalignment of 0.13 mm. The bellows material, made from 7075-T651 extruded drawn aluminium, provides resilience and durability even at operating temperatures ranging from -40 degrees Celsius to 107 degrees Celsius.
This coupler is suitable for light duty power transmission tasks in industrial, manufacturing, automation, and laboratory equipment where precise servo motor connections are critical. Assembly hardware is metric with M4 screw size, ensuring secure and standardized fastening.
Made from high-strength 7075 aluminium alloy with lightweight and low inertia properties. Six beam coupling design with dual spiral cuts for enhanced torque and reduced windup. Zero-backlash operation at high rotational speeds up to 6000 rpm.
Supports angular, parallel, and axial shaft misalignments to accommodate installation variances. Operating temperature suitability from -40°C to 107°C for versatile environments. Complies with RoHS3, DIN 912 12.9, and REACH standards for safety and environmental requirements.
Ideal for coupling servo motors to lead screws in light industrial power transmission. Manufactured under strict proprietary processes ensuring consistent quality. Explore our comprehensive range of mechanical couplers and flexible couplings at EnvMart for your power transmission needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The torque capacity of this model is rated at 2.94 Nm.
It can operate at a maximum speed of 6000 rpm.
The outer diameter is 19.1 mm, with a length of 31.8 mm and a bore size of 5 mm on both ends.
This unit is made from 7075-T651 extruded drawn aluminium, providing durability and low inertia.
It supports angular misalignment up to 3 degrees, parallel misalignment of 0.2 mm, and axial misalignment of 0.13 mm.
The operating temperature range is from -40°C to 107°C.
It complies with RoHS3, DIN 912 12.9, and REACH standards.
The assembly hardware uses M4 screws for secure fastening.
The coupler features a six beam design with dual three-spiral cuts, which ensures zero backlash during operation.
It is suitable for light duty power transmission tasks, particularly for coupling servo motors to lead screws in various industrial applications.
The moment of inertia is 1.037 x 10^-6 kg/m².
The balanced design reduces vibration at high speeds, enhancing the overall performance of the coupling.
