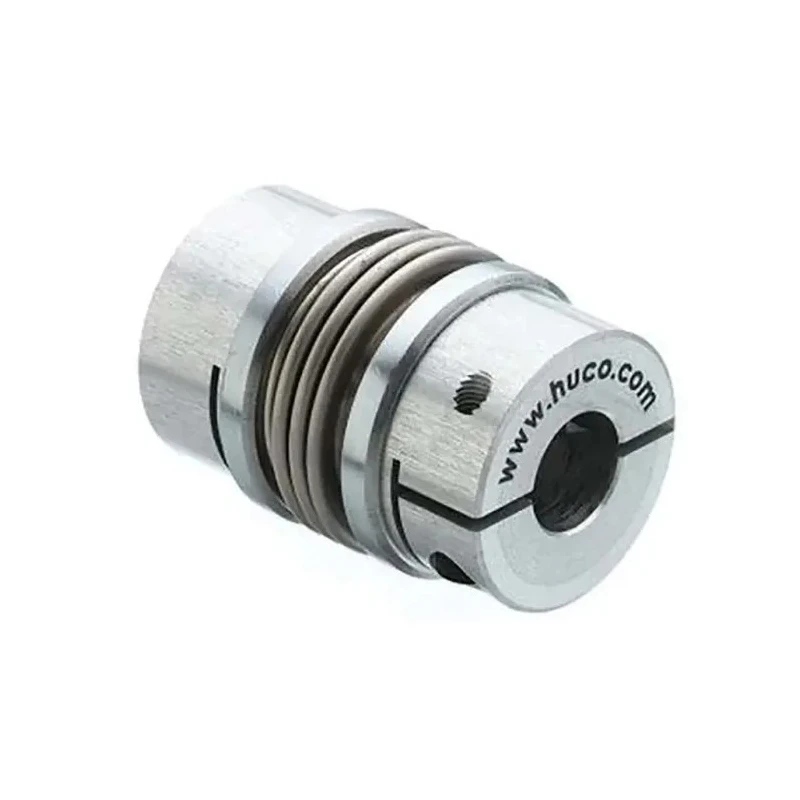

Huco Aluminium Clamp Style Flexible Coupler 56 mm OD 22 mm Bore 73 mm Length 593.56.4949

Huco 593.56.4949 clamp style flexible coupler is engineered for efficient mechanical power transmission with precision kinematic properties. Featuring an aluminium hub and stainless steel bellows, this coupling balances strength and flexibility for industrial use. The 56 mm outer diameter and 22 mm bore sizes with a 73 mm length make it compatible with a wide range of shafts.

Designed to operate within temperatures from -30°C to 120°C, the coupler is suitable for environments requiring reliability under thermal variation. Its maximum operating speed is rated at 10300 rpm, supporting high-speed machinery in sectors such as manufacturing, fluid power, mechanical engineering, and automation systems.

The coupling compensates for shaft misalignment with angular misalignment capability of up to 2°, parallel misalignment up to 0.25 mm, and axial misalignment up to 1 mm, minimizing stress on connected equipment and extending component lifespan.

Torque transmission is efficient with a rating of 30 Nm and a torsional stiffness of 28000 Nm/rad, making it ideal for moderate torque applications requiring precise motion control. The clamp style ensures a secure mechanical connection while facilitating straightforward installation and maintenance.

Its Flex K series design incorporates 3, 9, or 2 convolution variations for tailored stiffness and flexibility based on application needs. The use of stainless steel bellows provides long-lasting fatigue resistance and corrosion protection, enhancing operational reliability.

Constructed with aluminium hub for lightweight strength and durability. Clamp style design ensures secure shaft connection. Operating temperature range from -30°C to 120°C suitable for diverse industrial environments. Bellows made of stainless steel providing torsional flexibility and stiffness.

Maximum speed capability of 10300 rpm for high-performance operations. Torque rating up to 30 Nm suitable for moderate load applications. Excellent misalignment compensation: angular up to 2°, parallel up to 0.25 mm, and axial up to 1 mm.

Series Flex K coupling offers precise radial compensation and axial motion. Screw size M6 used for clamp fixing enhancing ease of assembly.

This Huco flexible coupler is widely used in industrial machinery, fluid power transmission, mechanical power transmission systems, and automation, where precise alignment and robust torque transmission are critical. It supports manufacturing, industrial processing, and mechanical engineering applications requiring adaptable shaft couplings.
