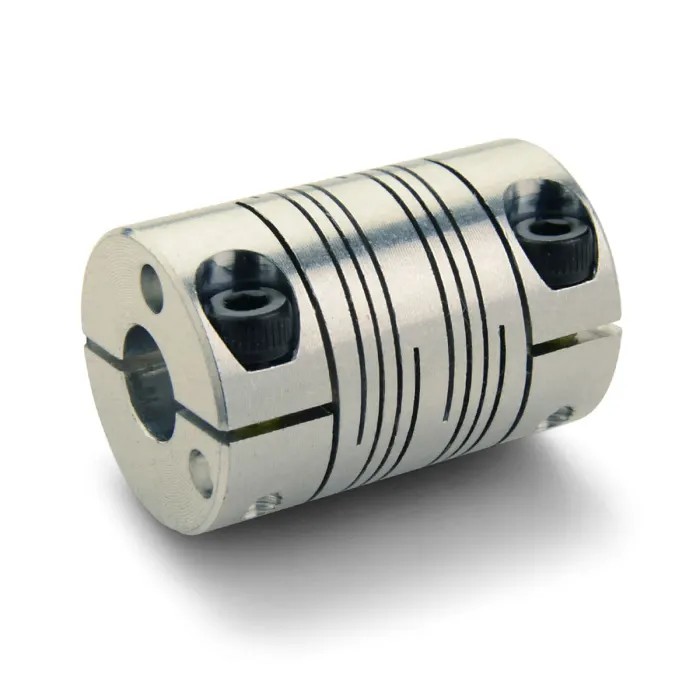

Ruland 38 mm OD 10 mm, 57.2 mm Length Clamp Style Flexible Coupler FCMR38-10-10-A

Free Delivery in India | Lowest Global Shipping Charges

Ruland 38 mm OD 10 mm, 57.2 mm Length Clamp Style Flexible Coupler FCMR38-10-10-A

Name: Ruland 38 mm OD 10 mm, 57.2 mm Length Clamp Style Flexible Coupler FCMR38-10-10-A
Brand: Ruland
SKU: 426260
Price: 226.95 USD
Availability: InStock



Category Mechanical Power Transmission Coupler Brand Ruland Condition New

Specifications

Country of Origin	our Marlborough
Screw Size	M5
Brand	Ruland
Length	57.2mm
Model	FCMR38-10-10-A
Maximum Speed	6000rpm
Maximum Operating Temperature	107°C
Minimum Operating Temperature	-40°C
Torque Rating	13.56Nm
Standards/Approvals	RoHS3, REACH, DIN 912 12.9
Hub Material	Aluminium
Bore Size A	10mm
Moment of Inertia	30.032 x 10-6 kg/m²
Misalignment - Angular	3°
Misalignment - Parallel	0.76mm
Misalignment - Axial	0.38mm
Bellows Material	7075-T651 Extruded Drawn Aluminium Bar

Key Features

Constructed from 7075-T651 extruded drawn aluminium bar.
Six beam clamp style design provides zero-backlash and balanced operation.
Torque rating of 13.56 Nm at speeds up to 6000 RPM.
Allows angular misalignment of 3°, parallel 0.76 mm, and axial 0.38 mm.
Equipped with metric M5 screws and Nypatch® anti-vibration hardware.
Operates from -40°C to 107°C temperature range.
Manufactured with strict quality controls in North America.
Ideal for light duty power transmission applications like servo motors.

Product Description

Ruland FCMR38-10-10-A is a precision six beam flexible coupler featuring a 38 mm outer diameter and dual 10 mm bores with a length of 57.2 mm. Machined from a single piece of 7075 aluminium bar stock, this clamp style coupler offers high torque capacity and low windup characteristics suitable for light duty mechanical power transmission.

The design incorporates two sets of three spiral cuts that deliver zero-backlash operation and balanced dynamics, reducing vibration at high speeds up to 6000 RPM. Its torque rating of 13.56 Nm and low moment of inertia of 30.032 x 10-6 kg/m² make it ideal for precise servo motor to lead screw couplings.

The coupler supports angular misalignment up to 3°, parallel misalignment of 0.76 mm, and axial misalignment of 0.38 mm, making it adaptable to slight shaft misalignments commonly encountered in industrial machinery. It operates within a temperature range of -40°C to 107°C, maintaining performance in various environments.

Ruland includes Nypatch® anti-vibration hardware with metric M5 screws to prevent galling and maintain consistent screw torque through repeated assembly cycles. The aluminium hub and bellows material ensure lightweight construction with durable performance.

This flexible coupling is manufactured under stringent quality control in Ruland's Marlborough, MA factory using premium sourced bar stock from North American mills, ensuring reliability and compliance with RoHS3, REACH, and DIN 912 12.9 standards.

Constructed from 7075-T651 extruded drawn aluminium bar. Zero-backlash six beam clamp design for balanced high speed operation. Torque rating of 13.56 Nm and max speed 6000 RPM. Supports angular, parallel, and axial misalignment.

Includes Nypatch® anti-vibration hardware with metric M5 screws. Temperature range from -40°C to 107°C. Manufactured with strict North American quality controls.

This coupling is suitable for use in industrial, laboratory, and lightweight mechanical power transmission systems including automation, servo drives, and lead screw assemblies. Browse EnvMart for other Ruland couplings and precision power transmission components.
