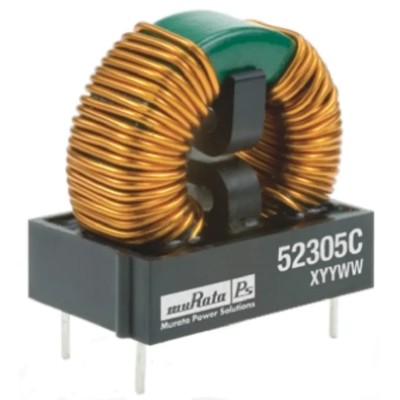

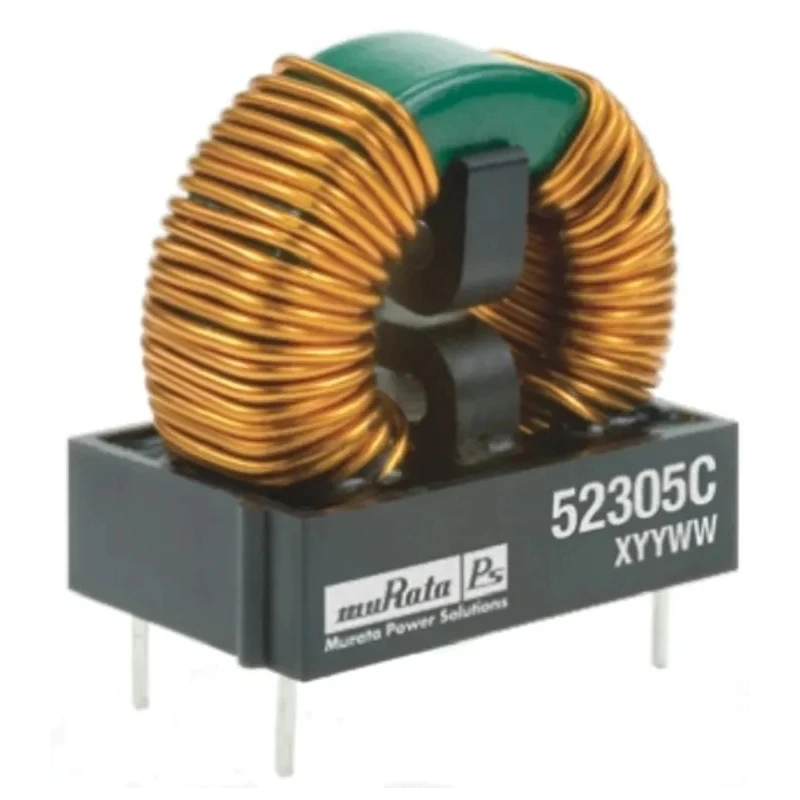

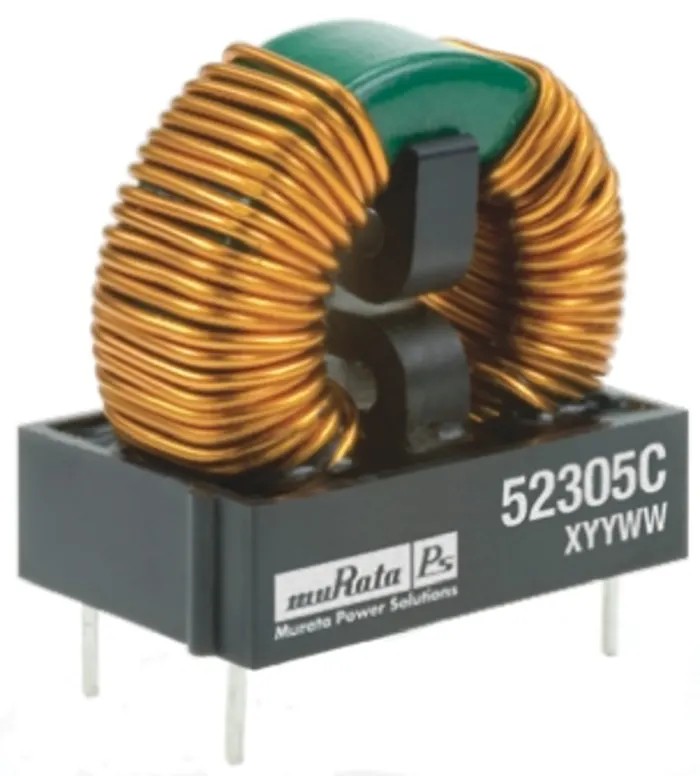

Murata Power Solutions 3 mH Leaded Inductor 3.5 A Idc 45 mΩ Rdc 1500 Vrms 5200 52305C
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 21mm |
| Brand | Murata Power Solutions |
| Height | 31mm |
| Length | 24mm |
| Model | 52305C |
| Depth | 16.3mm |
| Packaging | Tray |
| Mount Type | Radial |
| Series | 5200 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 3mH |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-7119PBrand: Murata Power SolutionsManufacturers Part No.: 52305C |
| Maximum DC Current | 3.5A |
| Pin Count | 4 |
| Maximum DC Resistance | 45mΩ |
| Termination Style | Solder |
| Lead Pitch | 20.32mm |
| Lead Diameter | 1mm |
Key Features
- Features a radial mount type and solder termination style.
- Designed with 4 pins and a lead diameter of 1 mm for secure connections.
- Operates reliably within temperature ranges from -40°C to 125°C.
- Complies with RoHS standards ensuring environmental safety.
- Packaged in trays for efficient handling and use.
- Suitable for attenuation of up to 100 MHz common mode noise filtering applications.
- Ideal for high current switching power supplies and telecom equipment.
- Manufactured in China as part of Murata's 5200 series.
Product Description
Murata Power Solutions 52305C is a 3 mH Leaded Inductor designed for applications requiring reliable noise attenuation with a maximum DC current of 3.5 A, DC resistance of 45 mΩ, and a voltage rating of 1500 Vrms. This radial mount choke features solder termination, 4 pins, lead diameter of 1 mm, and compact dimensions suitable for space-constrained circuits.
Operating temperature ranges from -40°C to 125°C, enabling stable performance in challenging environments. RoHS compliant, this component aligns with environmental regulations for sustainable electronics manufacturing.
The Murata 5200 series through-hole common mode chokes are intended to attenuate common mode noise up to 100 MHz, making them ideal for high current switching power supplies and telecom equipment requiring EMI filtering.
Packaged in trays for safe delivery and efficient insertion into production lines, this inductor supports enhanced production efficiency. Radial mount type with solder termination for secure installation. Compact size: 21 mm diameter, 31 mm height, 24 mm length, 16.3 mm depth.
Temperature range from -40°C to 125°C ensures versatility. Four pin count offering stable electrical contact. Lead diameter of 1 mm and 20.32 mm lead pitch for precise mounting. Compliant with RoHS standards for environmental safety.
Manufactured in China as part of the Murata 5200 series. This component fits well in industrial, telecommunications, and power supply applications requiring effective common mode noise filtering in electronic circuits. Explore more precision passive components and Leaded Inductors in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3 mH.
It has a maximum DC current rating of 3.5 A.
The DC resistance is 45 mΩ.
This inductor has a voltage rating of 1500 Vrms.
The dimensions are 21 mm in diameter, 31 mm in height, 24 mm in length, and 16.3 mm in depth.
The lead diameter is 1 mm and the lead pitch is 20.32 mm.
It operates reliably within a temperature range from -40°C to 125°C.
This model features a solder termination style.
It is packaged in trays for efficient handling and use.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is suitable for high current switching power supplies and telecom equipment requiring common mode noise filtering.
This model has a pin count of 4, providing stable electrical contact.
