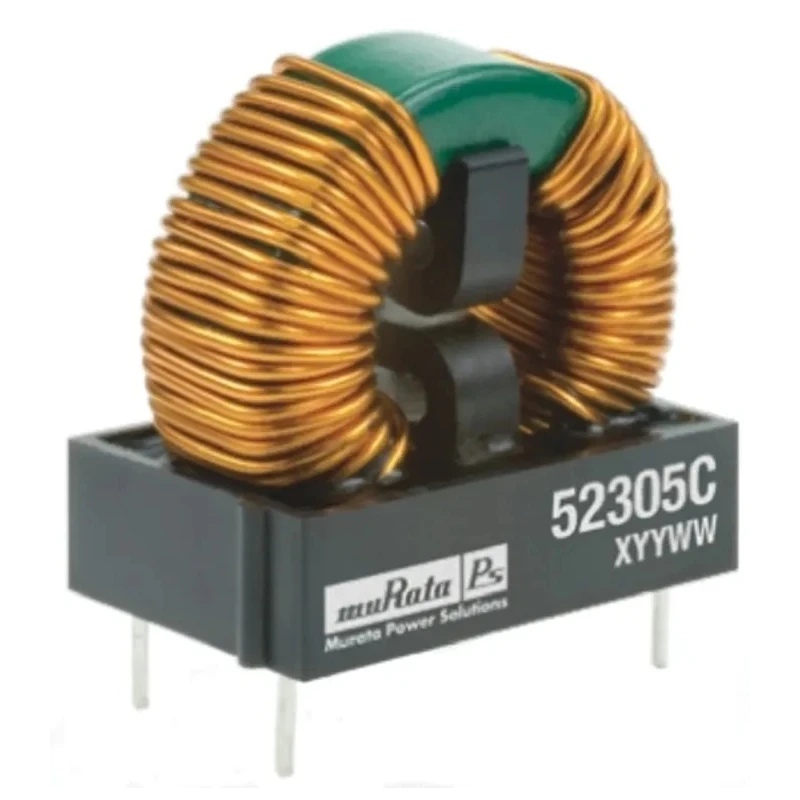

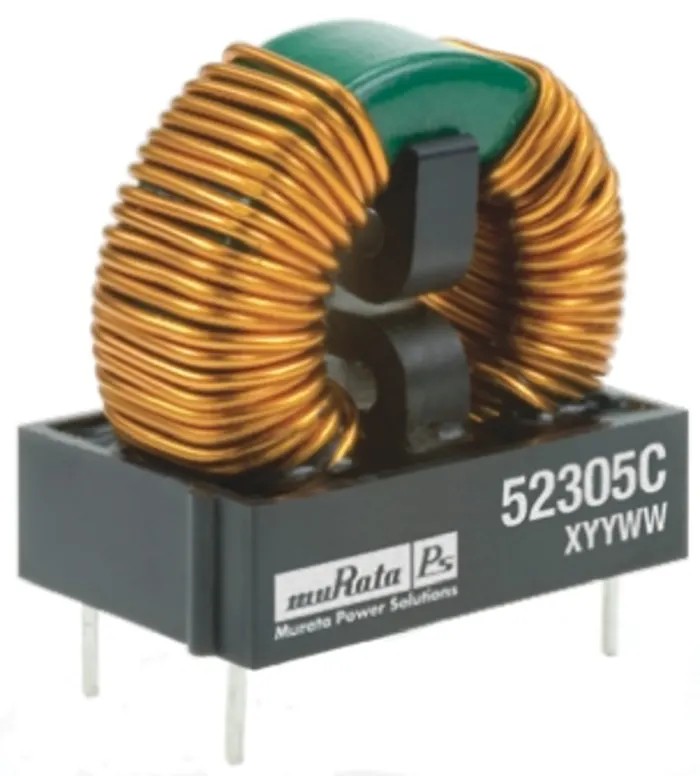

Murata Power Solutions 3 mH Leaded Inductor 3.5 A Idc 45 mΩ Rdc 1500 Vrms 5200 52305C
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 21mm |
| Brand | Murata Power Solutions |
| Height | 31mm |
| Length | 24mm |
| Model | 52305C |
| Depth | 16.3mm |
| Packaging | Tray |
| Mount Type | Radial |
| Series | 5200 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 3mH |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-7119Brand: Murata Power SolutionsManufacturers Part No.: 52305C |
| Maximum DC Current | 3.5A |
| Pin Count | 4 |
| Maximum DC Resistance | 45mΩ |
| Termination Style | Solder |
| Lead Pitch | 20.32mm |
| Lead Diameter | 1mm |
Key Features
- Radial mount type ensures easy PCB assembly.
- Ideal for attenuation of common mode noise up to 100MHz.
- Operating temperature range from -40°C to 125°C for reliable performance.
- Compact dimensions with 21 mm diameter and 31 mm height.
- Termination style is solder for secure electrical connections.
- Manufactured to RoHS standards ensuring environmental compliance.
- Pin count of 4 supports stable circuit integration.
- Lead diameter of 1 mm and lead pitch of 20.32 mm for compatibility with standard PCBs.
Product Description
Murata Power Solutions 52305C 3 mH Leaded Inductor is a high-quality, radial mount passive electronic component designed specifically for efficient attenuation of common mode noise up to frequencies of 100 MHz. Operating with a maximum DC current of 3.5 A and a very low DC resistance of 45 mΩ, this inductor supports high current switching power supplies and telecom equipment applications effectively.
The component is built to handle voltages up to 1500 Vrms with operational temperatures ranging from -40°C to 125°C, making it suitable for demanding industrial and commercial electronic environments. Its dimensions are compact, with a 21 mm diameter, 31 mm height, 24 mm length, and 16.3 mm depth, facilitating space-saving PCB design and assembly.
Manufactured in China and conforming to RoHS standards, this inductor ensures environmentally responsible production. The leaded design uses a solder termination style with a lead diameter of 1 mm and a lead pitch of 20.32 mm. It comes packaged in trays to improve production efficiency during insertion into machinery.
This product is ideal for applications in high current switching power supplies, telecom equipment, and other electronic devices requiring reliable noise filtering. The 4-pin configuration supports stable electrical connections, enhancing circuit performance.
Radial mount type for easy PCB integration. Effective attenuation of common mode noise at frequencies up to 100 MHz. Wide operating temperature range suitable for industrial use. Compact size enhances PCB layout flexibility.
Complies with RoHS environmental standards. Tray packaging improves handling and assembly efficiency. 4-pin electrical connections for stable performance. Manufactured to meet stringent quality standards. Explore the extensive range of electronic components and connectors available at EnvMart to enhance your design projects and commercial production.
Explore more products in our Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3 mH, suitable for efficient noise attenuation.
This inductor has a maximum DC current rating of 3.5 A, allowing it to handle high current applications effectively.
The dimensions of this unit are 21 mm in diameter, 31 mm in height, 24 mm in length, and 16.3 mm in depth, making it compact for PCB design.
The maximum operating temperature for this model is 125°C, allowing it to function reliably in demanding environments.
This inductor features a solder termination style, ensuring secure electrical connections on PCBs.
The lead diameter is 1 mm with a lead pitch of 20.32 mm, compatible with standard PCB layouts.
The DC resistance for this model is 45 mΩ, contributing to its efficiency in power applications.
This inductor is ideal for high current switching power supplies and telecom equipment, effectively attenuating common mode noise.
This inductor is manufactured in China, adhering to RoHS standards for environmental compliance.
The 52305C features a 4-pin configuration, which supports stable circuit integration.
This model is designed for effective attenuation of common mode noise up to frequencies of 100 MHz.
The inductor comes packaged in trays, which enhances production efficiency during assembly and insertion into machinery.
