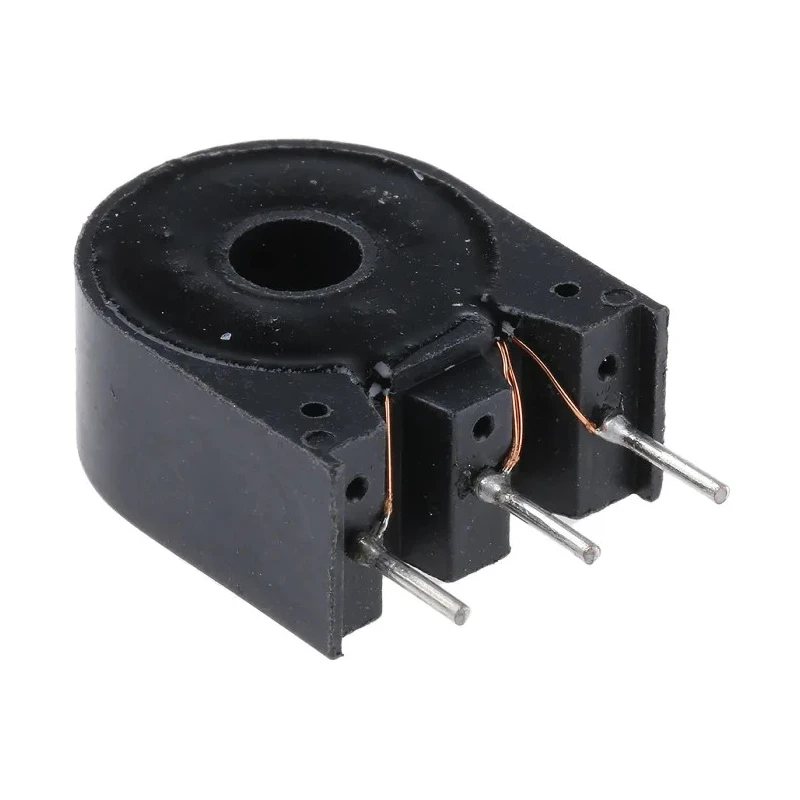

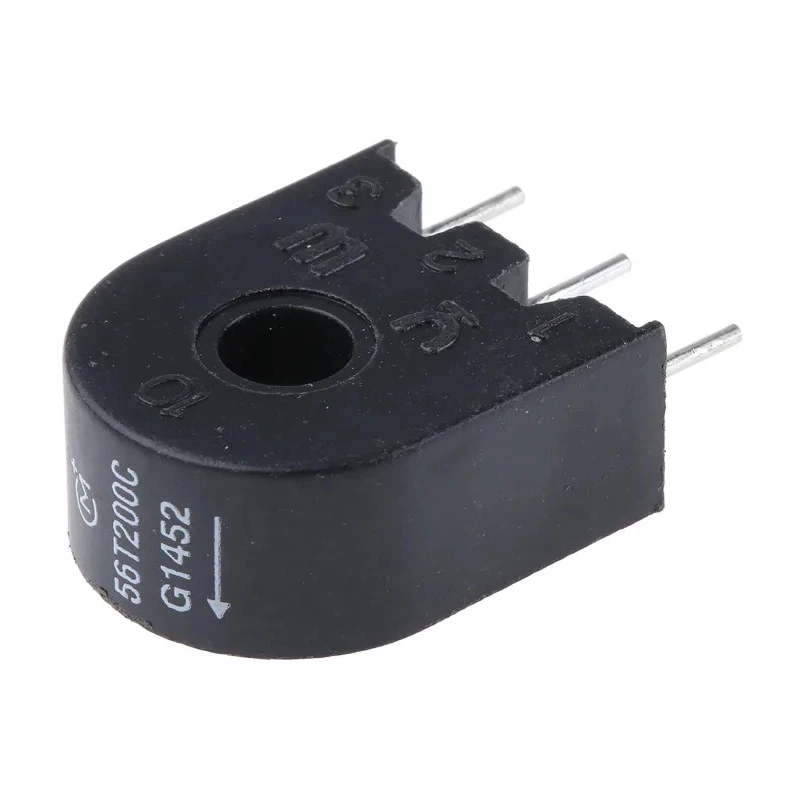

Murata Power Solutions 5600 Series Current Transformer, 10 A Primary Current 56T200C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 16.79mm |
| Model | 56T200C |
| Depth | 20.19mm |
| Width | 8.89mm |
| Mount Type | Through Hole |
| Series | 5600 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Secondary current | 1A |
| Terminal type | Wire |
| Inductance | 72mH |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-7071Brand: Murata Power SolutionsManufacturers Part No.: 56T200C |
| Primary Current | 10A |
| Minimum Operating Frequency | 20kHz |
| Maximum Operating Frequency | 200kHz |
| Primary DC Resistance | 1.87Ω |
| Secondary DC Resistance | 2.81Ω |
Key Features
- Supports primary current rating of 10 A for robust AC current monitoring.
- Features through-hole mount type for secure PCB installation.
- Operates within temperature range from -40°C to 85°C ensuring reliability.
- Maximum operating frequency of 200 kHz suitable for switched-mode power supplies.
- Low primary and secondary DC resistance of 1.87 Ω and 2.81 Ω respectively for efficiency.
- Inductance rating at 72 mH aiding accurate current sensing.
- Terminal type is wire for easy electrical connections.
- Minimum operating frequency rating of 20 kHz enabling versatile applications.
Product Description
Murata Power Solutions 56T200C is a 5600 Series Current Transformer engineered to accurately monitor AC currents with a primary current rating of 10 A and secondary current of 1 A. It is designed for high-frequency current sensing in modern electrical applications.
This current transformer features a through-hole mount type, permitting stable and secure installation on PCBs, ideal for switched-mode power supplies, motor control, and electronic lighting ballasts.
It operates efficiently over a wide temperature range from -40°C to 85°C, making it suitable for demanding industrial environments. The compact physical dimensions - length 16.79 mm, width 8.89 mm, and depth 20.19 mm - allow for integration into space-constrained designs.
The device maintains low primary DC resistance of 1.87 Ω and secondary DC resistance of 2.81 Ω, supporting minimal power loss and improved accuracy. With an inductance of 72 mH, it ensures precise current sensing, suitable for frequencies between 20 kHz and 200 kHz.
Its wire terminal type facilitates straightforward electrical wiring connections. Manufactured in China, this new condition transformer meets the needs of various industrial, laboratory, and commercial power monitoring applications.
Supports primary current rating of 10 A for robust AC current monitoring. Features through-hole mount type for secure PCB installation. Operates within temperature range from -40°C to 85°C ensuring reliability. Compact dimensions: Length 16.79 mm, Width 8.89 mm, Depth 20.19 mm for space saving.
Maximum operating frequency of 200 kHz suitable for switched-mode power supplies. Low primary and secondary DC resistance of 1.87 Ω and 2.81 Ω respectively for efficiency. Inductance rating at 72 mH aiding accurate current sensing.
Terminal type is wire for easy electrical connections. Minimum operating frequency rating of 20 kHz enabling versatile applications.
This Murata Power Solutions Current Transformer is ideal for use in industrial and commercial electrical systems requiring precise current measurement and improved production efficiency. Explore more products in the Power Supplies & Transformers category at EnvMart for related solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 10 A, allowing for robust AC current monitoring.
The maximum operating frequency is 200 kHz, making it suitable for applications like switched-mode power supplies.
It operates efficiently within a temperature range from -40°C to 85°C, ensuring reliability in various environments.
The dimensions are 16.79 mm in length, 8.89 mm in width, and 20.19 mm in depth, allowing for integration into compact spaces.
This model features a through-hole mount type, which allows for secure installation on PCBs.
The inductance rating is 72 mH, which aids in accurate current sensing.
The secondary current rating of this current transformer is 1 A.
It uses a wire terminal type, facilitating straightforward electrical connections.
The primary DC resistance is 1.87 Ω and the secondary DC resistance is 2.81 Ω, supporting minimal power loss.
The minimum operating frequency is 20 kHz, allowing for versatile applications.
It is designed for applications such as motor control, electronic lighting ballasts, and other industrial power monitoring needs.
This current transformer is manufactured in China.
