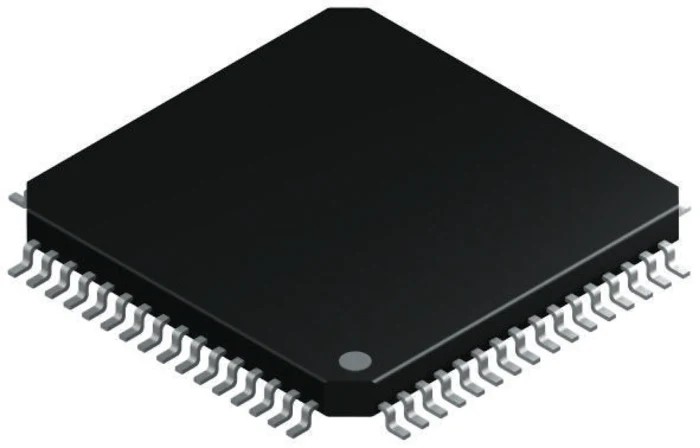

Microchip 8-bit PIC18F Microcontroller 64 MHz, 128kB FLASH, 64-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 10mm |
| Model | PIC18F |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Interface Type | EUSART, I2C, SPI |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-4107P Brand: [Microchip](https://in.rsdelivers.com/brands/microchip)Manufacturers Part No.: PIC18F67K90-I/PTRSL |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 53 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 10 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes 8-bit PIC architecture suitable for robust control applications.
- Features 64-pin TQFP package with surface mount design.
- Includes 128kB of FLASH program memory and 4kB RAM for efficient data processing.
- Operates within voltage ratings from 1.8V to 5.5V with maximum power dissipation up to 1W.
- Equipped with interfaces including EUSART, I2C, and SPI for versatile connectivity.
- Contains 53 programmable I/O pins and 16 ADC channels with 12-bit resolution each.
- Operating temperature range from -40°C to 85°C ensures industrial reliability.
- Incorporates 10 timers and 3 analogue comparators for precise timing and signal comparison.
Product Description
Microchip PIC18F67K90-I/PTRSL is an 8-bit PIC microcontroller operating at a maximum clock frequency of 64 MHz. It features a 128kB FLASH program memory and 4kB RAM, offering ample capacity for embedded application development. This device is packaged in a 64-pin TQFP surface mount form factor, providing 53 programmable I/O pins and support for communication interfaces such as EUSART, I2C, and SPI.
The microcontroller supports a wide operating voltage range between 1.8V and 5.5V and a maximum power dissipation of 1W, suitable for efficient embedded system designs. It includes 16 ADC channels with 12-bit resolution, 10 timers, and 3 analogue comparators, enabling complex timing and analog signal processing tasks.
Designed for operation in harsh industrial environments, the device supports operating temperatures from -40°C to 85°C. Its compact dimensions of 10mm x 10mm x 1mm allow integration into space-constrained PCB layouts. The component is compliant with RoHS standards, ensuring environmentally friendly usage.
Applications of the PIC18F67K90-I/PTRSL microcontroller include industrial automation, consumer electronics, automotive control systems, and communication devices. Its RISC-based instruction set architecture optimizes performance and energy efficiency for embedded firmware.
8-bit PIC architecture with 64 MHz maximum clock frequency. 128kB FLASH program memory with 4kB RAM size. 64-pin TQFP surface mount package design. Interfaces: EUSART, I2C, SPI for flexible communication options. 53 programmable I/O pins and 16 12-bit ADC channels.
Operating voltage range of 1.8V to 5.5V with 1W power dissipation. Industrial temperature support from -40°C to 85°C. Includes 10 timers and 3 analogue comparators for control tasks. Compact physical dimensions of 10mm length, 10mm width, and 1mm height.
RoHS compliant ensuring safe manufacturing standards. Explore a wide range of Microcontrollers in the Electronics & Electricals category at EnvMart for industrial, manufacturing, and engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum clock frequency of 64 MHz.
It features a program memory size of 128kB FLASH.
The operating voltage range is from 1.8V to 5.5V.
It supports EUSART, I2C, and SPI communication interfaces.
The RAM size is 4kB.
It has a maximum power dissipation of 1W.
The operating temperature range is from -40°C to 85°C.
This model includes 16 ADC channels, each with 12-bit resolution.
The package type is TQFP (Thin Quad Flat Package).
