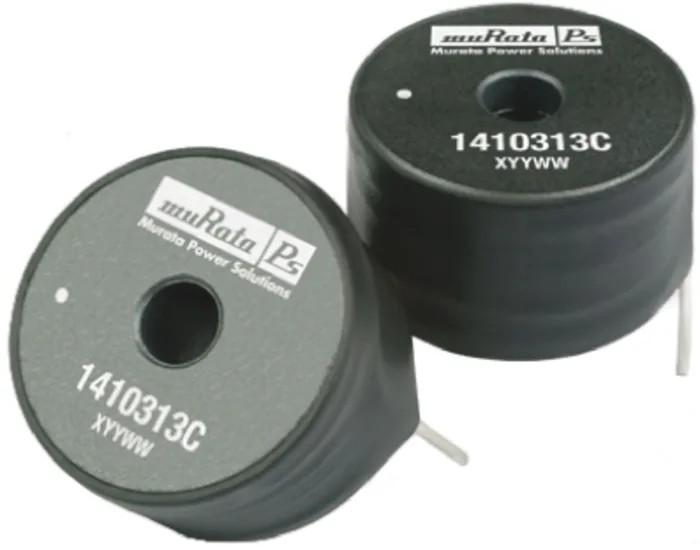

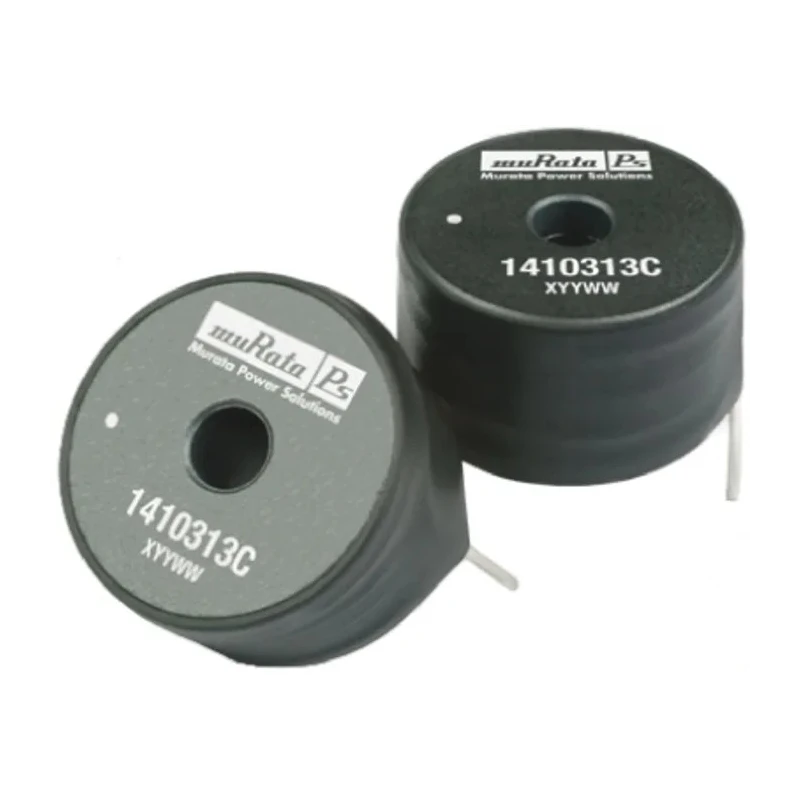

Murata Power Solutions 1.5 mH Leaded Inductor, Radial Mount, Max SRF 800 kHz, Q 47, 1.4 A Idc, 518 mΩ Rdc, 1400 1415514C
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 24.4mm |
| Brand | Murata Power Solutions |
| Operating Temperature | -40 → +85°C |
| Height | 20mm |
| Length | 27.1mm |
| Model | 1415514C |
| Depth | 25.9mm |
| Mount Type | Radial |
| Series | 1400 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 1.5mH |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-6804Brand: Murata Power SolutionsManufacturers Part No.: 1415514C |
| Maximum DC Current | 1.4A |
| Maximum DC Resistance | 518mΩ |
| Inductance Tolerance | ±10% |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 800kHz |
| Minimum Quality Factor | 47 |
| Lead Pitch | 23.2mm |
| Lead Diameter | 0.6mm |
Key Features
- Inductance of 1.5 millihenry with a tolerance of ±10%.
- Maximum DC current rating of 1.4 amperes suitable for demanding circuits.
- Radial mount type with solder termination style for secure PCB installation.
- Maximum DC resistance of 518 milliohms ensuring efficient operation.
- Maximum self-resonant frequency of 800 kilohertz and minimum quality factor of 47.
- Lead diameter measures 0.6 mm with a pitch of 23.2 mm for standard PCB layouts.
- Compact dimensions include diameter 24.4 mm, height 20 mm, depth 25.9 mm, and length 27.1 mm.
- Operating temperature range from -40°C up to 85°C ensures reliable performance.
Product Description
Murata Power Solutions 1415514C 1.5 mH Leaded Inductor from the 1400 series is engineered for power line electronics including switching regulators, filters, and suppression circuits in industrial and commercial applications.
Its radial mount design with easy-strip pre-tinned enamelled copper leads facilitates installation on PCBs or chassis mounting via a central non-magnetic fastener hole. The material used provides high saturation flux density enabling reliable high current handling capabilities.
The inductor is specified with a maximum DC current of 1.4 A and a maximum DC resistance of 518 milliohms. It operates over a wide temperature range from -40°C to 85°C, with an inductance tolerance of ±10% and a maximum self-resonant frequency of 800 kHz ensuring stability across operating conditions.
Key features include its Q factor of 47 and its compact form factor with dimensions including a diameter of 24.4 mm, height of 20 mm, depth of 25.9 mm, and a lead pitch of 23.2 mm. Termination style is solder compatible following RoHS compliance, suitable for electronic assemblies requiring reliable passive components.
Inductance of 1.5 mH with ±10% tolerance. Maximum DC current rating of 1.4 A for high current applications. Radial mount with solder termination for secure PCB integration. Maximum DC resistance of 518 mΩ to minimize losses.
Self-resonant frequency peak at 800 kHz for optimal filtering. Dimensions: 27.1 mm length, 24.4 mm diameter, 20 mm height, 25.9 mm depth. Operating temperature range from -40°C to +85°C. RoHS compliant and manufactured in China.
This leaded inductor is ideal for various industrial electronics, power management circuits, and signal conditioning uses. It suits industries including manufacturing, telecommunications, HVAC systems, and automotive electronics.
Explore more electronic passive components and inductors with Murata Power Solutions at EnvMart for reliable industrial-grade components.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance of 1.5 millihenries with a tolerance of ±10%.
The maximum DC current rating is 1.4 amperes, making it suitable for demanding circuits.
The maximum self-resonant frequency is 800 kilohertz, which ensures stability in various applications.
It has a diameter of 24.4 mm, a height of 20 mm, a depth of 25.9 mm, and a length of 27.1 mm.
The maximum DC resistance is 518 milliohms, which helps minimize losses during operation.
It operates effectively within a temperature range of -40°C to +85°C.
This inductor features a radial mount design with solder termination style for secure PCB installation.
The lead diameter measures 0.6 mm, and the lead pitch is 23.2 mm, suitable for standard PCB layouts.
The minimum quality factor (Q) is 47, indicating its efficiency in filtering applications.
Yes, this inductor is RoHS compliant, making it suitable for electronic assemblies that require adherence to environmental standards.
This model is part of the 1400 series from Murata Power Solutions, designed for power line electronics.
It is ideal for use in power management circuits, switching regulators, filters, and suppression circuits in various industrial and commercial applications.
