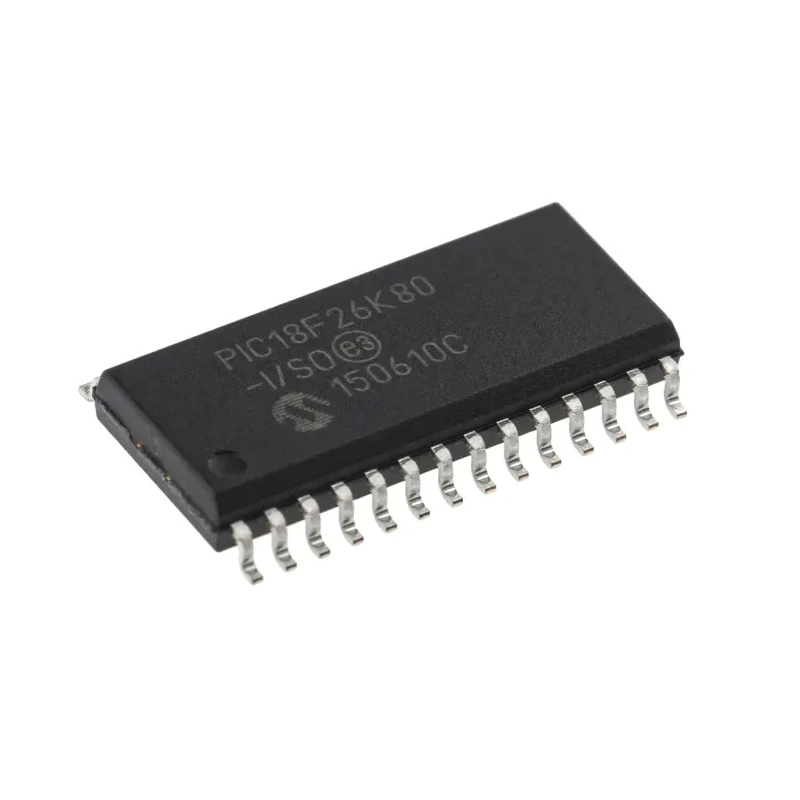

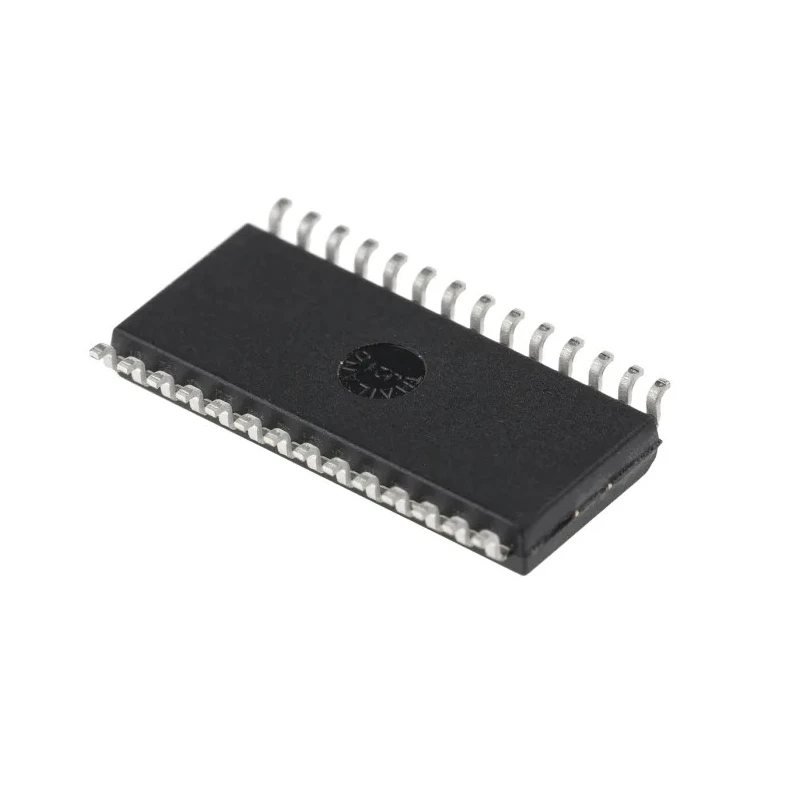

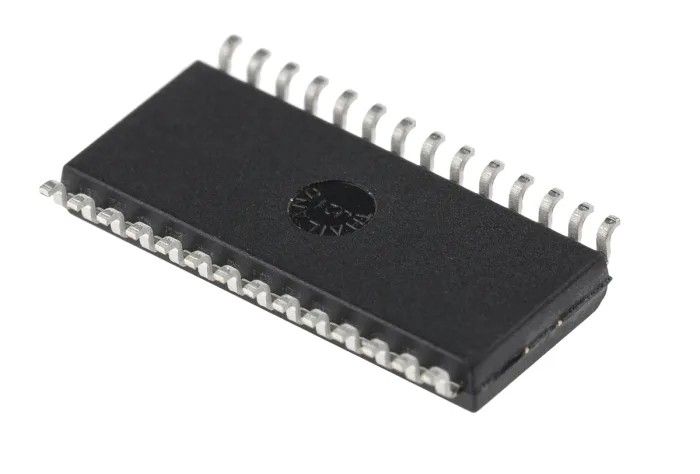

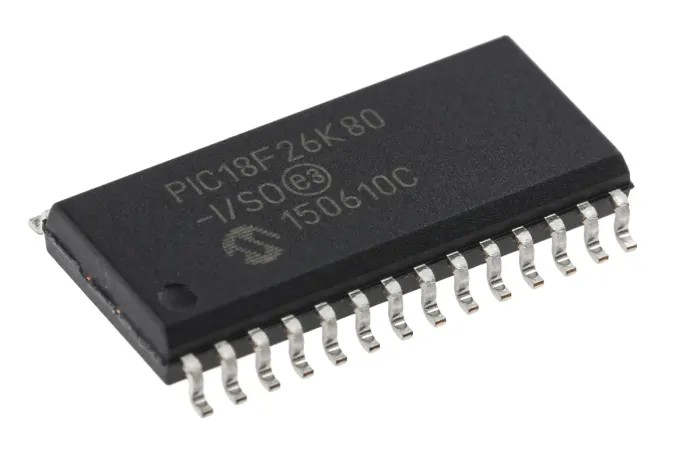

Microchip PIC18F26K80-I/SO 8-bit PIC18F Microcontroller 64 MHz 64kB FLASH 28-Pin SOIC

Microchip PIC18F26K80-I/SO is a high-performance 8-bit PIC18F microcontroller designed for advanced embedded system applications. Operating at a clock speed of 64 MHz, it provides a powerful processing platform with 64kB of FLASH program memory and 1kB RAM memory. It features a 28-pin SOIC surface mount package measuring 17.9 mm in length, 7.5 mm in width, and 2.05 mm in height, suitable for compact electronic designs.

This microcontroller supports a data bus width of 8 bits and allows up to 25 programmable input/output pins, offering significant flexibility for I/O expansion. It includes 8 channels of 12-bit analog-to-digital converters (ADCs) and 2 analogue comparators, enabling accurate analog signal processing. The device is capable of operating within a wide voltage supply range from 1.8 V up to 5.5 V, making it adaptable to various power supply conditions.

Designed for reliable operation in industrial environments, the PIC18F26K80-I/SO functions effectively over a broad temperature range from -40°C to 85°C. It integrates 5 timers to facilitate complex timing applications and employs a Reduced Instruction Set Computing (RISC) architecture for optimized performance and efficiency. The maximum power dissipation is rated at 1 watt, supporting energy-conscious designs.

The device complies with RoHS standards, ensuring it meets environmental and safety regulations for electronic components. Its small form factor and comprehensive feature set make it suitable for applications in industrial automation, consumer electronics, instrumentation, and automotive systems requiring robust microcontroller solutions.

This microcontroller is part of the PIC18F series supporting 8-bit data bus width. It operates at a maximum supply voltage of 5.5 V and minimum supply voltage of 1.8 V. Includes 1kB RAM and 25 programmable I/O pins for versatile interfacing.

Equipped with 8 x 12-bit ADCs and 2 analogue comparators for precise analog-to-digital conversions. Designed for surface mount with compact 28-pin SOIC package, measuring 17.9 mm by 7.5 mm. Operates over a wide temperature range from -40°C to 85°C ensuring reliability in harsh environments.

Incorporates 5 timers and utilizes RISC instruction set architecture for efficient performance. Power dissipation maximum of 1 W supports energy-efficient operation. Complies with RoHS standards ensuring environmental safety and regulatory compliance.

Ideal for embedded system applications requiring robust microcontroller capabilities. Explore more microcontroller products from Microchip and other leading brands at EnvMart for advanced design and manufacturing needs.
