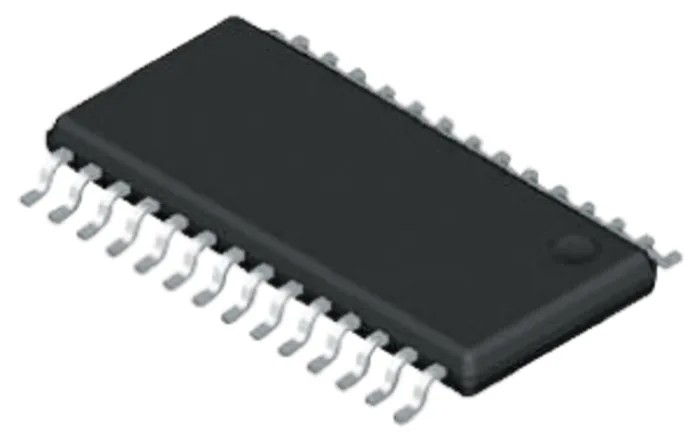

Microchip PIC18F 8-bit PIC Microcontroller, 64 MHz, 64kB FLASH, 28-Pin SSOP PIC18LF26K22-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 10.2mm |
| Model | PIC18LF26K22-I/SS |
| Width | 5.3mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-4450Brand: MicrochipManufacturers Part No.: PIC18LF26K22-I/SS |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 7 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates up to a maximum clock frequency of 64 MHz.
- Features 64kB of FLASH program memory for robust embedded applications.
- Includes 1kB RAM and 25 programmable input/output pins.
- Supports low voltage operation between 1.8 V and 3.6 V providing flexibility in power management.
- Equipped with 7 timers and 2 analogue comparators for advanced control capabilities.
- Operating temperature ranges from -40°C to 85°C ensuring use in harsh environments.
- Compact SSOP package measuring 10.2 x 5.3 x 1.75 mm optimizes PCB space usage.
- Implements RISC instruction set architecture for efficient processing.
Product Description
Microchip PIC18LF26K22-I/SS 8-bit PIC Microcontroller is a high-performance microcontroller designed for embedded applications requiring speed, memory, and flexible interfacing. Operating at a maximum clock frequency of 64 MHz, it integrates 64kB of FLASH memory to store program code efficiently. This device supports a wide operating voltage range from 1.8 V to 3.6 V, making it suitable for battery-powered or energy-sensitive applications.
Featuring 25 programmable input/output pins and 7 timers, the PIC18LF26K22-I/SS is ideal for precise timing and control in industrial automation, instrumentation, and consumer electronics. It also includes 2 analogue comparators and 17 channels of 10-bit Analog-to-Digital Converters (ADCs), enabling it to interface effectively with analog sensors and devices.
The microcontroller comes in a 28-pin SSOP surface-mount package with compact dimensions of 10.2 mm in length, 5.3 mm in width, and a height of 1.75 mm, allowing for reduced PCB footprint and improved thermal management. It is built on a Reduced Instruction Set Computing (RISC) architecture, providing efficient instruction execution and higher code density.
Designed to operate reliably over a temperature range from -40°C to 85°C, this component is suitable for a variety of industrial, laboratory, manufacturing, and commercial control applications. Although not specified for automotive standards, it performs well in general-purpose embedded system designs.
Operates up to 64 MHz maximum clock speed. 64kB FLASH program memory for extensive program data. 1kB RAM for temporary data storage and processing. 25 programmable I/O pins for device interfacing. Operates within 1.8 V to 3.6 V supply voltage range.
Includes 7 hardware timers for time-based control functions. Contains 2 internal analog comparators. Supports 17 channels of 10-bit analog-to-digital conversion. Compact 28-pin SSOP package enhances PCB integration. Operating temperature range of -40°C to +85°C for rugged applications.
This microcontroller is suitable for embedded system engineers designing applications in industrial automation, consumer electronics, HVAC systems, laboratory instrumentation, and manufacturing controls. Its flexible I/O and analog features make it versatile for sensor integration and control logic.
Explore more embedded and microcontroller products on EnvMart to find advanced solutions for your design requirements.
Explore more products in our Microcontrollers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC18LF26K22-I/SS operates at a maximum clock frequency of 64 MHz.
It features 64kB of FLASH program memory for storing program code.
This microcontroller supports a supply voltage range from 1.8 V to 3.6 V.
It includes 25 programmable input/output pins for device interfacing.
The microcontroller comes in a compact SSOP package measuring 10.2 mm in length, 5.3 mm in width, and 1.75 mm in height.
It is designed to operate reliably over a temperature range from -40°C to 85°C.
This model is equipped with 7 hardware timers for time-based control functions.
Yes, it includes 2 internal analog comparators and supports 17 channels of 10-bit Analog-to-Digital Conversion (ADC).
It implements a Reduced Instruction Set Computing (RISC) architecture for efficient processing.
The PIC18LF26K22-I/SS has 1kB of RAM for temporary data storage and processing.
It comes in a 28-pin SSOP surface-mount package, which optimizes PCB space usage.
This microcontroller is suitable for applications in industrial automation, consumer electronics, HVAC systems, and laboratory instrumentation.
