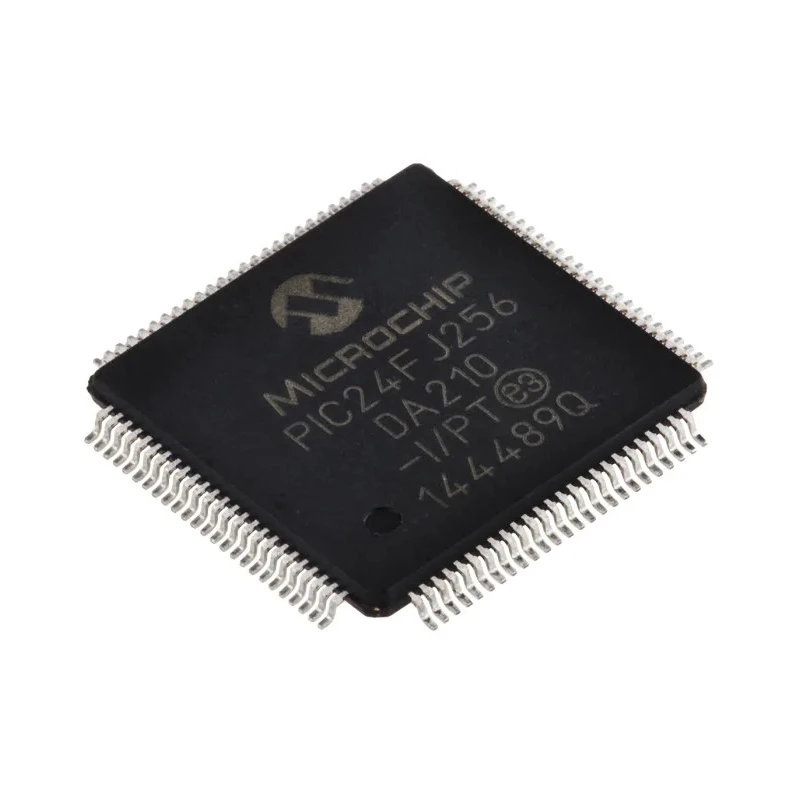

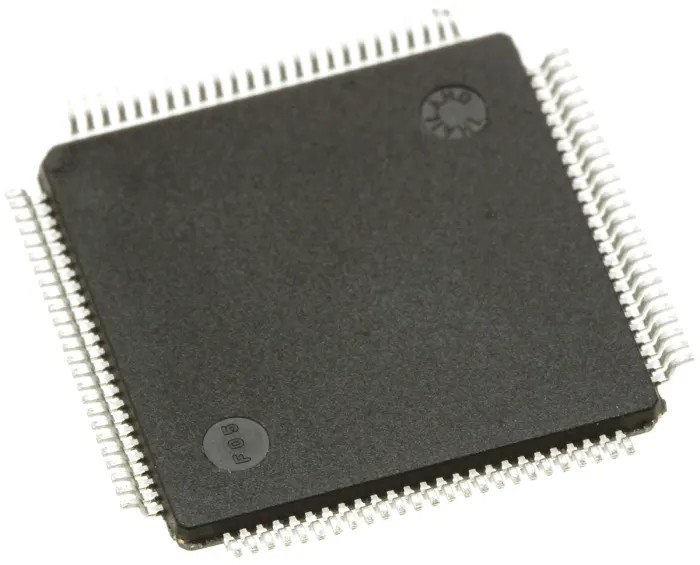

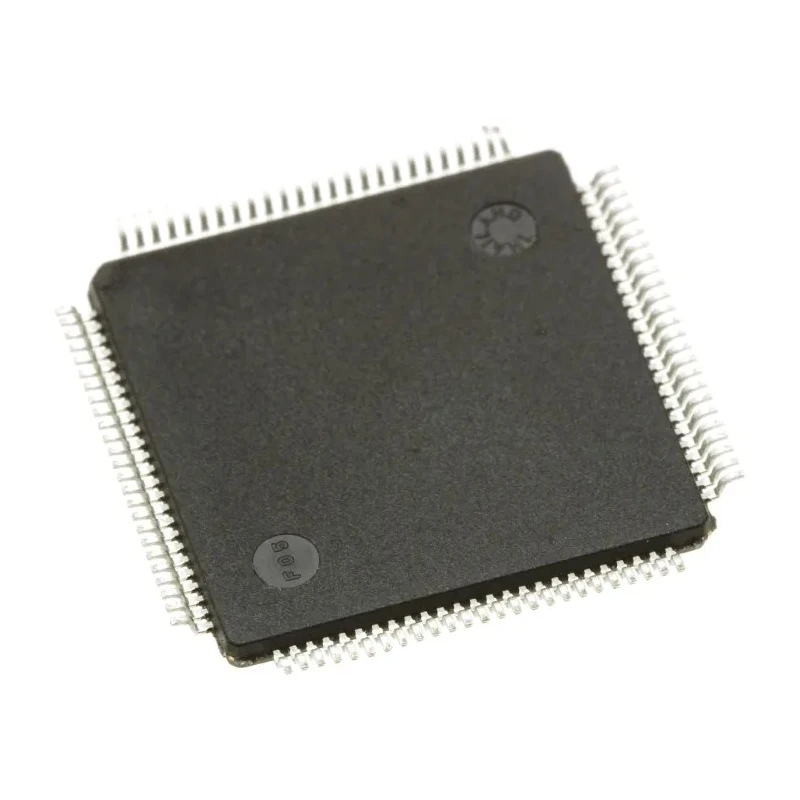

Microchip 16 bit PIC PIC24FJ Microcontroller 32 MHz 256kB FLASH 100-Pin TQFP PIC24FJ256DA210-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 12mm |
| Model | PIC24FJ256DA210-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 96kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-4110Brand: MicrochipManufacturers Part No.: PIC24FJ256DA210-I/PT |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
| Device Core | PIC |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC, DSP |
| ADCs | 24 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 3.6 V and minimum voltage of 2.2 V.
- Includes 96kB RAM for efficient data handling.
- Features 3 analogue comparators and 24 ADC channels at 10 bit resolution.
- Supports 5 timers with RISC and DSP instruction set architecture.
- Designed for extended temperature range from -40°C to +85°C.
- Compact dimensions of 12 mm length, 12 mm width, and 1 mm height.
- Surface mount type suitable for modern automated assembly.
- Ideal for electronic, industrial, and embedded system applications.
Product Description
Microchip PIC24FJ256DA210-I/PT is a 16 bit PIC microcontroller that operates at a maximum clock frequency of 32 MHz, featuring a robust 256kB FLASH program memory and 96kB RAM. It is housed in a 100-Pin Thin Quad Flat Package (TQFP), designed for surface mount applications.
This microcontroller supports a wide operating voltage range from 2.2 V minimum up to 3.6 V maximum, making it suitable for versatile embedded designs. It includes 3 analogue comparators and high-resolution ADCs comprising 24 channels at 10 bit precision. The product operates reliably across a broad temperature range from -40°C to 85°C, ensuring durability in industrial environments.
The device architecture includes 5 timers and uses RISC plus DSP instruction set for efficient processing, enabling advanced computation tasks with low power consumption. The compact physical dimensions of 12 mm by 12 mm by 1 mm allow for integration in space-constrained PCB designs.
This microcontroller is ideal for applications in industrial automation, embedded control systems, and electronic component design. Its package and pin count facilitate flexible interfacing, optimizing integration into complex systems.
Maximum clock frequency supports fast processing tasks. FLASH memory ensures reliable code storage. Surface mount TQFP package suited for automated assembly. Extended operating temperature range for industrial use. Multiple timers and ADC channels for versatile functionality.
Choose the Microchip PIC24FJ256DA210-I/PT for advanced, reliable microcontroller solutions across diverse industrial and electronic applications. Discover more microcontrollers and electronic components in the Microcontrollers category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC24FJ256DA210-I/PT operates at a maximum clock frequency of 32 MHz.
It features a program memory size of 256kB, utilizing FLASH memory type for reliable code storage.
The device operates with a supply voltage ranging from a minimum of 2.2 V to a maximum of 3.6 V.
This model supports 24 ADC channels, each providing 10-bit resolution.
The dimensions of this microcontroller are 12 mm in length, 12 mm in width, and 1 mm in height.
It is designed to operate within an extended temperature range from -40°C to 85°C.
The device includes 5 timers, enhancing its functionality for various applications.
It is housed in a 100-Pin Thin Quad Flat Package (TQFP), suitable for surface mount applications.
It uses a RISC and DSP instruction set architecture for efficient processing.
This microcontroller has a RAM size of 96kB, allowing for efficient data handling.
It includes 3 analogue comparators for enhanced signal processing capabilities.
This model is ideal for applications in industrial automation, embedded control systems, and electronic component design.
