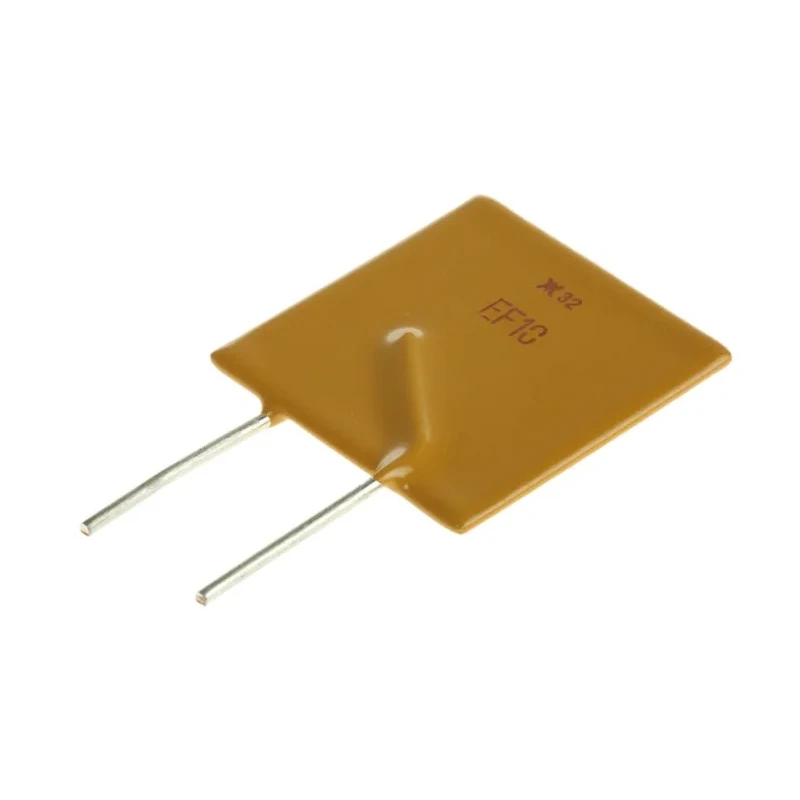

Littelfuse 10 A Resettable Fuse, 32V dc AHEF1000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 32V dc |
| Brand | Littelfuse |
| Height | 27.9mm |
| Length | 23.5mm |
| Model | AHEF1000 |
| Width | 4mm |
| Current Rating | 100A |
| Series | AHEF |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 20A |
| Power Dissipation | 7W |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-7534Brand: LittelfuseManufacturers Part No.: AHEF1000 |
| Time to Trip | 15s |
| Hold Current | 10A |
| Minimum Resistance | 0.006Ω |
| Maximum Resistance | 16mΩ |
| Lead Orientation | Radial |
Key Features
- Automatically resets itself thousands of times for maintenance-free operation.
- Compact radial design eliminates need for a fuseholder.
- Designed for telematics, infotainment, audio visual and HVAC system protections.
- Fast response with a 15-second trip time at 20A trip current.
- RoHS compliant and meets applicable automotive industry standards.
- Maintains circuit protection during overcurrent and short circuit conditions.
- Power dissipation rating of 7W ensures reliable thermal management.
- Compatible with high-volume electronics assembly processes.
Product Description
Littelfuse AHEF1000 Resettable Fuse 10 A 32V dc is a maintenance-free, radial leaded PolySwitch PPTC fuse specifically designed to protect automotive and electronics circuits against excessive current. It has a trip current of 20A and holds a current rating of 10A, with a quick time to trip of 15 seconds, ensuring rapid response to overcurrent or short circuit conditions. The fuse is compact with dimensions 23.5mm length, 27.9mm height, and 4mm width, allowing for space-saving PCB installations.
This fuse is ideal for use in telematics, infotainment systems, LCD back-light heaters, power and cigarette lighter outlets, motor circuit protection for power door-locks, mirrors, lumbar pumps, seats, sunroofs, windows, as well as overcurrent protection in HVAC and cooling fan systems. It is fully RoHS compliant and meets the AEC-Q200 automotive electronics component standard.
The Littelfuse AHEF1000 fuse features a rapid switch from a low resistance state to a high resistance state when a fault occurs, automatically resetting once the fault is cleared and power is removed. This ensures protection with minimal downtime and maintenance.
Automatically resets itself thousands of times for maintenance-free operation. Compact radial design eliminates need for a fuseholder. Designed for telematics, infotainment, audio visual and HVAC system protections. Fast response with a 15-second trip time at 20A trip current.
RoHS compliant and meets applicable automotive industry standards. Maintains circuit protection during overcurrent and short circuit conditions. Power dissipation rating of 7W ensures reliable thermal management. Compatible with high-volume electronics assembly processes.
This resettable fuse is suitable for a broad range of industrial and automotive applications including security systems, power supplies, automotive equipment, instrumentation, control systems, computers, and telecommunications. It ensures enhanced device and circuit longevity by providing reliable overcurrent protection in a compact design.
Explore the full range of Resettable Fuses at EnvMart to find compatible and high-quality components for your industrial and automotive circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse AHEF1000 has a current rating of 10A.
The trip current for this model is 20A, with a time to trip of 15 seconds.
This resettable fuse measures 23.5mm in length, 27.9mm in height, and 4mm in width.
The maximum operating temperature for the Littelfuse AHEF1000 is 60°C.
Yes, the Littelfuse AHEF1000 is RoHS compliant and meets applicable automotive industry standards.
The power dissipation rating for the AHEF1000 is 7W, which ensures reliable thermal management.
This resettable fuse is suitable for applications in telematics, infotainment systems, HVAC systems, and various automotive circuits.
The minimum operating temperature for the Littelfuse AHEF1000 is -40°C.
The lead orientation for this fuse is radial.
The minimum resistance is 0.006Ω and the maximum resistance is 16mΩ.
The AHEF1000 automatically resets itself once the fault is cleared and power is removed, allowing for maintenance-free operation.
The AHEF1000 is part of the AHEF series of resettable fuses.
