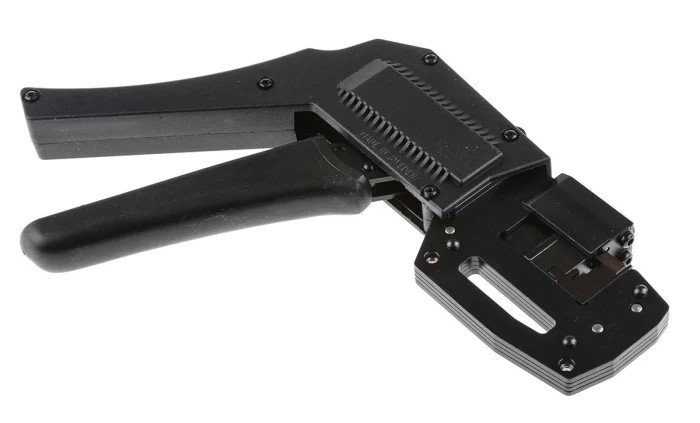

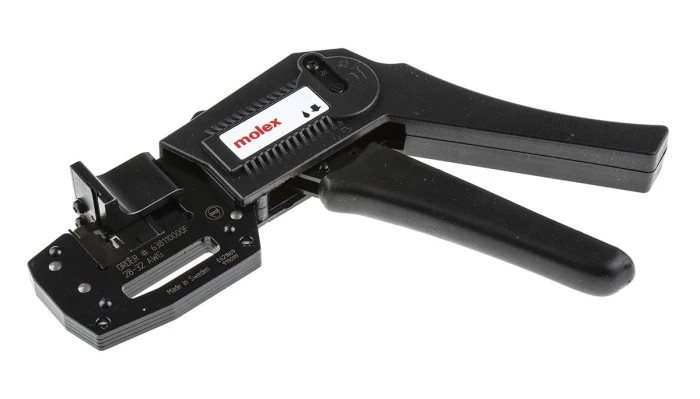

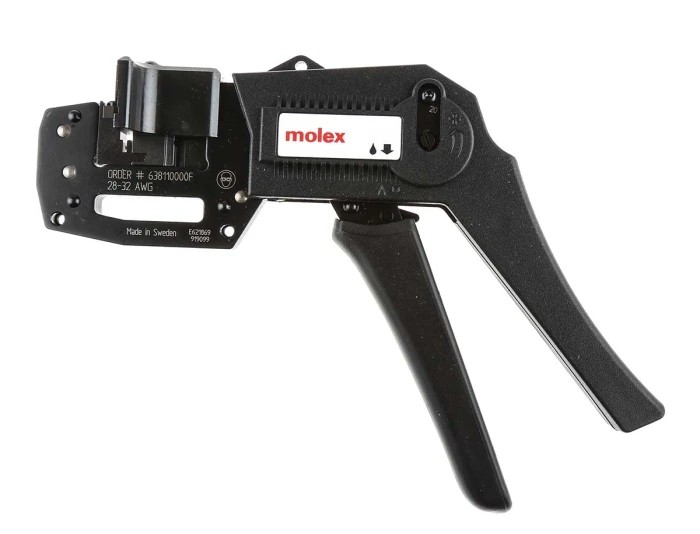

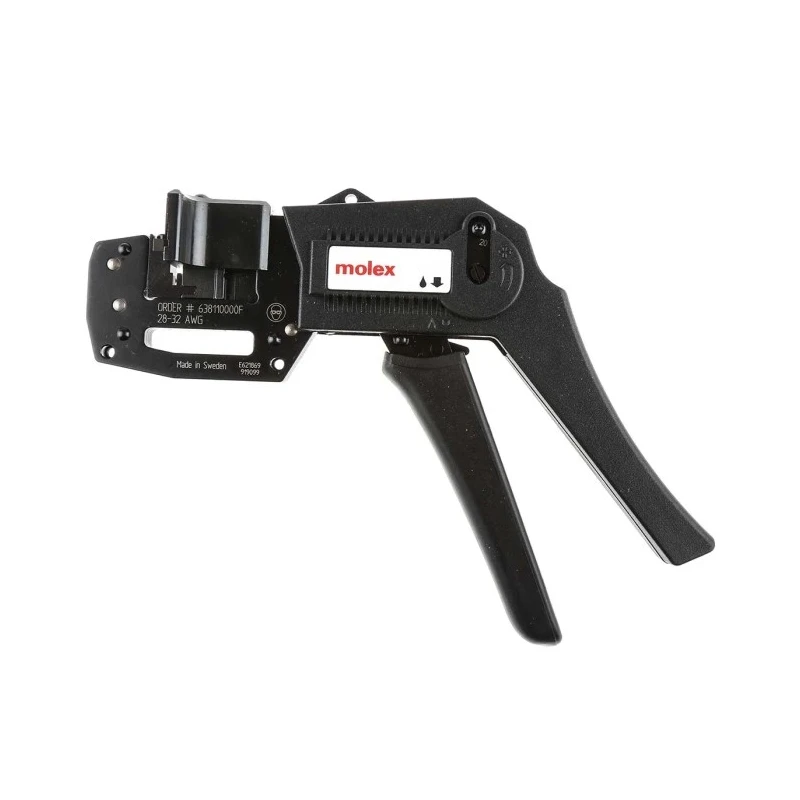

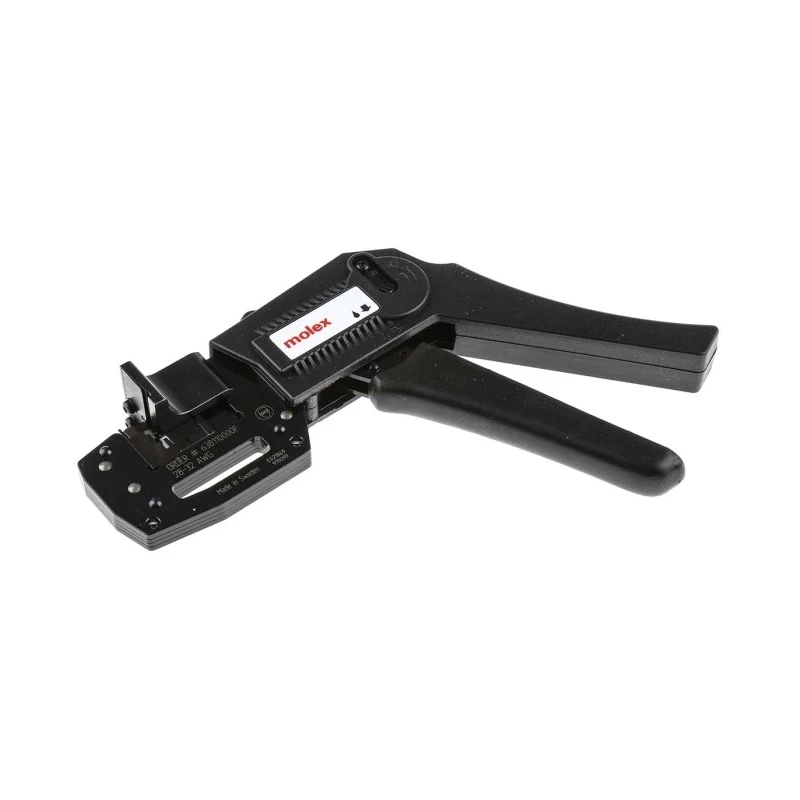

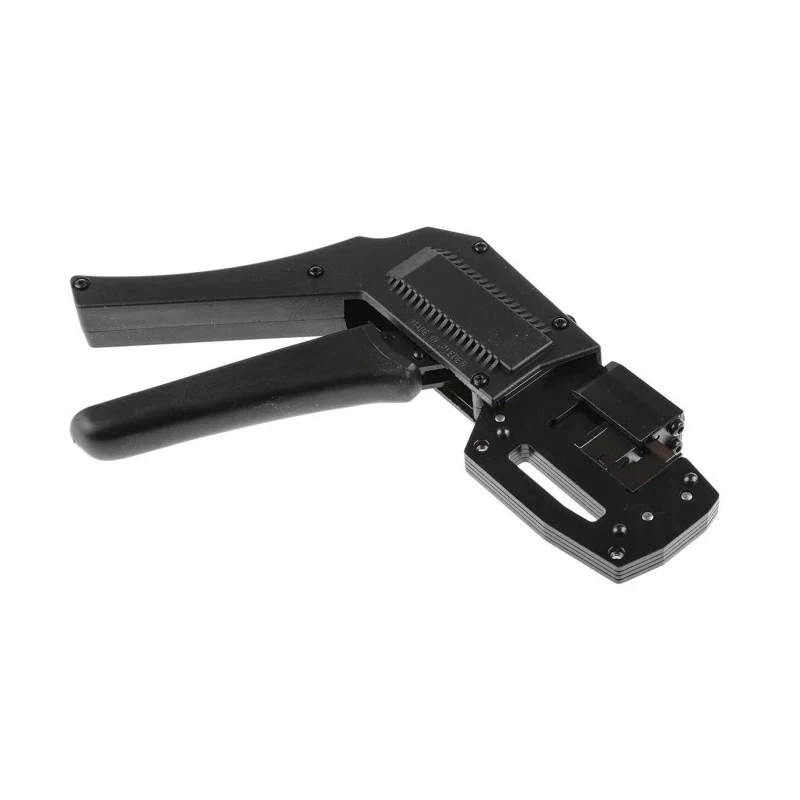

Molex Hand Crimp Tool for PicoBlade Receptacle 32 to 26AWG, Ratcheting Operation, 1 in 63811-0000

Molex 63811-0000 is a high-quality hand crimping tool specifically designed for PicoBlade receptacle terminals ranging from 32 to 26 AWG wire sizes with a compact 1 inch length tool size. This ratcheting hand tool produces reliable wire-to-board mechanical crimps that ensure secure and gas-tight electrical connections essential in sensitive electronic circuits.

The ratchet mechanism is pre-set to a specific force and remains locked until the full crimp cycle is achieved, preventing partial crimps and maintaining consistent high-quality crimps. The handles open only after completion of the cycle, facilitating repeated accurate terminations without operator fatigue. The ratchet release lever allows easy handling of any jamming or misalignment during the process.

Compatible with Molex 50058 and 50079 series PicoBlade terminals on reels, this tool simplifies mounting and cutting of reeled terminals in wire harness or PCB assembly lines. Its ergonomic handles provide precision control ideal for delicate cable and wire management tasks.

Applications include telecommunications, electronics manufacturing, and general cable assembly requiring precise and secure wire-to-board connections. The tool is crafted from durable materials to withstand rigorous daily industrial use.

Ensures full crimp cycles for consistent electrical and insulation crimps preventing corrosion and mechanical failure. Facilitates quick termination of reeled terminals with improved efficiency in production processes. Ratcheting mechanism prevents operator error by locking during the crimp process.

Ergonomic design reduces hand strain during repetitive crimping operations. Suitable for telecommunications and general wire management applications.

This Molex hand crimp tool belongs to the 207129 series and is identified by model number 63811-0000. It is an essential tool for professionals demanding assembly accuracy in industrial, telecommunications, and manufacturing environments. Browse EnvMart’s extensive range of hand tools and crimping equipment for compatible accessories and complementary products.
