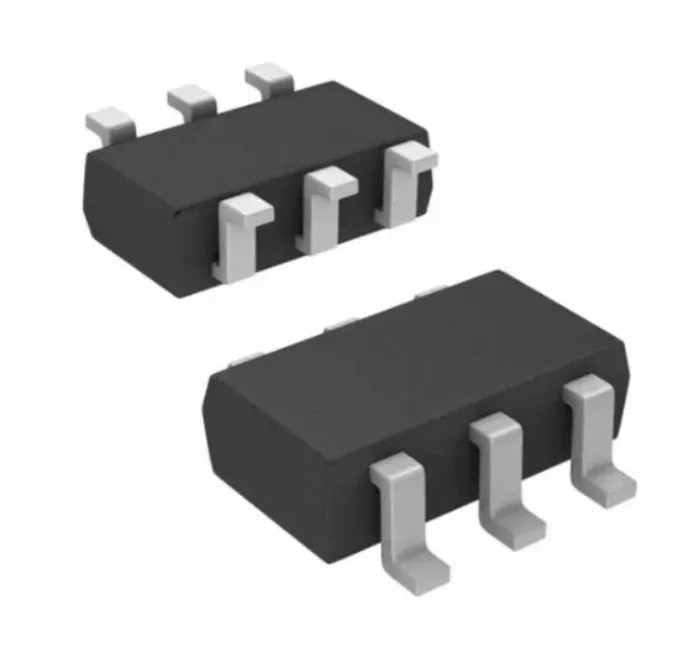

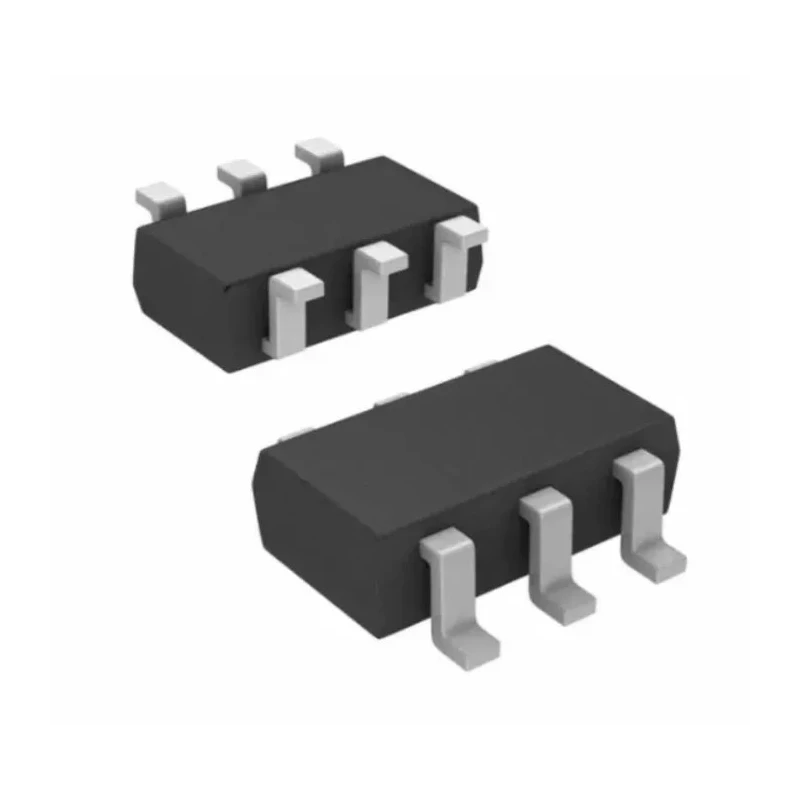

Vishay Analogue Switch, 1 CMOS Dual SPST, 6-Pin TSOP, -4.5V to 36V Supply Voltage, 20Ω On State Resistance DG467DV-T1-E3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 3.05mm |
| Model | DG467DV-T1-E3 |
| Width | 1.65mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG467 |
| Configuration | Dual SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-2908Brand: VishayManufacturers Part No.: DG467DV-T1-E3 |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -4.5V |
| Maximum On State Resistance | 20Ω |
Key Features
- Operates across a wide supply voltage range from -4.5V to 36V.
- Features a low on-state resistance of 20 ohms for minimal signal loss.
- Supports industrial temperature range from -40°C to 85°C.
- Compact surface-mount device suitable for automated assembly processes.
- Ideal for signal routing in mixed-signal circuits and measurement instruments.
- Compatible with CMOS logic-level control and TTL outputs.
- Designed in a low-profile TSOP package to save PCB space.
- Suitable for applications such as audio path routing and level switching.
Product Description
Vishay DG467DV-T1-E3 analogue switch is a CMOS logic family device featuring dual single-pole single-throw (SPST) switching elements within a compact 6-pin TSOP surface-mount package. It supports a broad supply voltage range from -4.5V up to 36V and operates reliably in ambient temperatures from -40°C to 85°C, making it suitable for various industrial electronics applications.
This device boasts a low on-state resistance of 20 ohms, ensuring minimal signal attenuation in analogue signal routing tasks. Its dual SPST configuration permits independent switching of two separate signals, enhancing flexibility in mixed-signal control systems.
Designed with automated assembly in mind, the low-profile TSOP package enables space-saving PCB layouts and compatibility with standard pick-and-place and reflow soldering processes.
Common uses include analogue signal multiplexing in measurement instruments, level switching in mixed-signal devices, routing audio paths in compact electronic designs, and prototype board applications requiring reliable, small footprint switches.
Operates on a supply voltage range from -4.5V to 36V for wide versatility. Low 20Ω on-state resistance reduces signal distortion. Wide operating temperature range of -40°C to 85°C ensures robust industrial performance. Dual SPST configuration allows two independent switching paths.
Surface-mount TSOP package suitable for automated assembly. CMOS logic-level control provides low input current and predictable switching. Compact footprint aids in space-constrained board designs. Not qualified for automotive use, targeting general industrial electronics.
This product is designed for use in industrial, laboratory, and commercial electronics environments requiring dependable analogue switching. It is RoHS compliant and manufactured in China.
Explore more Analogue Switches and multiplexer ICs on EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates across a wide supply voltage range from -4.5V to 36V.
The on-state resistance is 20 ohms, which helps minimize signal loss.
It operates reliably in ambient temperatures from -40°C to 85°C.
It is designed in a low-profile TSOP package, suitable for surface mounting.
This model features a 6-pin configuration.
It supports CMOS logic-level control and TTL outputs.
It has a dual single-pole single-throw (SPST) configuration, allowing independent switching of two signals.
Yes, its low-profile TSOP package is designed for compatibility with automated assembly processes.
Common applications include analogue signal multiplexing, level switching in mixed-signal devices, and audio path routing.
The dimensions are 3.05mm in length, 1.65mm in width, and 1mm in height.
It is RoHS compliant, ensuring it meets environmental safety standards.
There is 1 element per chip in the DG467DV-T1-E3.
