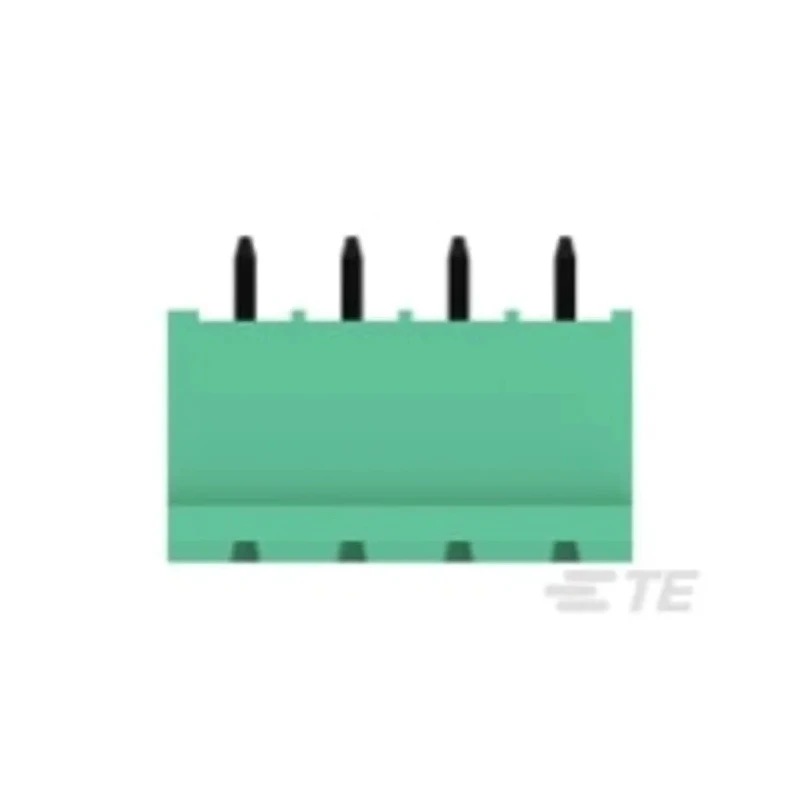

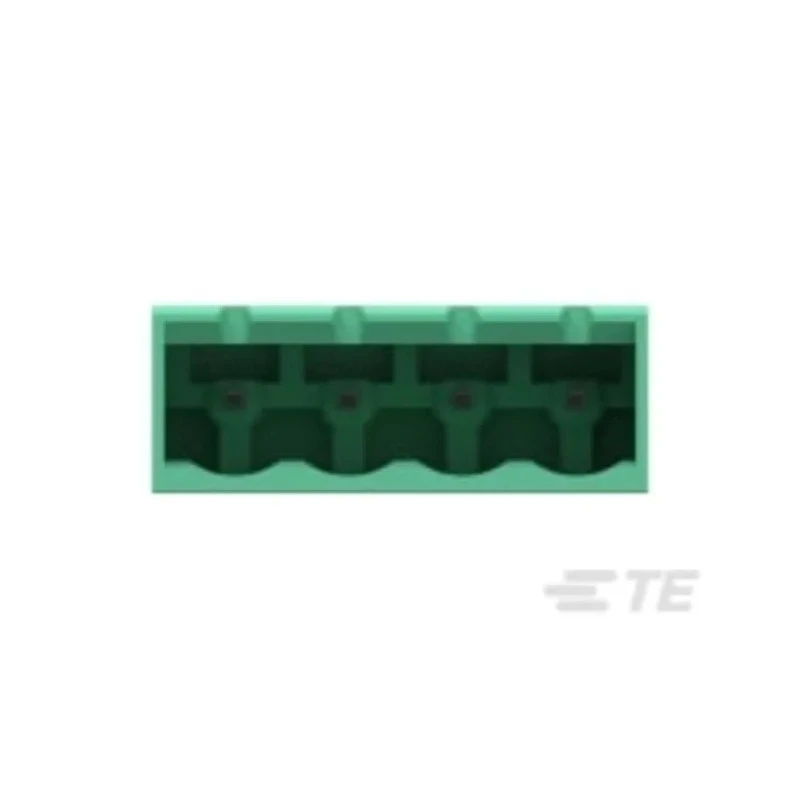

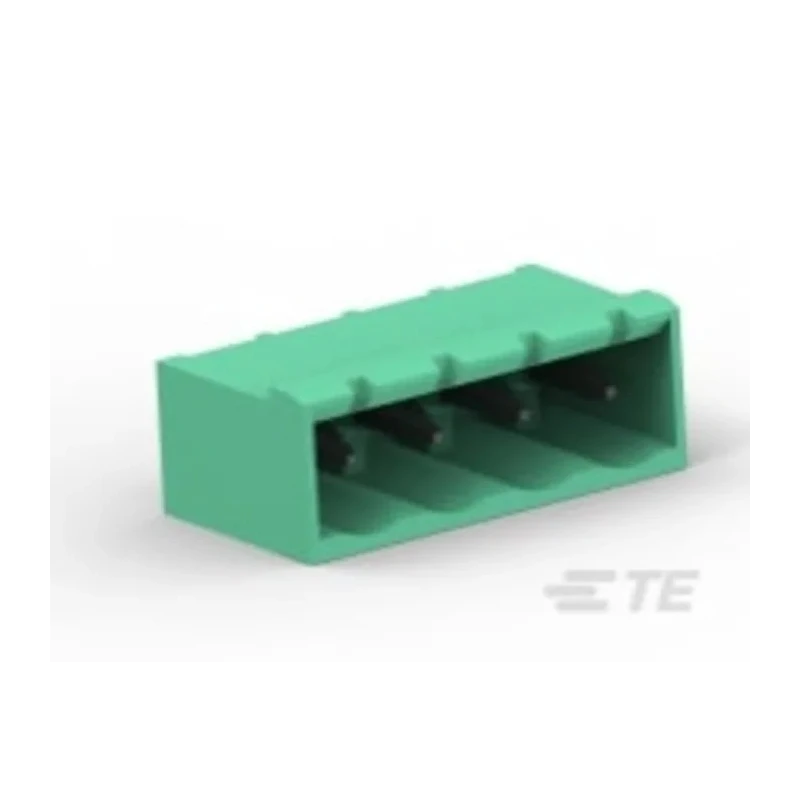

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact 5.08 mm Pitch 1 Row 796636-4
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 15A |
| Model | 796636-4 |
| Housing Material | Nylon |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0144PBrand: TE ConnectivityManufacturers Part No.: 796636-4 |
| Number of Contacts | 4 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Features a straight orientation with a green nylon housing for durability.
- Designed for 300V AC voltage and a current rating of 15A for robust electrical applications.
- Supports solder wire connection method for secure and stable contacts.
- Compatible with minimum wire sizes of 0.05 mm² (12 AWG) and maximum wire sizes of 3 mm² (30 AWG).
- Manufactured in Italy, ensuring high-quality standards and compliance.
- Suitable for use in industrial, electronic manufacturing, and PCB assembly applications.
- Pluggable design enables efficient installation and maintenance in complex circuits.
- Part of the Buchanan series offering standardized terminal block solutions.
Product Description
TE Connectivity 796636-4 Buchanan Series pluggable terminal block is a 4-contact, 1-row terminal block with a 5.08 mm pitch designed for PCB mounting. Its rugged nylon housing and straight connector orientation provide durability and ease of use in electronic assemblies. The block supports solder wire connection method ensuring reliable electrical connectivity.
Rated for 15A current at 300V AC voltage, this terminal block accommodates wire sizes ranging from 0.05 mm² to 3 mm² (12 AWG to 30 AWG), making it suitable for diverse wiring requirements. The green polyamide 6.6 GF housing material guarantees electrical insulation and resistance to mechanical stress.
Manufactured in Italy, the TE Connectivity Buchanan series terminal blocks provide standardized solutions for power and signal connections in industrial, electronics manufacturing, HVAC, and commercial applications. Their pluggable design allows easy installation and maintenance in complex circuit environments.
This product is ideal for a wide range of industrial and commercial electronic systems requiring secure and efficient PCB terminal connections. It is part of a broader portfolio of power connectors and terminal blocks widely used in advanced automation, control panels, and electronic equipment assembly.
Features a straight orientation with a green nylon housing for durability. Designed for 300V AC voltage and a current rating of 15A for robust electrical applications. Supports solder wire connection method for secure and stable contacts.
Compatible with minimum wire sizes of 0.05 mm² (12 AWG) and maximum wire sizes of 3 mm² (30 AWG). Manufactured in Italy, ensuring high-quality standards and compliance. Suitable for use in industrial, electronic manufacturing, and PCB assembly applications.
Pluggable design enables efficient installation and maintenance in complex circuits. Part of the Buchanan series offering standardized terminal block solutions. Ideal for power connectors and electronic component integration in various electronic systems.
Explore more in the Pluggable Terminal Blocks category at EnvMart for robust industrial and electronic connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is designed for a voltage rating of 300V AC, making it suitable for robust electrical applications.
The current rating for this model is 15A, which allows it to handle substantial electrical loads.
It accommodates wire sizes ranging from a minimum of 0.05 mm² (12 AWG) to a maximum of 3 mm² (30 AWG).
The pitch of this terminal block is 5.08 mm, which is standard for many PCB applications.
This terminal block supports a solder wire connection method, ensuring secure and stable electrical contacts.
The housing is made of nylon, which provides durability and electrical insulation.
This model features 4 contacts, allowing for multiple connections in a single unit.
The terminal block has a straight orientation, facilitating easier installation in electronic assemblies.
It is manufactured in Italy, ensuring compliance with high-quality standards.
This model is suitable for use in industrial, electronic manufacturing, and PCB assembly applications.
The connector gender for this terminal block is female, which is typical for pluggable designs.
The pluggable design enables efficient installation and maintenance in complex circuits, simplifying the wiring process.
