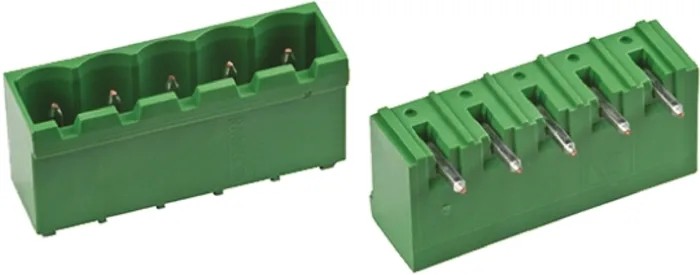

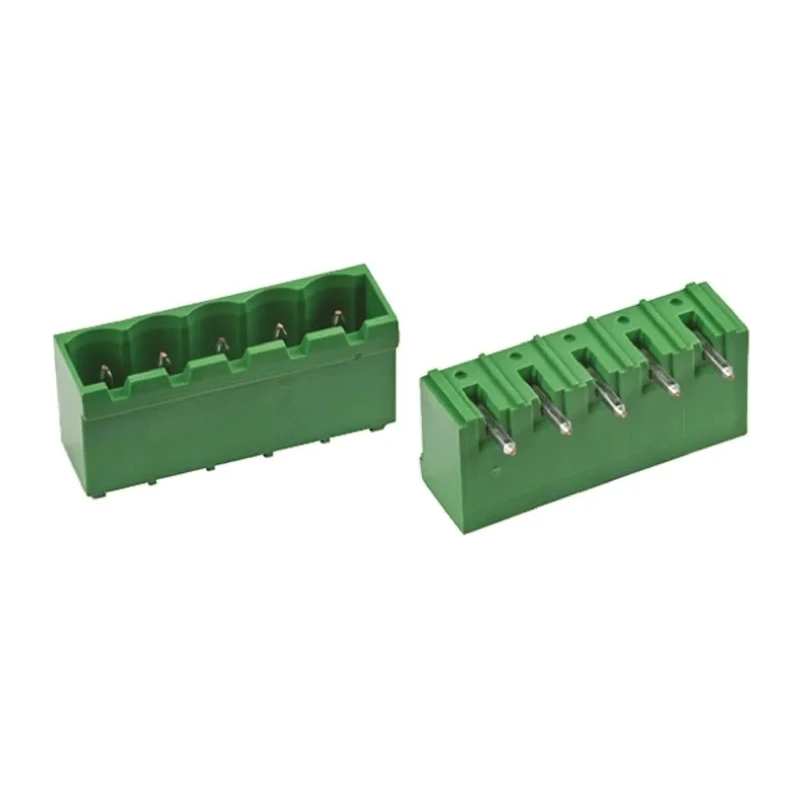

TE Connectivity Buchanan Series Pluggable Terminal Block 5-Contact 5.08 mm Pitch 1 Row 300V 15A 796638-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Model | 796638-5 |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0135PBrand: TE ConnectivityManufacturers Part No.: 796638-5 |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Constructed using durable green polyamide material for housing.
- Supports wire sizes ranging from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
- Rated for current up to 15A and voltage up to 300V.
- Features right-angle orientation with solder wire connection method.
- Compact design ideal for PCB mounting applications.
- Part of the Buchanan series for standard pluggable terminal blocks.
- Suitable for industrial, electronic, and manufacturing connector applications.
- Ensures easy and secure pluggable connection in electrical circuits.
Product Description
TE Connectivity 796638-5 Buchanan Series pluggable terminal block provides a 5-contact, 5.08 mm pitch, and 1-row design suitable for robust electronic and industrial applications. The green polyamide housing ensures mechanical strength and electrical insulation while supporting wire sizes from 0.05 mm² to 3 mm² (12 AWG to 30 AWG). Rated for 15A current and 300V voltage, this terminal block uses a right-angle orientation and solder connection method for reliable PCB mounting.
This component is designed to facilitate efficient and secure wire connections in power and electronic connector assemblies. Its pluggable design allows easy maintenance and replacement, improving production efficiency in manufacturing environments. The familiar Buchanan series ensures compatibility with a wide range of terminal block applications.
Ideal for use in industrial automation, electronic assembly, HVAC controls, and power distribution circuits, this terminal block meets UL 94V-0 flammability standards, enhancing safety and durability. Its compact 1-row layout with 5 contacts fits into tight PCB layouts while maintaining performance.
Durable polyamide housing ensures electrical insulation and mechanical protection. Supports a wide range of wire sizes from 12 AWG to 30 AWG ensuring versatility. Rated for 15 Amps maximum current and 300 Volts for dependable electrical performance.
Right-angle orientation and solder wire connection simplify PCB integration. Pluggable design enables quick installation, maintenance, and rework in assemblies. Commonly applied in industrial, laboratory, automotive, and commercial electrical systems.
Each unit is supplied in a bag ready for easy insertion into machinery, improving production workflow and efficiency. This reliable component from TE Connectivity is engineered for long service life and consistent electrical connectivity.
Explore the full range of TE Connectivity Pluggable Terminal Blocks on EnvMart for diverse industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 15A.
It has a voltage rating of 300V.
This model supports wire sizes ranging from 0.05 mm² to 3 mm² (12 AWG to 30 AWG).
The pitch of the contacts is 5.08 mm.
It uses a solder wire connection method.
This terminal block features 5 contacts.
It has a right-angle orientation.
The housing is constructed from durable green polyamide material.
It is suitable for industrial automation, electronic assembly, HVAC controls, and power distribution circuits.
This terminal block has a compact design with 1 row.
The country of origin for this terminal block is India.
The connector gender is female.
