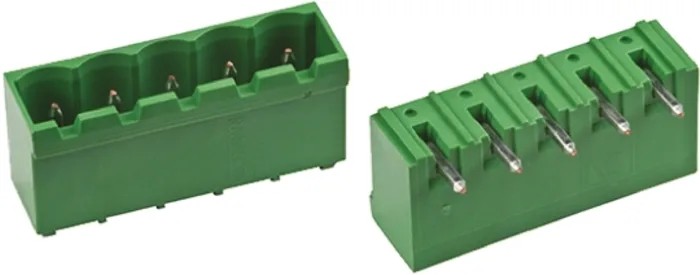

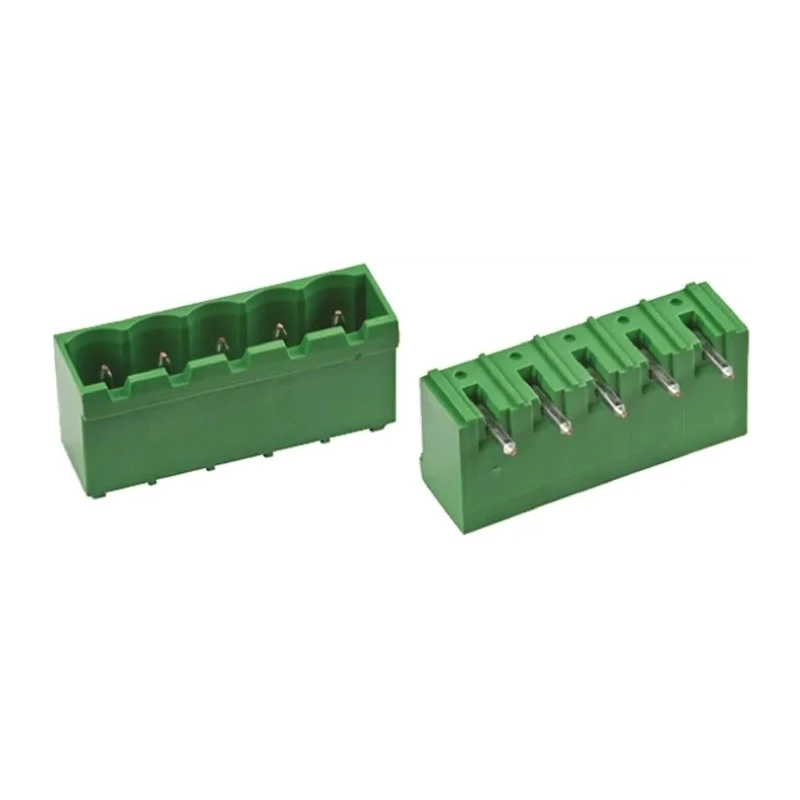

TE Connectivity Buchanan Series Pluggable Terminal Block, 5-Contact, 5.08 mm Pitch, 1 Row, 15A, 300V, Female 796638-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Model | 796638-5 |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0135Brand: TE ConnectivityManufacturers Part No.: 796638-5 |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Solder |
Key Features
- Operates at a current rating of 15A and voltage of 300V.
- Constructed with durable green polyamide housing for insulation and safety.
- Supports wire sizes from 0.05 mm² to 3 mm², compatible with AWG12 to AWG30.
- Features a female connector with a right-angle orientation for compact PCB mounting.
- Employs solder wire connection method ensuring secure and stable connection.
- Complies with UL 94V-0 flame retardant standards for enhanced safety.
- Designed as part of the Buchanan series providing compatibility across similar products.
- Ideal for industrial, electronic, and power connector applications requiring pluggable terminal blocks.
Product Description
TE Connectivity 796638-5 Buchanan Series pluggable terminal block is engineered for efficient and secure electrical connections in various applications. Featuring a 5-contact layout with a 5.08 mm pitch and a single-row configuration, it supports currents up to 15A and operates safely at 300V. The terminal block's green polyamide housing ensures robust insulation and flame resistance compliant with UL 94V-0 standards.
The female connector design with right-angle orientation is optimized for space-saving PCB layouts and ease of assembly. It accommodates a wide range of wire sizes, from 0.05 mm² to 3 mm² (AWG12 to AWG30), utilizing solder as the wire connection method to guarantee reliable terminations.
As part of the Buchanan series, this terminal block ensures interchangeability and consistency within industrial and electronic power connector systems. The product is ideal for industrial, manufacturing, laboratory, and commercial electrical applications requiring Pluggable Terminal Blocks with quality and durability.
Operates at 15A current and 300V voltage rating. Green polyamide housing provides flame retardant safety and insulation. Supports wire sizes between 0.05 mm² and 3 mm² with solder connection method. Right-angle female connector suitable for compact PCB applications.
Complies with UL 94V-0 approval ratings ensuring flame retardancy. Part of the widely recognized Buchanan series for compatibility and reliability. Supports various industrial and electronics uses including power connections.
This terminal block is a well-engineered solution for designers and engineers seeking durable, safe, and efficient pluggable connectors in the electronics and electrical industry. Browse more terminal blocks and connectors in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a current rating of 15A and a voltage rating of 300V.
This model features a pitch of 5.08 mm and has 5 contacts.
It supports wire sizes ranging from 0.05 mm² to 3 mm², compatible with AWG12 to AWG30.
The terminal block employs a solder connection method for secure wire terminations.
The housing is constructed from green polyamide, providing insulation and safety.
This terminal block features a right-angle orientation, suitable for compact PCB mounting.
Yes, it complies with UL 94V-0 flame retardant standards for enhanced safety.
The terminal block is manufactured in India.
It is part of the Buchanan series, ensuring compatibility with similar products.
This model is designed with a single-row configuration.
It is ideal for industrial, manufacturing, laboratory, and commercial electrical applications requiring pluggable terminal blocks.
The terminal block is green in color.
